1/2T 3Ph,230 V/460V Elec Trolley
(Pack of
1)
SKU:ZZ25023H25 Item#: ZZ25023H25

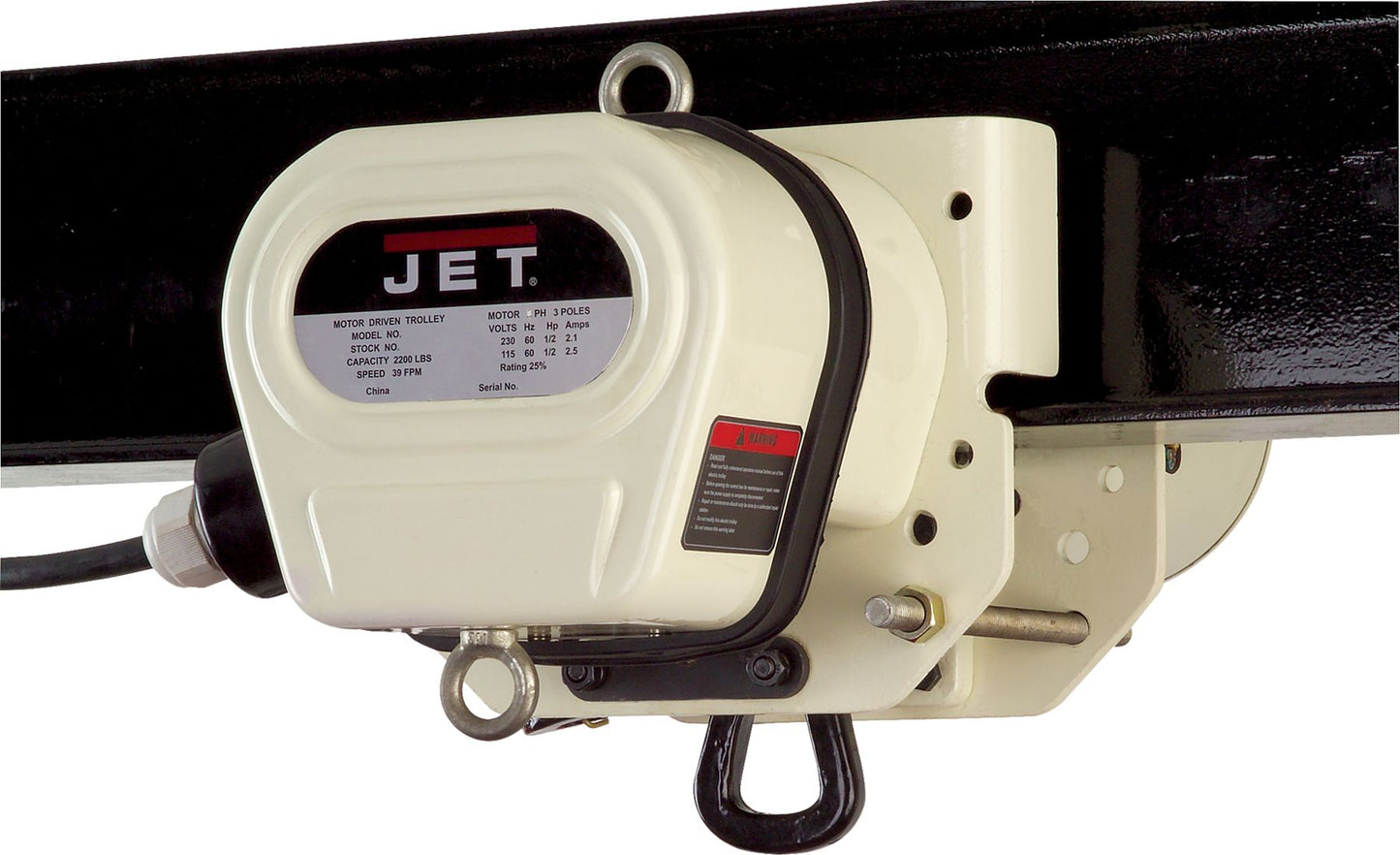

JET® ET Electric Trolleys are available in capacities from 1 to 5 tons and in single or three phase electrical configurations. JET electric trolleys are designed to give single pendant control convenience.
• Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
• Solenoid-operated traveling brake provides precise user control
• Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
• Certification- Load tested to 125% of capacity with certificate
Product Description
JET® ET Electric Trolleys are available in capacities from 1 to 5 tons and in single or three phase electrical configurations. JET electric trolleys are designed to give single pendant control convenience.• Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
• Solenoid-operated traveling brake provides precise user control
• Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
• Certification- Load tested to 125% of capacity with certificate
Technical Specifications
| Item#: | ZZ25023H25 |
|---|---|
| Style | 3 Phase |
| Series | ET |
| Load Capacity | 1,100 lb |
| Beam Flange Width | 3 - 5 " |
| Motor Output | 1/2 HP |
| Voltage | 230/460 V |
| Duty Cycle | 25% |
| Curve Radius Min. | 43-5/16 " |
| Travel Speed (fpm) | 39-1/3 |
| Hook Mount Head Room | 6-7/8 " |
| UNSPSC #: | 27000000 |
| TAA Compliant: | No |
