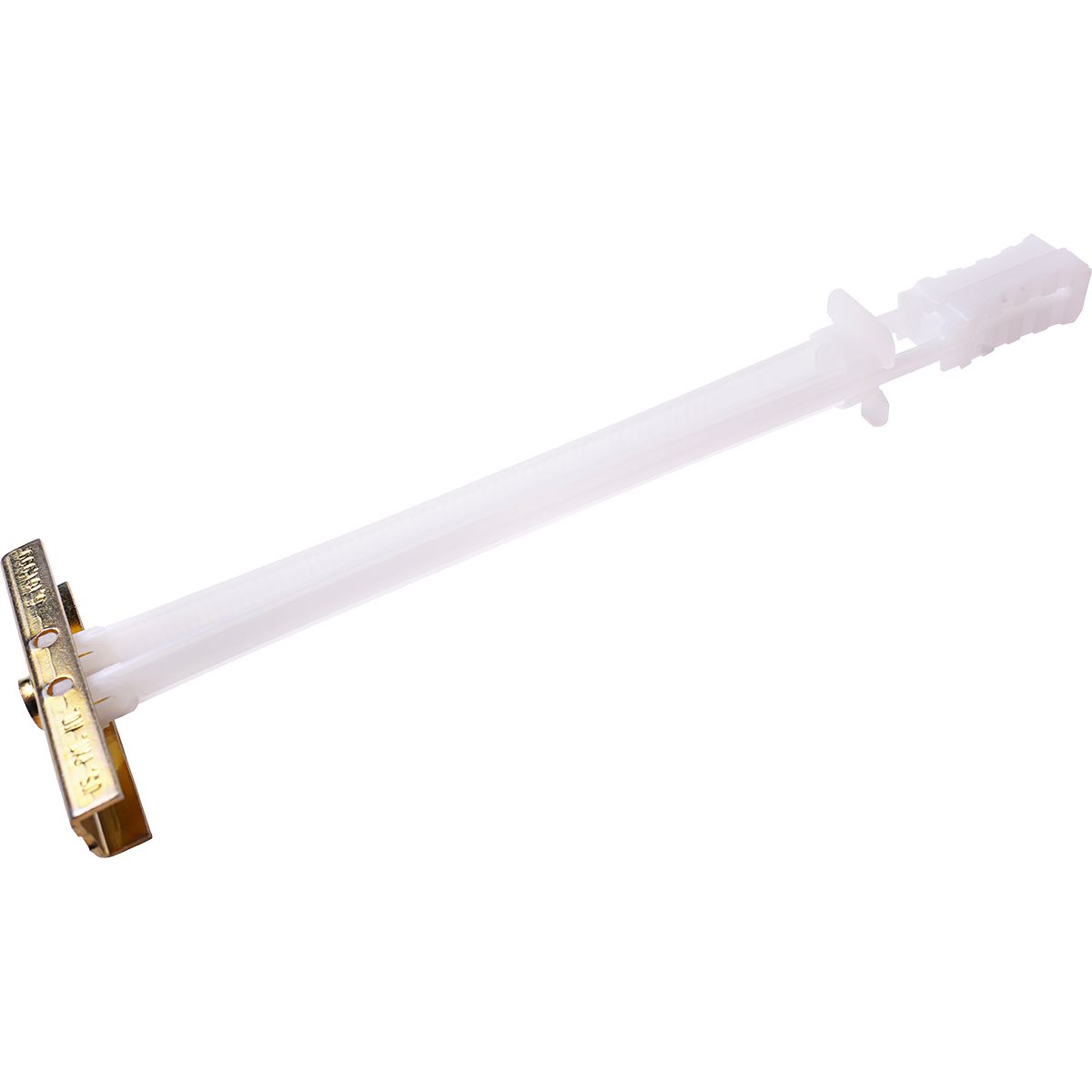

1/4-20 Joggle-A-Toggle Plus Wall Anchor
(Pack of
25)
SKU:DY09700800 Item#: DY09700800
• Pre-installs without a bolt
• Enables removal of bolt/fixture without anchor falling behind wall
• Leaves clean reinforced hole when not being used
• Handy pull ring makes installation and clipment a breeze
• Material: High-density plastic and zinc-plated 1010 cold-rolled steel
• Grip Range: 3/8" – 2-1/2"
• To establish length of bolt needed, add fixture thickness and wall/ceiling thickness to 1/2”
Frequently Bought Together
Masonry Anchor TORX® Flat Head Steel 1/4 x 1-1/4"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 5/8 x 4-1/4"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Wing Type Toggle Bolt Steel #6-32 x 3"
Couldn't load pickup availability
Wing Type Toggle Bolt Round Head 3/8-16 x 4"
Couldn't load pickup availability
6" x 9" Non-Woven Hand Pad, Green, Medium
Couldn't load pickup availability
6" x 9" Non-Woven Hand Pad, Green, Medium
Couldn't load pickup availability
Product Description
• Pre-installs without a bolt• Enables removal of bolt/fixture without anchor falling behind wall
• Leaves clean reinforced hole when not being used
• Handy pull ring makes installation and clipment a breeze
• Material: High-density plastic and zinc-plated 1010 cold-rolled steel
• Grip Range: 3/8" – 2-1/2"
• To establish length of bolt needed, add fixture thickness and wall/ceiling thickness to 1/2”
Technical Specifications
| Item#: | DY09700800 |
|---|---|
| Type | Toggle Bolt Anchor |
| Size | 1/4-20 " |
| Diameter | 1/4 " |
| Material | Steel/Plastic |
| Thread | Coarse |
| Thread Pitch | 20 |
| Drill Size | 1/2 " |
| Grip Range | 3/8" - 2-1/2" (9mm - 64mm) |
| Pullout Ultimate Average Lbs.Drywall Thickness 5 / 8" | 306 lb |
| Tensile Proof Test Load In Concrete | 925 lb |
| Pullout Ultimate Average Lbs.Steel Thickness 1 / 2" | 1,283 lb |
| Bolt Size | 1/4-20 " |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.79 lb |
