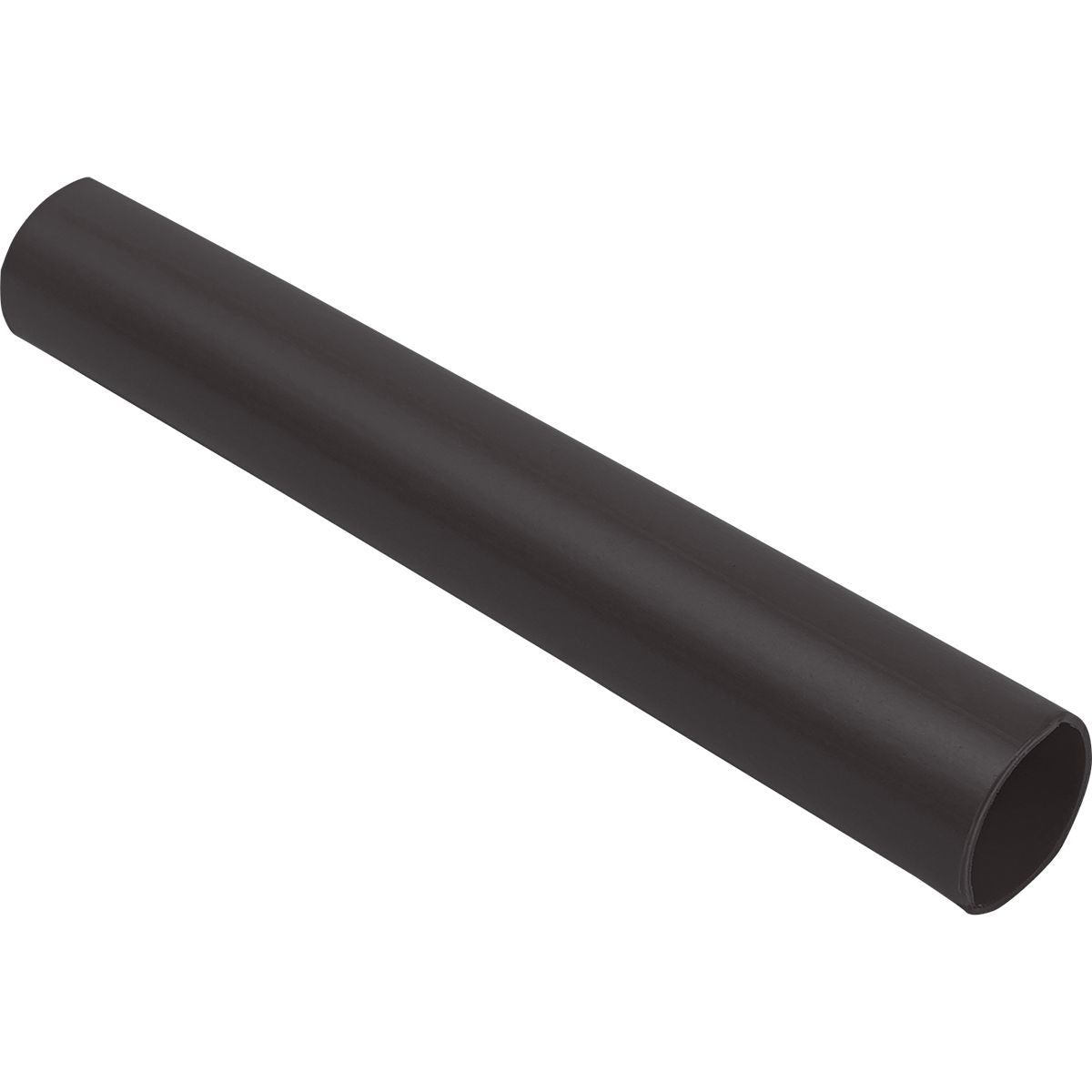

1 x 3" Black Thermapod Heat Shrink Tube
(Pack of
10)
SKU:DY21873749 Item#: DY21873749
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
MINI Fuse 30A Green
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
.225X6#1 SEMIRIGID SHRINK TUB/DLG-306
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Red
Couldn't load pickup availability
Heat Shrink Tubing 24 to 22 AWG Clear
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/8-27
Couldn't load pickup availability
2" Dia. X 1" Wide, Flap Wheel, 80 Grit, 1/4" Shank
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/8-27
Couldn't load pickup availability
2" Dia. X 1" Wide, Flap Wheel, 80 Grit, 1/4" Shank
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Clear
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.35" ID 25'
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21873749 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 4/0- 3/0 AWG |
| Diameter | 1 " |
| Length | 3 " |
| Color | Black |
| I.D. Before Shrinkage | 1 " |
| I.D. After Shrinkage | 0.4 " |
| Shrink Ratio | 3:1 |
| Dielectric Strength | 500 V/mil |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | SAE-AMS-DTL - 23053/4, CL-1 |
| Description | Thermapod Heat Shrink Tubing Black 1 x 3" |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.225 lb |
