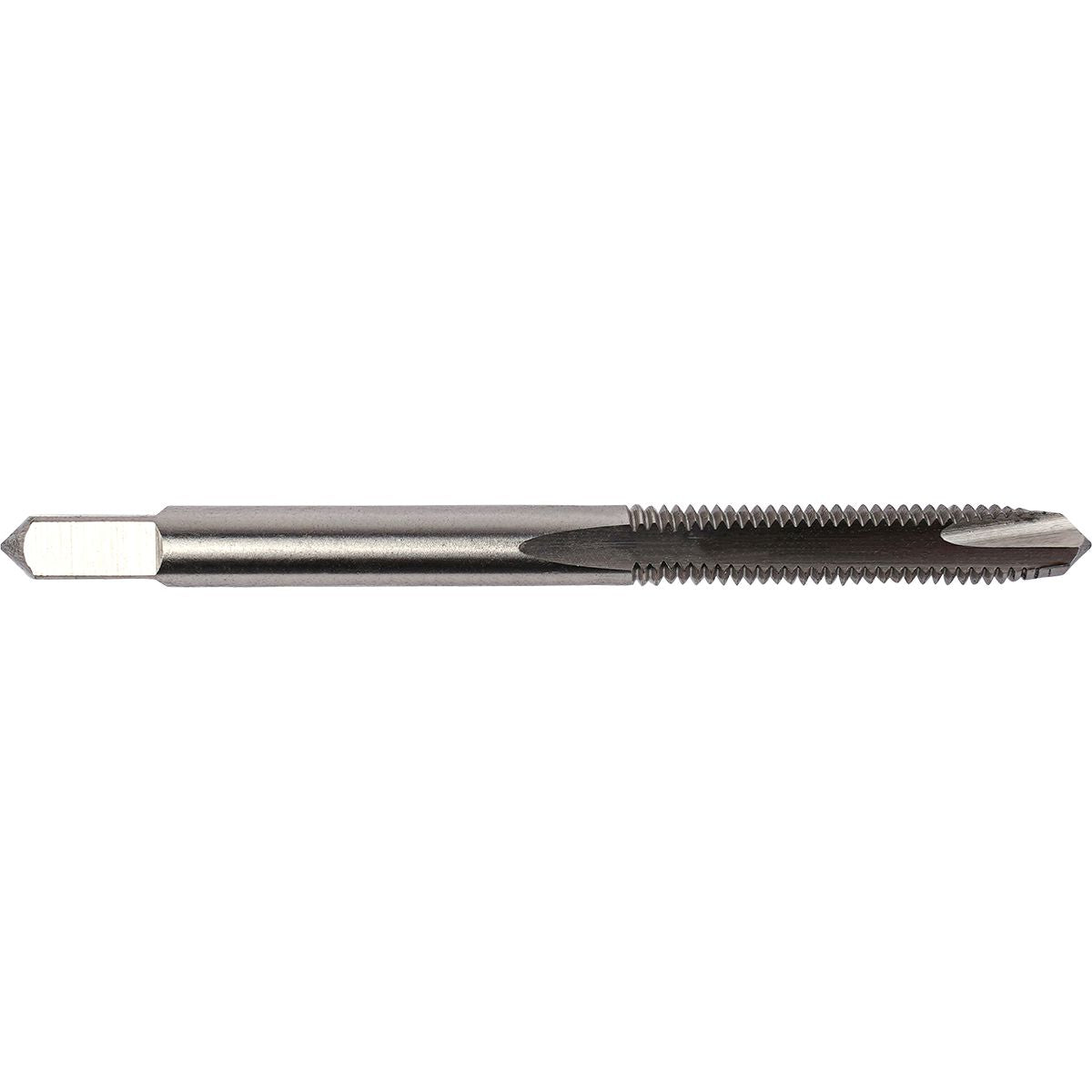

#10-32 Plug Hand Tap, Spiral Point, HSS
(Pack of
1)
SKU:PM08230402 Item#: PM08230402
High Speed Steel (HSS) Taps last longer than carbon steel taps and cut a broader variety of metals, including: carbon steel, low-alloy steel, 300-series stainless steel, aluminum, copper, brass, bronze and more. Using tapping fluid is always recommended.
• Molybdenum Rich Tool Steel - Delivers longer life and stronger torsion strength to resist breaking
• Spiral Point - Applied to all sizes of PLUG taps to push cuttings ahead of the tap
• Precision Ground Threads - ASME B94.9, Thread Class Limit: H2 (#6, 8, 10), H3 (#12 and above)
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
1/4" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/16"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/32"
Couldn't load pickup availability
4-Flute HSS Hand Tap Kit 3/8-16
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap M8 x 1.25
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 5/8-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Cryotap 1/4"-20 Taper Hand Tap
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 5/16-18
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5/16-18
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Maroon
Couldn't load pickup availability
Swivel Head Ratchet 1/2 Drive
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Swivel Head Ratchet 1/2 Drive
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Product Description
High Speed Steel (HSS) Taps last longer than carbon steel taps and cut a broader variety of metals, including: carbon steel, low-alloy steel, 300-series stainless steel, aluminum, copper, brass, bronze and more. Using tapping fluid is always recommended.• Molybdenum Rich Tool Steel - Delivers longer life and stronger torsion strength to resist breaking
• Spiral Point - Applied to all sizes of PLUG taps to push cuttings ahead of the tap
• Precision Ground Threads - ASME B94.9, Thread Class Limit: H2 (#6, 8, 10), H3 (#12 and above)
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | PM08230402 |
|---|---|
| Type | Machine Screw |
| Style | Plug |
| Material | High Speed Steel |
| Diameter | #10 |
| Decimal Equivalent | 0.1935 " |
| Pitch | 32 |
| Flutes | 2 |
| Thread Length | 7/8 " |
| H Limits | 2 |
| Recommended Drill Size | No. 21 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.125 lb |
