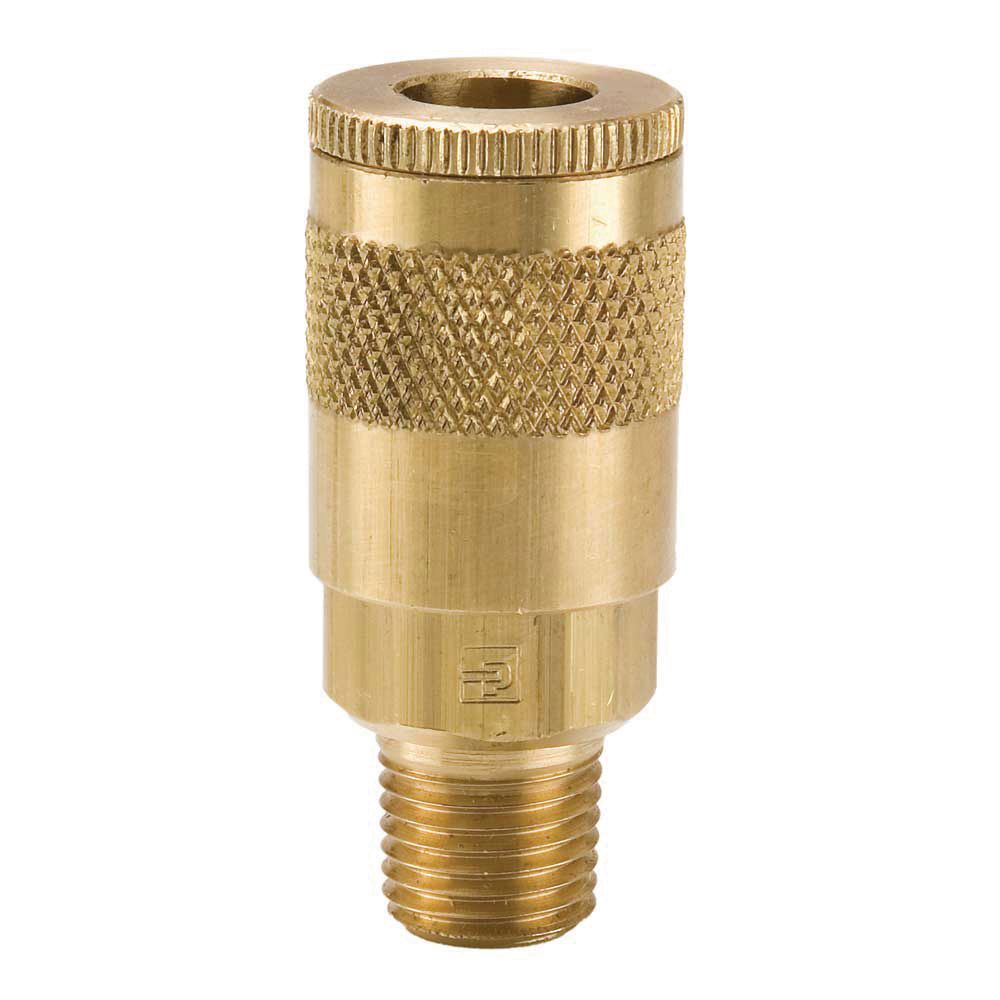

10 Series Coupler, Brass, Tru-Flate Design, 300PSI, Male NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:1268909 Item#: 1268909
Parker’s 10 Series Pneumatic Couplers are the original Tru-Flate design. 1/4” body size has a brass body, while standard 3/8” and 1/2” body sizes have all steel construction.
• Integral sleeve guard resists accidental disconnection
• Tubular valve delivers high air flow with minimal pressure drop
• 3/8” and 1/2” size options include brass body with steel sleeve
• Brass body option with stainless steel springs and locking balls is available for added corrosion resistance
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Frequently Bought Together
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
1/4" SCHRADER NIPPLE, 1/4" NPTF
Couldn't load pickup availability
Garden Hose End Brass 5/8" x 3/4-11-1/2
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Garden Hose Cap Brass 3/4-11-1/2
Couldn't load pickup availability
Garden Hose End Brass 5/8" x 3/4-11-1/2
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4 x 3/8"
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Product Description
Parker’s 10 Series Pneumatic Couplers are the original Tru-Flate design. 1/4” body size has a brass body, while standard 3/8” and 1/2” body sizes have all steel construction.• Integral sleeve guard resists accidental disconnection
• Tubular valve delivers high air flow with minimal pressure drop
• 3/8” and 1/2” size options include brass body with steel sleeve
• Brass body option with stainless steel springs and locking balls is available for added corrosion resistance
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Technical Specifications
| Item#: | 1268909 |
|---|---|
| Manufacturer Model #: | B12 |
| Type | Coupler |
| Style | Tru-Flate |
| Body Size | 1/4 " |
| Thread Style | Male NPTF |
| Thread Size | 1/4-18 |
| Working Pressure | 300 PSI |
| Material | Brass |
| Length | 2.05 " |
| Seal Material | Nitrile |
| Hex Size | 0.75 " |
| Locking Mechanism | 4 Ball |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
Product Restrictions
