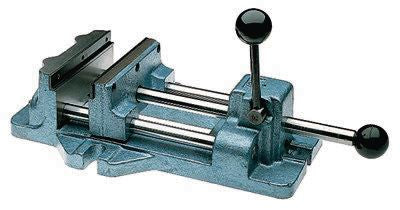

1204 4" DRILL PRESS VISECAM ACTION
(Pack of 1)

Item#: 1224800

Wilton®

• Simple push or pull on the center bar knob sets the jaw in position
• Easy press locking lever cams the jaw ahead 3/32", existing a holding pressure that is adjustable from 400 to 1100 lbs
• Recessed parallel steel jaw inserts level work, and can be removed to accommodate your jig and fixture components
• The base is designed for clear through drilling applications
• For added durability, bars and locking mechanisms are hardened and ground
• The unique top locking lever can be raised or lowered to tighten or loosen against the workpiece

Read More

Frequently Bought Together


#540A 10" STD CARRIAGE CLAMP

Item#: 1230376
No product placeholder

Tradesman Vise, 4.5"

Item#: ZZ23825H25

10" Spoonbill Flatface Lock Clamp

Item#: DY89840610

10" Dual Jaw Adj and Pipe Wrench

Item#: DY89310225

1000V Insulated Screwdriver Quick Disconnect Set 13 piece

Item#: DY81100600

Universal Socket Set, Deep, 1/2" Drive, 24pc

Item#: DY89310039

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

11Pc Lock and Load Hammer Set

Item#: DY81420015

3Pc Adjustable/Pipe Wrench Set

Item#: DY89310230

Jobber Length Drill Bit HSS 1/2"

Item#: 84749
No product placeholder

6"Jaw Width Rubber Face Jaw Cap

Item#: ZZ24646H25
No product placeholder

Copper Jaw Caps F/6" Jaw Width

Item#: ZZ23772H25
No product placeholder

8" Wltn Cam Action Drill Press Vise

Item#: ZZ24045H25

Product Description

• Simple push or pull on the center bar knob sets the jaw in position
• Easy press locking lever cams the jaw ahead 3/32", existing a holding pressure that is adjustable from 400 to 1100 lbs
• Recessed parallel steel jaw inserts level work, and can be removed to accommodate your jig and fixture components
• The base is designed for clear through drilling applications
• For added durability, bars and locking mechanisms are hardened and ground
• The unique top locking lever can be raised or lowered to tighten or loosen against the workpiece

Technical Specifications

Item#: 1224800
Type Drill Press Vise
Jaw Opening 4-11/16 "
Jaw Width 4 "
Throat Depth 1 5/16 "
Jaw Material Steel
Material Ductile Iron
Locking Type Cam Locking Mechanism
Nut Type Rapid Acting
UPC 662755043628
UNSPSC #: 27000000
TAA Compliant: Yes
