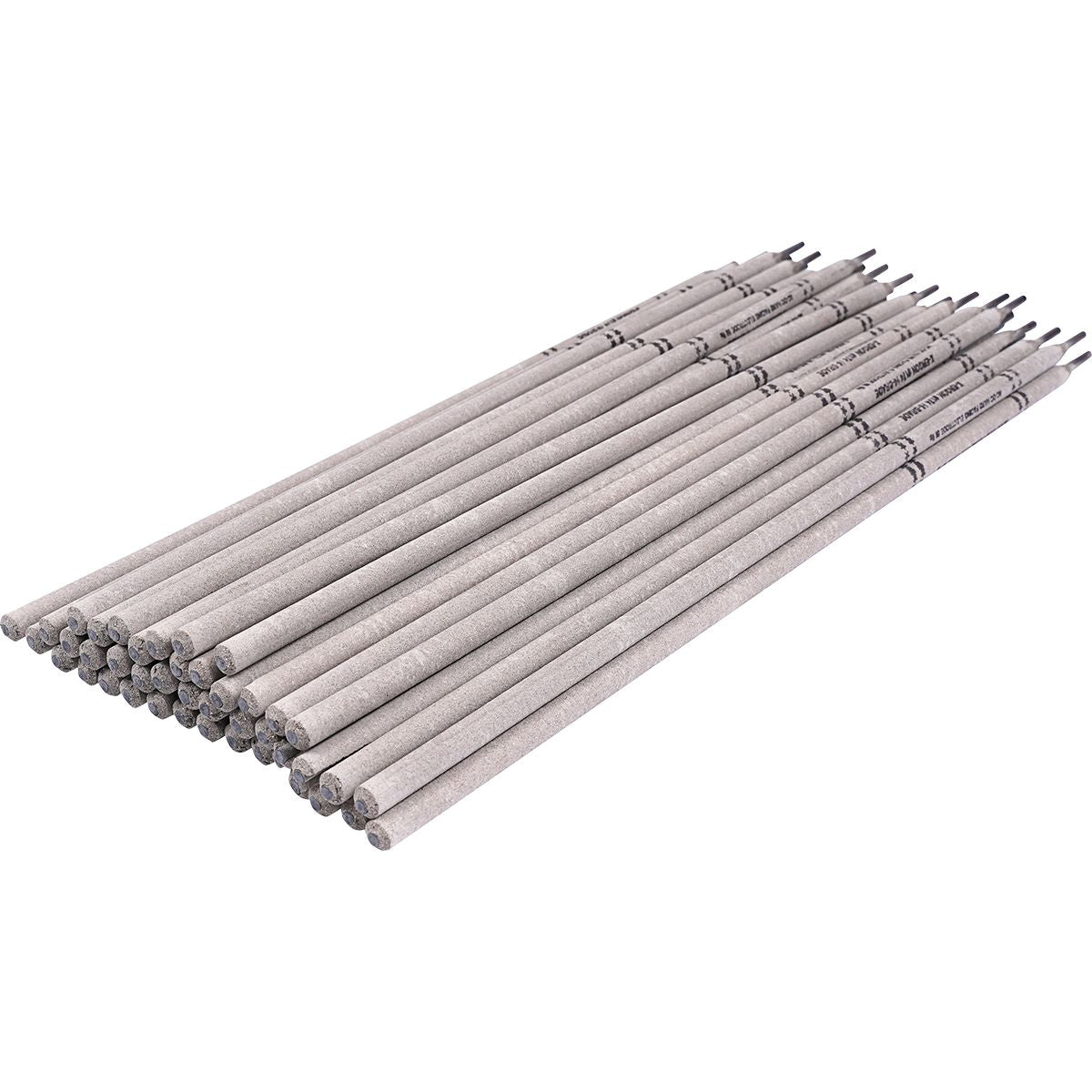

174 Gray High Abrasion Moderate Impact 3/16
(Pack of
5.0)
Produces iron-chromium carbides, which exhibit exceptional hardness and abrasive wear resistance.
• High Deposition Rate – Economical for fast overlays
• High Abrasion Resistance – Particularly sliding and scratching modes of abrasion
• Impact-Resistant – Handles moderate levels of impact
• Resists hot wear to 1000°F/586°C
• Smooth running
• Deposits will cross check crack for stress relief
• For use on carbon and abrasion-resistant alloy steels including manganese steels
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 171.17 mm³ vol. loss
Frequently Bought Together
Product Description
Produces iron-chromium carbides, which exhibit exceptional hardness and abrasive wear resistance.• High Deposition Rate – Economical for fast overlays
• High Abrasion Resistance – Particularly sliding and scratching modes of abrasion
• Impact-Resistant – Handles moderate levels of impact
• Resists hot wear to 1000°F/586°C
• Smooth running
• Deposits will cross check crack for stress relief
• For use on carbon and abrasion-resistant alloy steels including manganese steels
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 171.17 mm³ vol. loss
Technical Specifications
| Item#: | EG17420000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 3/16 " |
| Base Metal | Steel To Steel |
| Hardness | 58 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.17 lb |
