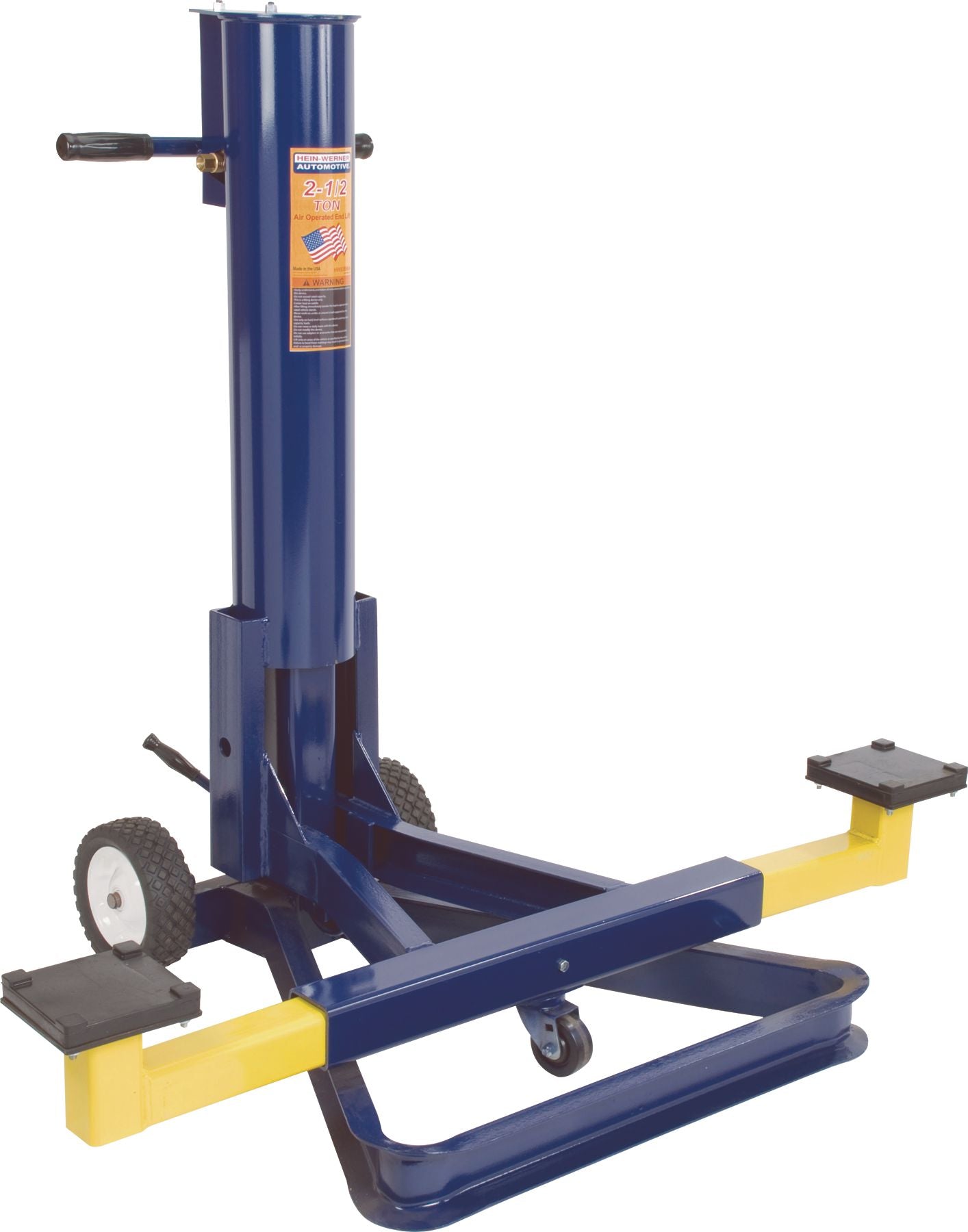

2 1/2 Ton End Lift
(Pack of
1)
SKU:ZZ26713I92 Item#: ZZ26713I92
• Three-way heavy duty brass air valve provides precision control when lifting or lowering a vehicle
• Safety latch design provides five different automatic safety lock positions to prevent unintentional lowering of load
• Adjustable lifting arm can be extended to desired position
• Front swivel caster wheel and two 8″ diameter rear tires
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Item#: 94612
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Item#: 1368141
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
Product Description
• Three-way heavy duty brass air valve provides precision control when lifting or lowering a vehicle• Safety latch design provides five different automatic safety lock positions to prevent unintentional lowering of load
• Adjustable lifting arm can be extended to desired position
• Front swivel caster wheel and two 8″ diameter rear tires
Technical Specifications
| Item#: | ZZ26713I92 |
|---|---|
| Manufacturer Model #: | HW93696A |
| Type | End Lift |
| Capacity | 2-1/2 ton (US) |
| Minimum Height | 10 1/4 " |
| Maximum Height | 35 3/8 " |
| Distance (Lifting to Front of Saddle) | 19 " |
| Minimum Air Pressure for Rated Load | 200 PSI |
| Power Raise | 24 1/2 " |
| Saddle Spread | 23 1/4 - 41 1/4 " |
| UNSPSC #: | 27000000 |
| TAA Compliant: | Yes |
