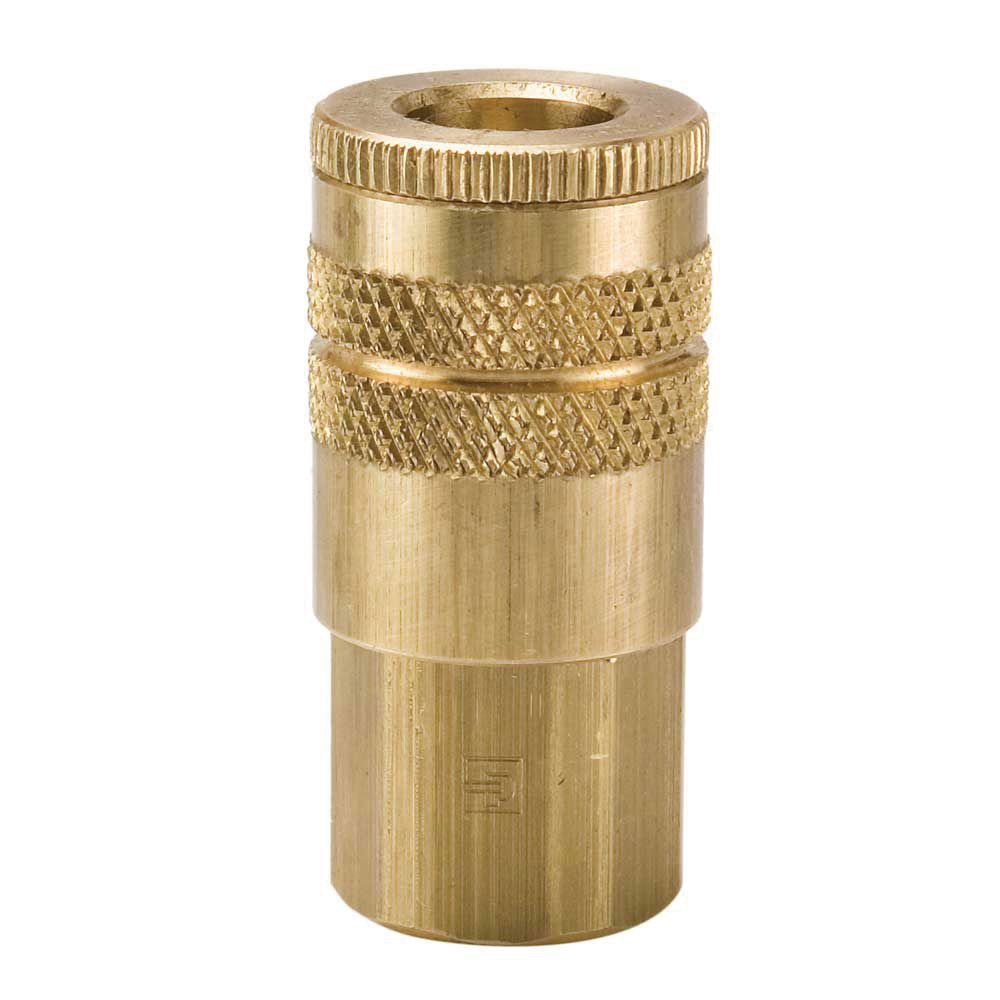

20 Series Coupler, Brass, Standard Industrial, 300PSI, Female NPTF, 1/4" Body Size, 1/8-27 Thread Size
(Pack of
1)
SKU:1268511 Item#: 1268511
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.
• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Frequently Bought Together
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Item#: DY89310247
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Item#: 88441
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Item#: A100
Couldn't load pickup availability
Product Description
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Technical Specifications
| Item#: | 1268511 |
|---|---|
| Manufacturer Model #: | B23A |
| Type | Coupler |
| Style | Standard Industrial |
| Body Size | 1/4 " |
| Thread Style | Female NPTF |
| Thread Size | 1/8-27 |
| Working Pressure | 300 PSI |
| Material | Brass |
| Length | 1.83 " |
| Seal Material | Nitrile |
| Hex Size | 0.75 " |
| Locking Mechanism | 4 Ball |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
