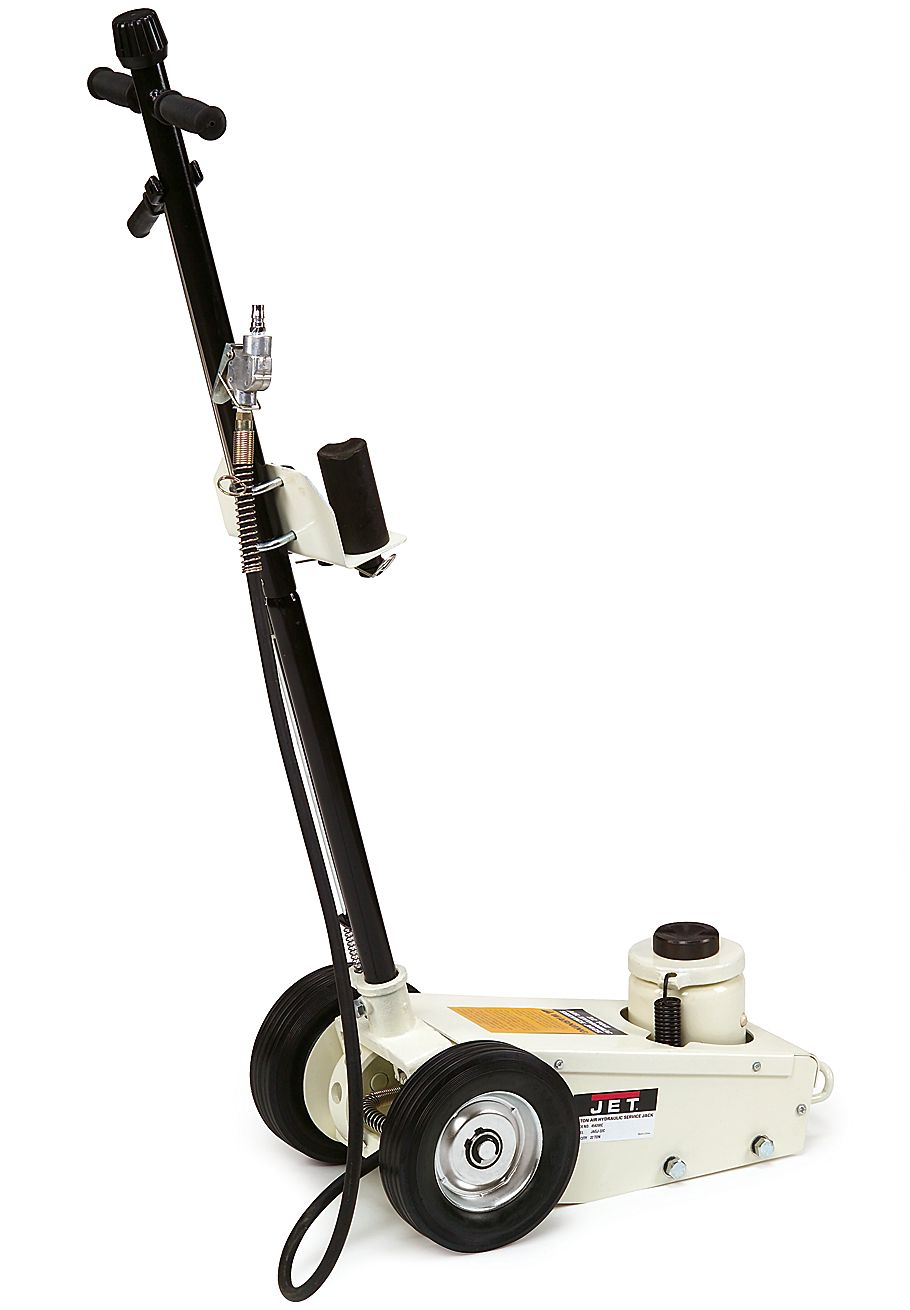

22Ton Air/Hydraulic Service Jack
(Pack of
1)
SKU:ZZ26287H25 Item#: ZZ26287H25
JET JASJ Series Service Jacks are rated to 22 tons and a maximum height of 20 inches making it the perfect complement to any heavy- duty truck or automotive shop. JET JASJ Series Service Jacks feature a labor-saving air pump and high-speed cylinder piston.
• Operated manually or with the assistance of an air source to lift the maximum 22 ton capacity increasing versatility
• Three screw height extensions reach a maximum height of 20-5/8 inches for multiple applications.
• Labor saving pump with connection to a pneumatic source for increased lifting speeds
• Wide stance steel frame with reinforced side plates increases stability
• Minimum requirements for performance are 90 to 150 PSI air pressure and a 3 HP compressor
• Complies with ANSI/ASME PALD-10 standards
Product Description
JET JASJ Series Service Jacks are rated to 22 tons and a maximum height of 20 inches making it the perfect complement to any heavy- duty truck or automotive shop. JET JASJ Series Service Jacks feature a labor-saving air pump and high-speed cylinder piston.• Operated manually or with the assistance of an air source to lift the maximum 22 ton capacity increasing versatility
• Three screw height extensions reach a maximum height of 20-5/8 inches for multiple applications.
• Labor saving pump with connection to a pneumatic source for increased lifting speeds
• Wide stance steel frame with reinforced side plates increases stability
• Minimum requirements for performance are 90 to 150 PSI air pressure and a 3 HP compressor
• Complies with ANSI/ASME PALD-10 standards
Technical Specifications
| Item#: | ZZ26287H25 |
|---|---|
| Manufacturer Model #: | JASJ-22C |
| Actuation | Manual |
| Capacity | 22 ton (US) |
| Minimum Height | 8-1/4 " |
| Maximum Height | 20-5/8 " |
| Handle Length | 41-3/8 " |
| Saddle Diameter | 2-5/8 " |
| Jack Size Length | 41-3/8 " |
| Jack Size Width | 12-1/4 " |
| Minimum Air Pressure for Rated Load | 90 - 150 PSI |
| UNSPSC #: | 27000000 |
| TAA Compliant: | No |
