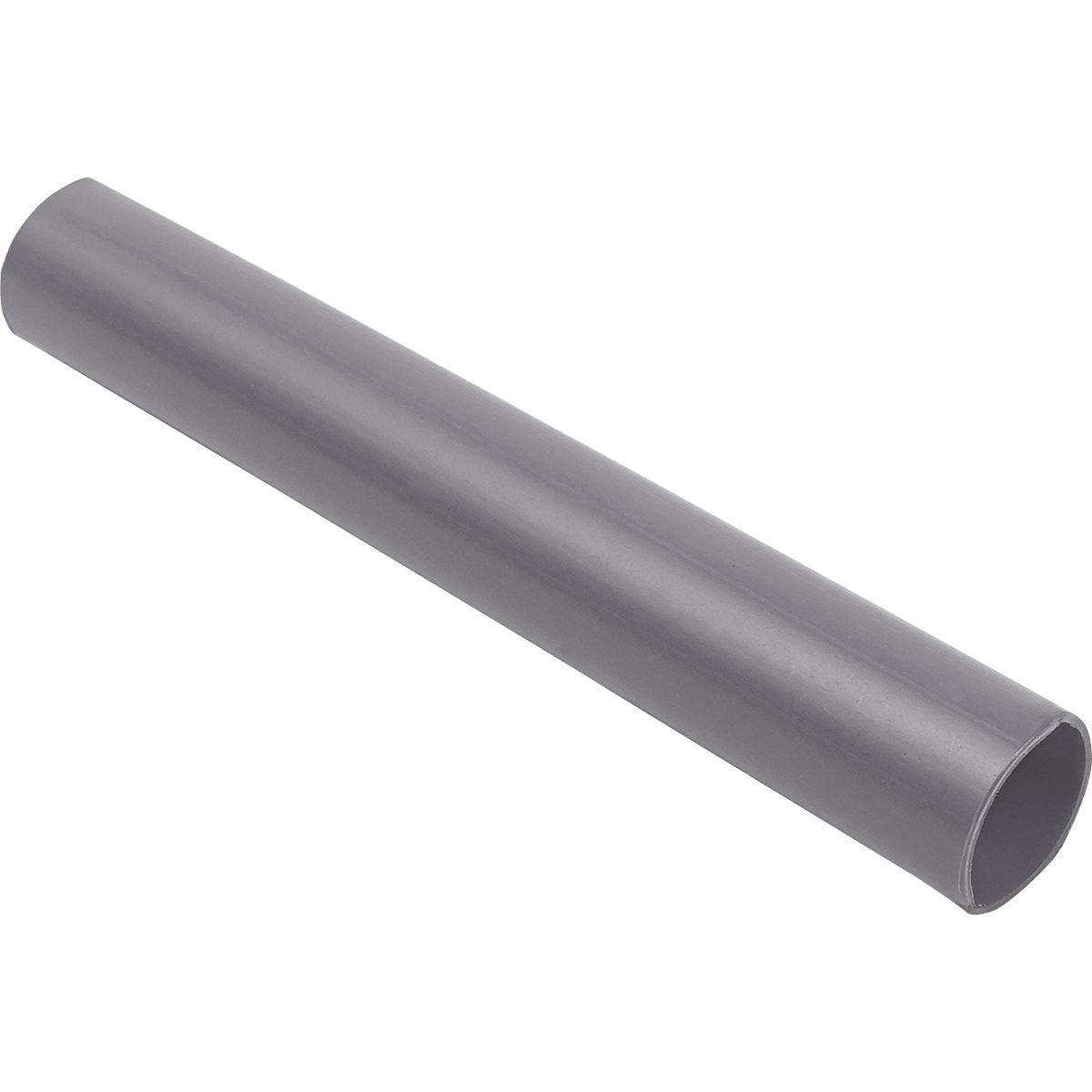

3/16 x 3'' Gray Thermapod Sealflex Heat Shrink Tube
(Pack of
10)
SKU:DY21880004 Item#: DY21880004
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Red
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Red
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 12 to 10 AWG Yellow
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.25" ID
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.75" ID 25'
Couldn't load pickup availability
Heat Shrink Tubing 4 to 2/0 AWG Black
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21880004 |
|---|---|
| Style | Dual Wall |
| Wire Gauge Coverage | 20-18 AWG |
| Diameter | 3/16 " |
| Length | 3 " |
| Color | Gray |
| I.D. Before Shrinkage | 0.187 " |
| I.D. After Shrinkage | 0.06 " |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | AMS-DTL - 23053/4, CL-1, UL E194625 |
| Description | Thermapod Sealflex Heat Shrink Tubing 3/16 x 3 Gray |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.02 lb |
