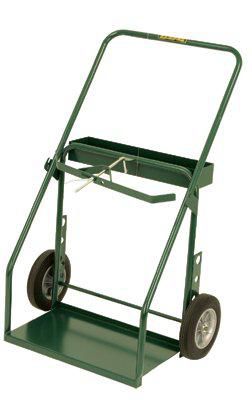

312B-25 Cylinder Truck with Belly Band
(Pack of
1)
SKU:1326788 Item#: 1326788
• Most popular and versatile large cylinder truck
• Continuous handle gives truck frame more rigidity
• Safer with no sharp projections and provides a push bar or hand grip for two when necessary
• High floor clearance when moving over rough surfaces or cluttered areas
• Angle legs remove load from the wheel when truck is stationary
• Handles medium and large cylinders
• Optional feature is a fire barrier
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Item#: 1368141
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
Product Description
• Most popular and versatile large cylinder truck• Continuous handle gives truck frame more rigidity
• Safer with no sharp projections and provides a push bar or hand grip for two when necessary
• High floor clearance when moving over rough surfaces or cluttered areas
• Angle legs remove load from the wheel when truck is stationary
• Handles medium and large cylinders
• Optional feature is a fire barrier
Technical Specifications
| Item#: | 1326788 |
|---|---|
| Manufacturer Model #: | 312B-25 |
| Type | Series 300 |
| Number of Cylinders | 2 |
| Base Plate | 13 x 24 " |
| Wheel Type | Semi-Pneumatic |
| Wheel Size | 12 " |
| Wheel Width | 1 3/4 " |
| Oxygen Cylinder Size | 9-1/4 " |
| Acetylene Cylinder Size | 13-1/2 " |
| Height | 45 3/4 " |
| Width | 31 " |
| Bracket Chain Height | 27 " |
| Color | Harper Green |
| Handle Type | Continuous |
| UNSPSC #: | 24101500 |
| TAA Compliant: | Yes |
