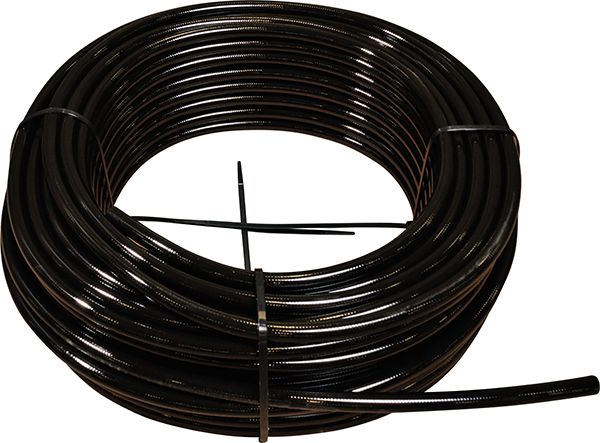

3130 Hydraulic Hose, Polyurethane, Spiral/Braided Synthetic Fiber, 1/2" ID, 0.816" OD, 250' Length, 2000PSI, SAE 100R7
(Pack of
250)
SKU:20427 08 Item#: 20427 08
• Agency Ratings: SAE 100R7
• Fittings Certified: 903 Series
• Agency Approvals: None
• Construction:
– Inner Tube: Nylon-lined core tube
– Reinforcement: Spiral or braided synthetic fiber**
– Cover: Black perforated polyurethane
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +65°C)
• Application Note: General hydraulic operations, fork and man lifts, material handling, high-pressure gas transfer, chemical transfer
**3/4" – 1" hoses are spiral. All others are braided.
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R7• Fittings Certified: 903 Series
• Agency Approvals: None
• Construction:
– Inner Tube: Nylon-lined core tube
– Reinforcement: Spiral or braided synthetic fiber**
– Cover: Black perforated polyurethane
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +65°C)
• Application Note: General hydraulic operations, fork and man lifts, material handling, high-pressure gas transfer, chemical transfer
**3/4" – 1" hoses are spiral. All others are braided.
Technical Specifications
| Item#: | 20427 08 |
|---|---|
| Manufacturer Model #: | 3130-08-250BX |
| Type | Thermoplastic Hose |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R7 |
| Manufacturer Series Number | 3130 |
| Manufacturer Series Name | 3130 |
| Working Pressure | 2,000 PSI |
| Burst Pressure | 8,000 PSI |
| Inner Tube Material | Nylon-lined Core |
| Hose Reinforcement | Spiraled or braided synthetic fiber reinforcement |
| Hose Cover Material | Perforated Polyurethane |
| Fitting Series | U Series or 903 Series |
| Temperature | Petroleum based fluids -40F to 212F, Water based or fire-resistant fluids to +150F |
| Color | Black |
| Size | 1/2 (-8) |
| SynFlex Part No. | 3130-08-250BX |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 40.0 lb |
