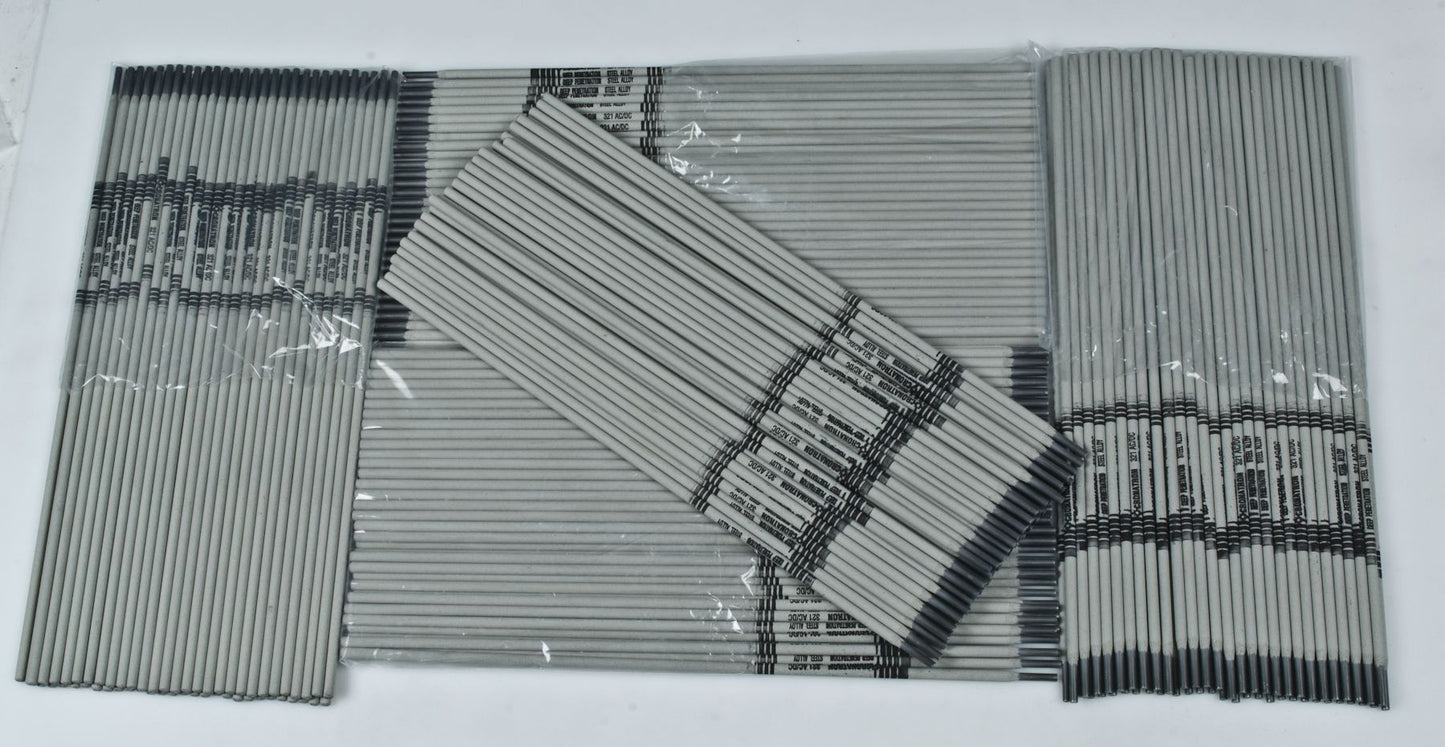

321 Mild and Carbon Steel Stick Rod Electrode, Flux Coated, 75 to 80 HRB Hardness, 110 to 170 Amps, DCRP/AC Polarity, 5/32"
(Pack of
25)
SKU:CW1809 Item#: CW1809
Formulated to cut through rust and other contaminants, providing solid, sound and dense weld deposits on all types of mild steel.
Superior Advantages
• Saves time – welds through all types of contaminants
• Deep penetrating for pipe root passes
• Produces strong, dense weld deposits
Tensile Strength: 76,000 PSI
Yield Strength: 66,000 PSI
Hardness: Rb 75-80
Polarity: AC or DC Reverse
Typical Applications
• Sheet, plates, angles, beams, channels and joining of all mild steel structures
• Galvanized sheet
• Machinery and machine parts
• Automotive and truck bodies
• Pipes, tanks, containers
Usage ProcedureMaintain a short arc to reduce heat buildup in the base metal and keep distortion to a minimum. Weaving is seldom necessary, except when welding vertical-up. Pass-over-pass can be deposited without chipping slag. Slag coverage chips off easily after cooling. Machine or grind to desired dimensions.
Frequently Bought Together
321 Mild and Carbon Steel TIG Wire 1/8"
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Oxy Acetylene Fuel and Oxygen Quick Connector
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
Product Description
Formulated to cut through rust and other contaminants, providing solid, sound and dense weld deposits on all types of mild steel.Superior Advantages
• Saves time – welds through all types of contaminants
• Deep penetrating for pipe root passes
• Produces strong, dense weld deposits
Tensile Strength: 76,000 PSI
Yield Strength: 66,000 PSI
Hardness: Rb 75-80
Polarity: AC or DC Reverse
Typical Applications
• Sheet, plates, angles, beams, channels and joining of all mild steel structures
• Galvanized sheet
• Machinery and machine parts
• Automotive and truck bodies
• Pipes, tanks, containers
Usage ProcedureMaintain a short arc to reduce heat buildup in the base metal and keep distortion to a minimum. Weaving is seldom necessary, except when welding vertical-up. Pass-over-pass can be deposited without chipping slag. Slag coverage chips off easily after cooling. Machine or grind to desired dimensions.
Technical Specifications
| Item#: | CW1809 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 5/32 " |
| Tensile Strength | 76,000 PSI |
| Yield Strength | 66,000 PSI |
| Base Metal | Mild & Carbon Steel |
| Hardness | 75-80 HRB |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 26.5 lb |
