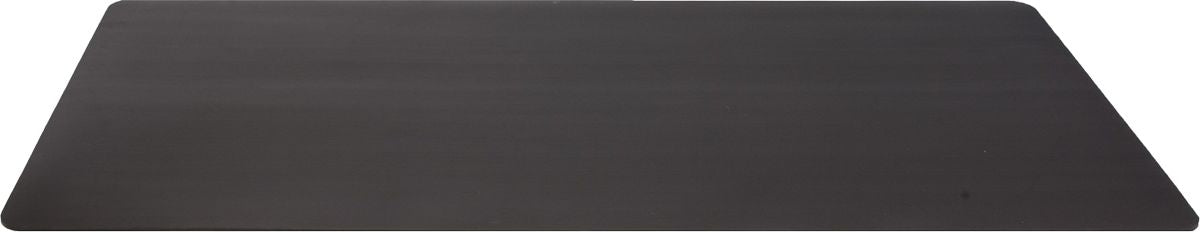

Dielectric Corrugated PVC Switchboard Mat, 3' Width, 6' Length, 1/4" Thickness, Black
(Pack of
1)
SKU:1639036 Item#: 1639036
• Extra-thick vinyl runner with corrugated PVC surface for added traction
• Long-lasting 1/4" thick construction
• Protects workers from high voltage equipment
• Recommended maximum usage – 17,000 volts (VAC)
• Dielectric strength to 30,000 volts (VAC)
• Meets requirements of ANSI/ASTMD-178-01 Type II, Class 2
• Use near fuse boxes, control panels, high voltage work cells, and heavy electrical equipment up to 17,000 volts
NOTE: Mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.
Frequently Bought Together
4'x6' Dielectric Corrugated Switchboard Mat
Couldn't load pickup availability
3'x4' Dielectric Corrugated Switchboard Mat
Couldn't load pickup availability
Enerspro Cl 2 Switchboard Mat 25yd Roll
Couldn't load pickup availability
150 ft Trailing Marking Red and Silver Conspicuity Tape
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Silver
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Green
Couldn't load pickup availability
Ultimate Diamond Foot Anti-Fatigue Mat
Couldn't load pickup availability
Performa Interlocking Anti-Fatigue Mat 3' x 3'
Couldn't load pickup availability
Ultimate Diamond Foot Anti-Fatigue Mat
Couldn't load pickup availability
Automotive Refinishing Tape 1" x 60 Yards
Couldn't load pickup availability
Wypall L30 Wiper 16.4 x 9.8"
Couldn't load pickup availability
Orange Diamond-Textured Nitrile Gloves, 6 Mil, Large
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
• Extra-thick vinyl runner with corrugated PVC surface for added traction• Long-lasting 1/4" thick construction
• Protects workers from high voltage equipment
• Recommended maximum usage – 17,000 volts (VAC)
• Dielectric strength to 30,000 volts (VAC)
• Meets requirements of ANSI/ASTMD-178-01 Type II, Class 2
• Use near fuse boxes, control panels, high voltage work cells, and heavy electrical equipment up to 17,000 volts
NOTE: Mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.
Technical Specifications
| Item#: | 1639036 |
|---|---|
| Length | 6 ft |
| Size | 3 x 6 ft |
| Thickness | 1/4 " |
| Color | Black |
| Basic Color | Black |
| Width | 3 ft |
| Dielectric Strength | 30,000 Volts (VAC) |
| Material | PVC |
| Recommended Use | Use near fuse boxes, control panels, high voltage work cells, and heavy electrical equipment up to 17,000 volts. |
| UNSPSC #: | 52101500 |
| TAA Compliant: | No |
