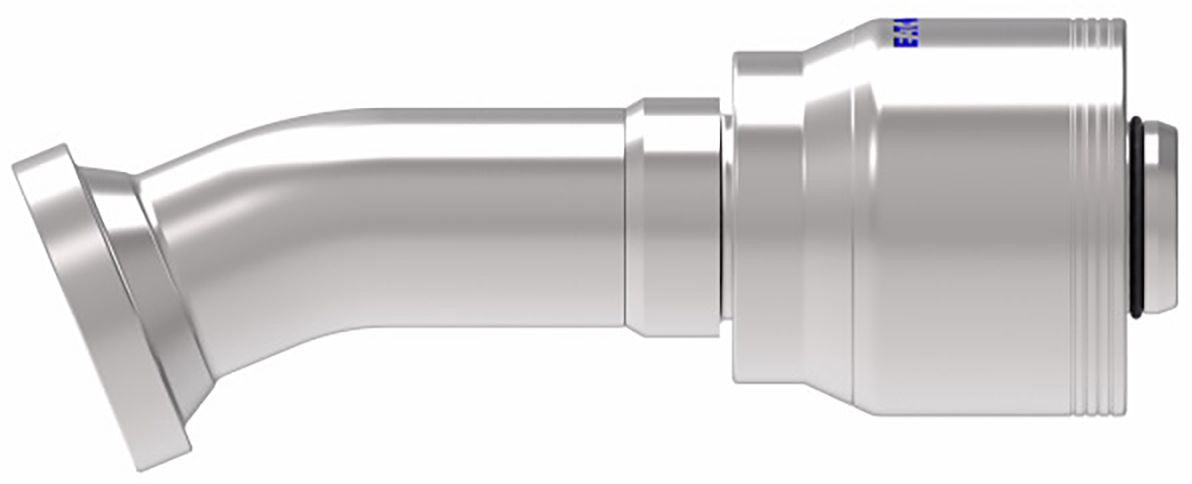

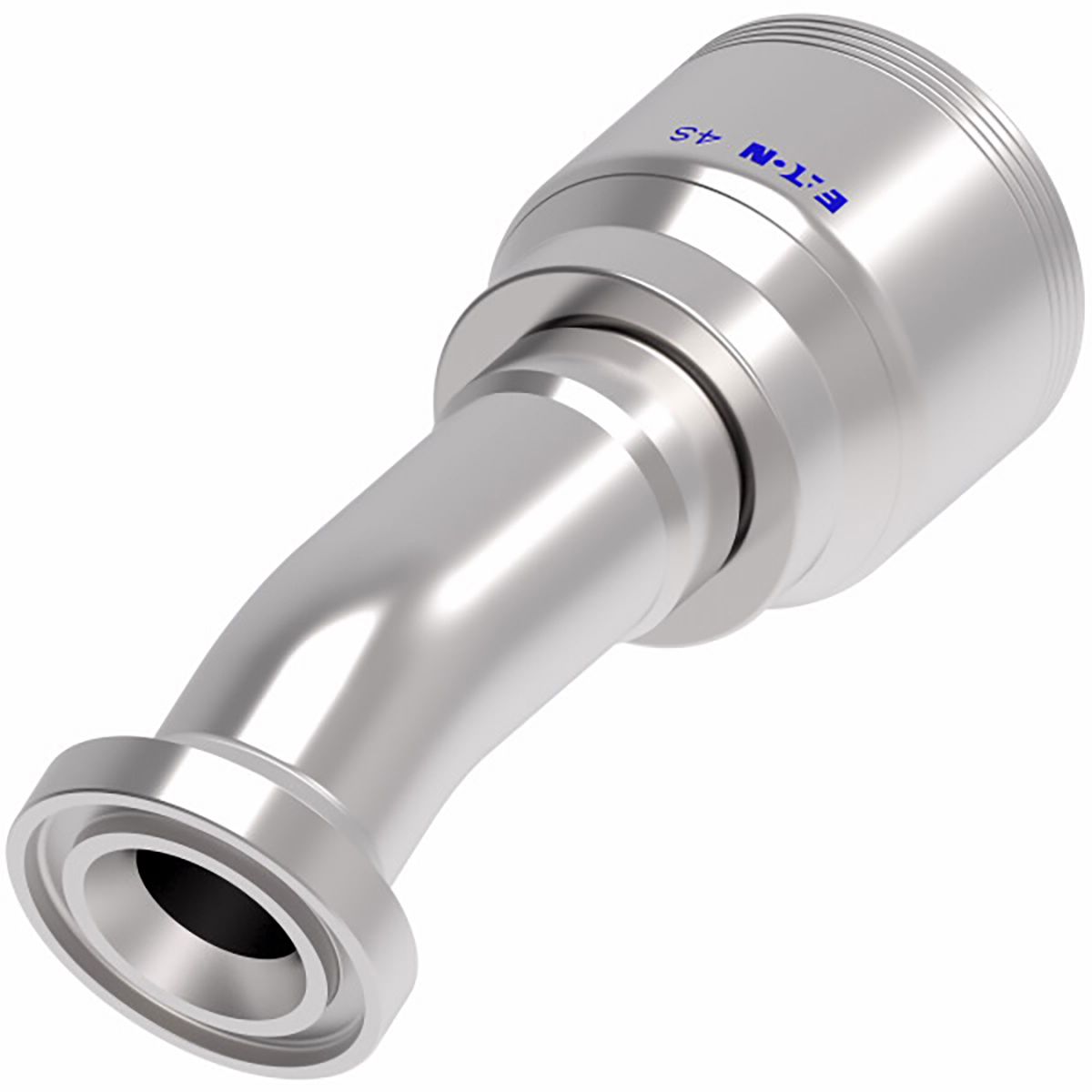

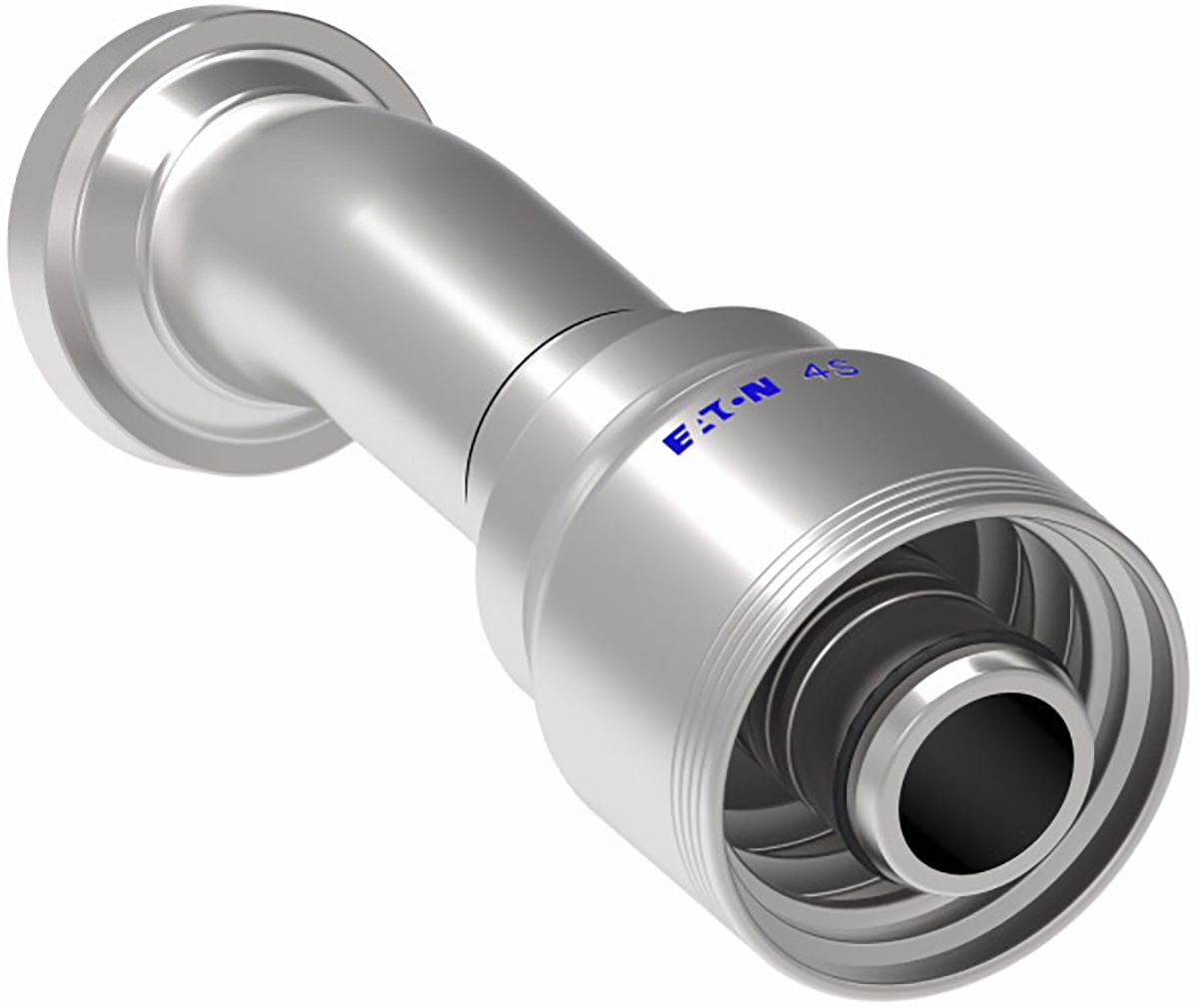

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 22.5°, SAE 61, 1 (-16) x 2" (-20)
(Pack of 1)

Item#: 1542958

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-27

Frequently Bought Together


Z Series Crimp-On Hose End 3/8" x 11/16-16

Item#: 16706

Z Series Crimp-On Hose End 3/8" x 3/4-16

Item#: 16614

MegaCrimp Crimp-On Coupling 3/8" x 9/16-18

Item#: 62881

Z Series Crimp-On Hose End 3/8" x 11/16-16

Item#: 16706

Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare

Item#: 86200

Z Series Crimp-On Hose End 3/8" x 3/4-16

Item#: 16614

Super 77 Miniature Hose Clamp SS 7/32 to 5/8"

Item#: 86327

Pipe Bushing Brass 1/2-14 x 1/4-18

Item#: 5286

DOT Union Brass 3/8 x 3/8"

Item#: 57500

Butt Connector 22 to 18 AWG Clear

Item#: 1368140

High Solids Paints Gloss Black

Item#: 1509224

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: 88445

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1542958
Manufacturer Model #: 4S20FLD16
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1 (-16) "
Dash Size -16
Fitting End Type Flanged
Fitting Angle 22.5 °
Fitting Dimension B (Working End) 2.00 (-20)
Weatherhead No. 4S20FLD16
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 4.77 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.88 lb
