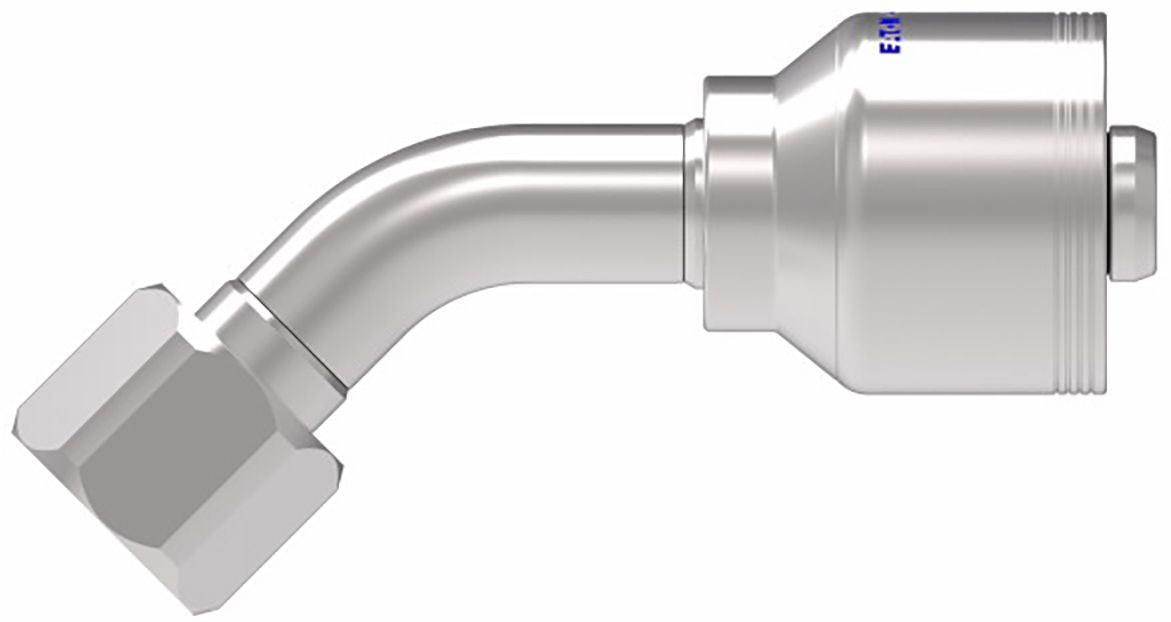

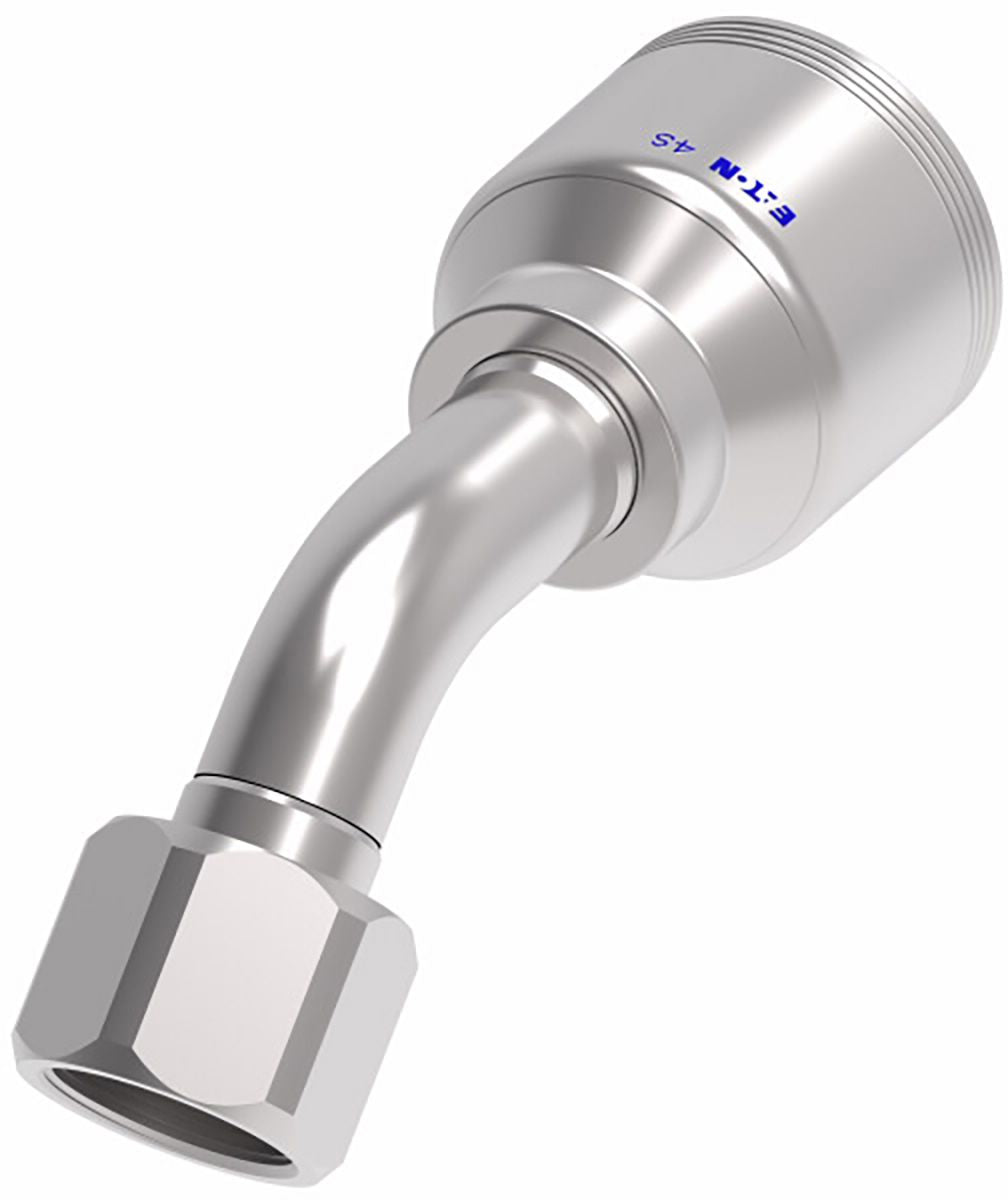

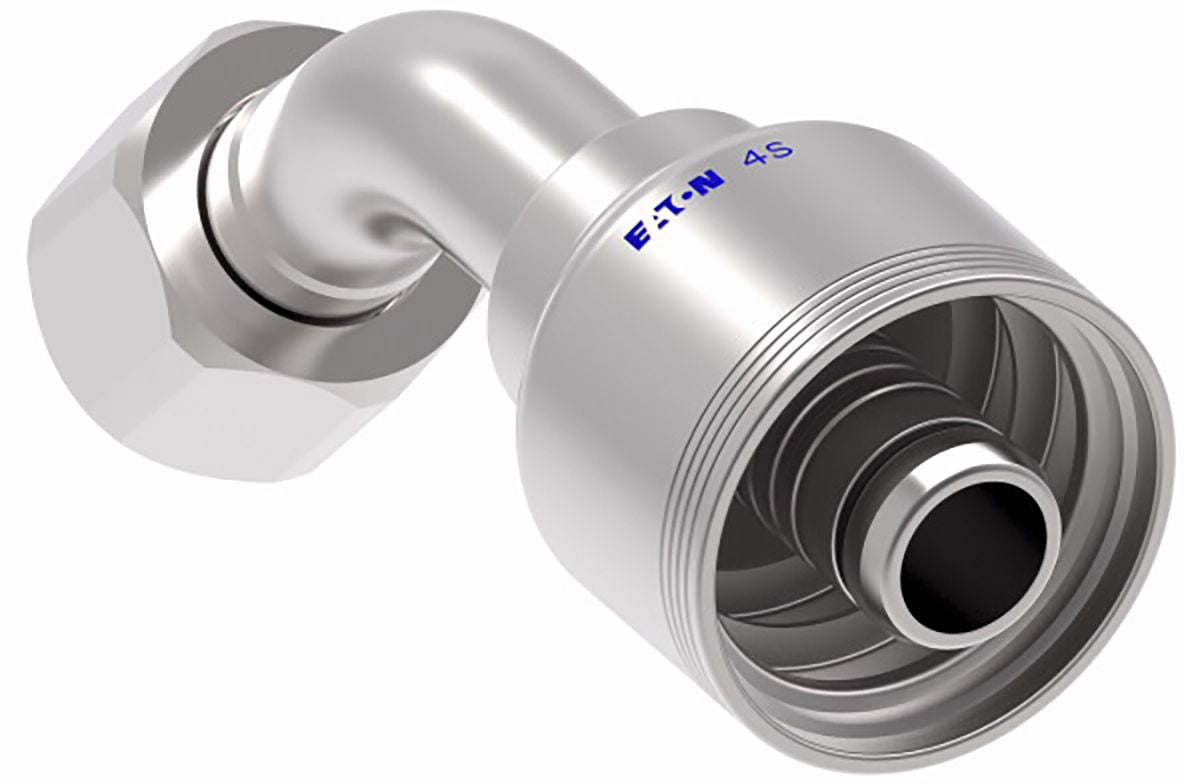

4S Series Crimp-On Elbow, Carbon Steel, Female JIC 37°, Swivel 45°, 3/4" (-12) x 1-1/16-12 (-12)
(Pack of
1)
SKU:1543038 Item#: 1543038
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Crimp-On Hose Coupling 3/8" x 3/8-18
Item#: 88311KH
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/4" x 7/16-20
Item#: 16643
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-3/16-12
Item#: 16716
Couldn't load pickup availability
Crimp-On Coupling 1/4" x 9/16-18
Item#: 51140KH
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16610
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Item#: 86727
Couldn't load pickup availability
Cable Tie 13.38" Black
Item#: 85490
Couldn't load pickup availability
Master Series Penlight Flashlight
Item#: 1635602
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543038 |
|---|---|
| Manufacturer Model #: | 4SA12FJA12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Type | JIC 37 |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 1-1/16-12 (-12) |
| Weatherhead No. | 4SA12FJA12 |
| SAE Code | J1176 |
| Hex Size | 1.25 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 3 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 0.83 lb |
