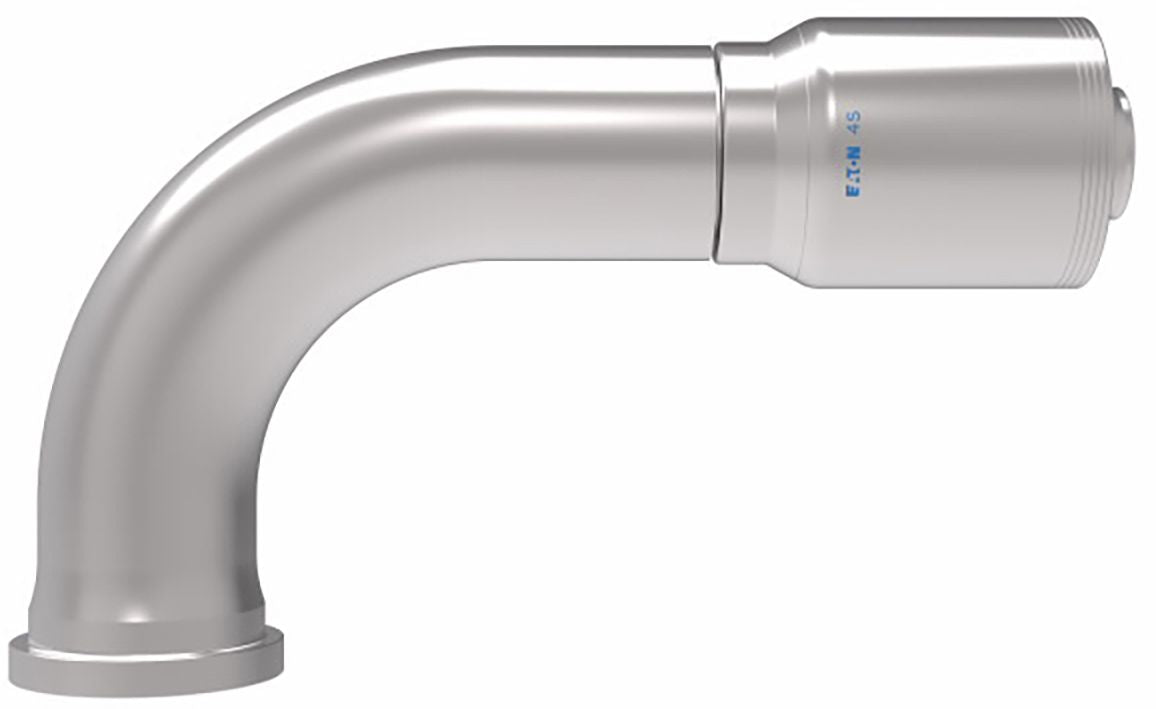

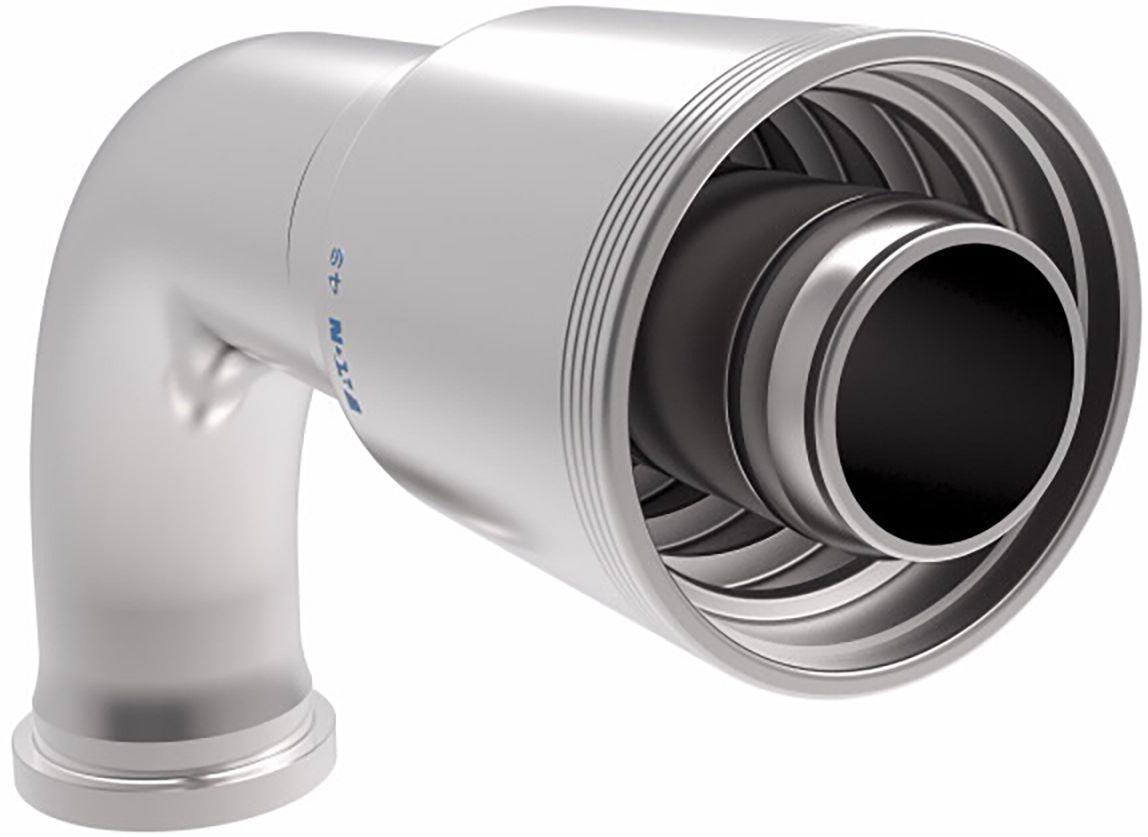

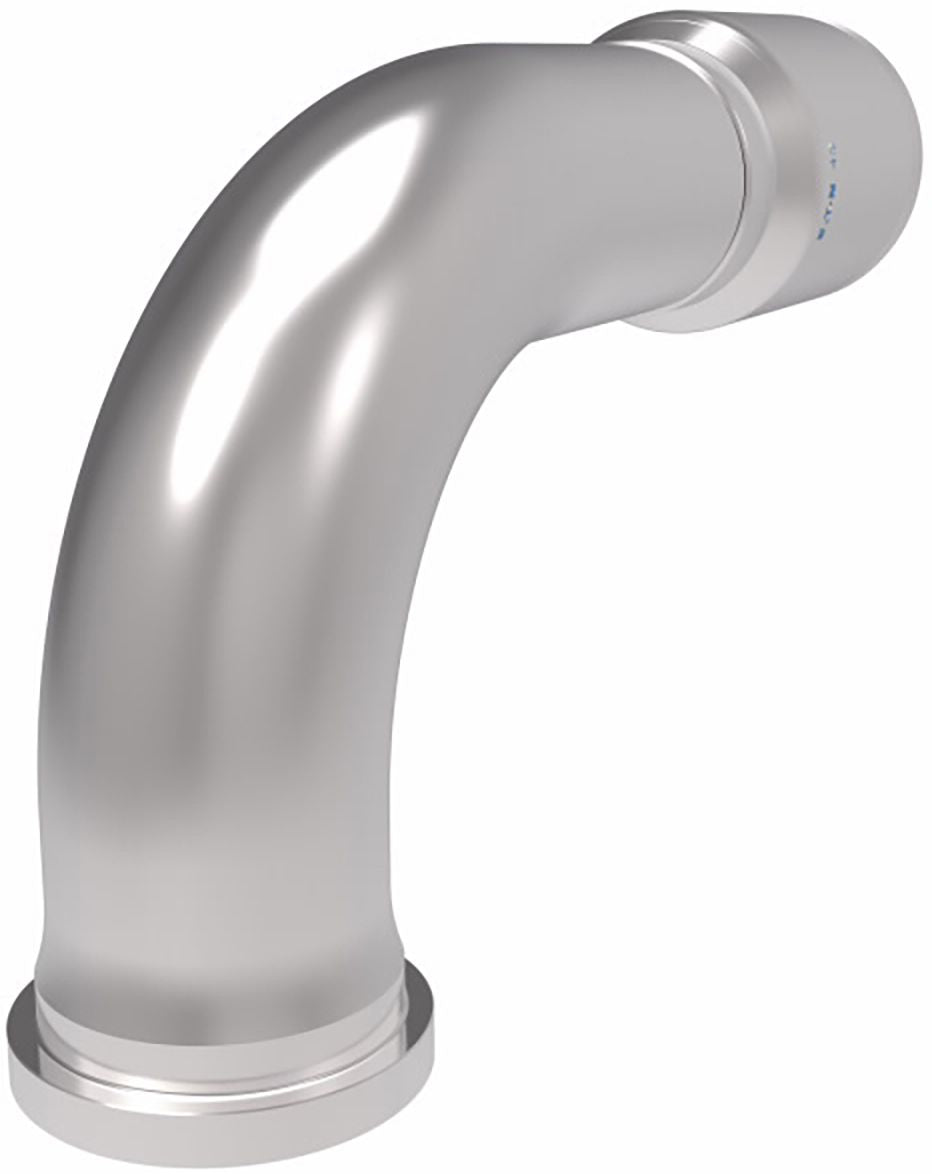

4S Series Crimp-On Elbow 90° 1-1/2 x 2.81"
(Pack of
1.0)
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Crimp-On Hose Coupling 3/8" x 3/8-18
Item#: 88311KH
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 7/8-14
Item#: 88291KH
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/4" x 7/16-20
Item#: 16643
Couldn't load pickup availability
Hydraulic Plug, 1-1/16-12"(12) Male JIC SAE 37 Degree Flare
Item#: 86202
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Item#: 50799 06
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Item#: 62893
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Item#: 86725
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Item#: 88360KH
Couldn't load pickup availability
Pipe Coupling Brass 1/8-27 x 1/8-27
Item#: 5288
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Item#: FA88447
Couldn't load pickup availability
Flashlight with Continuity Tester
Item#: 95442
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Item#: 88441
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543104 |
|---|---|
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/2 (-24) " |
| Dash Size | -24 |
| Fitting End Type | Flanged |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 2.81 (-32) |
| Weatherhead No. | 4S32FLB24 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 6.67 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 8.1 lb |
