Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Elbow 90° 1/2 x 1.25"
End Fittings

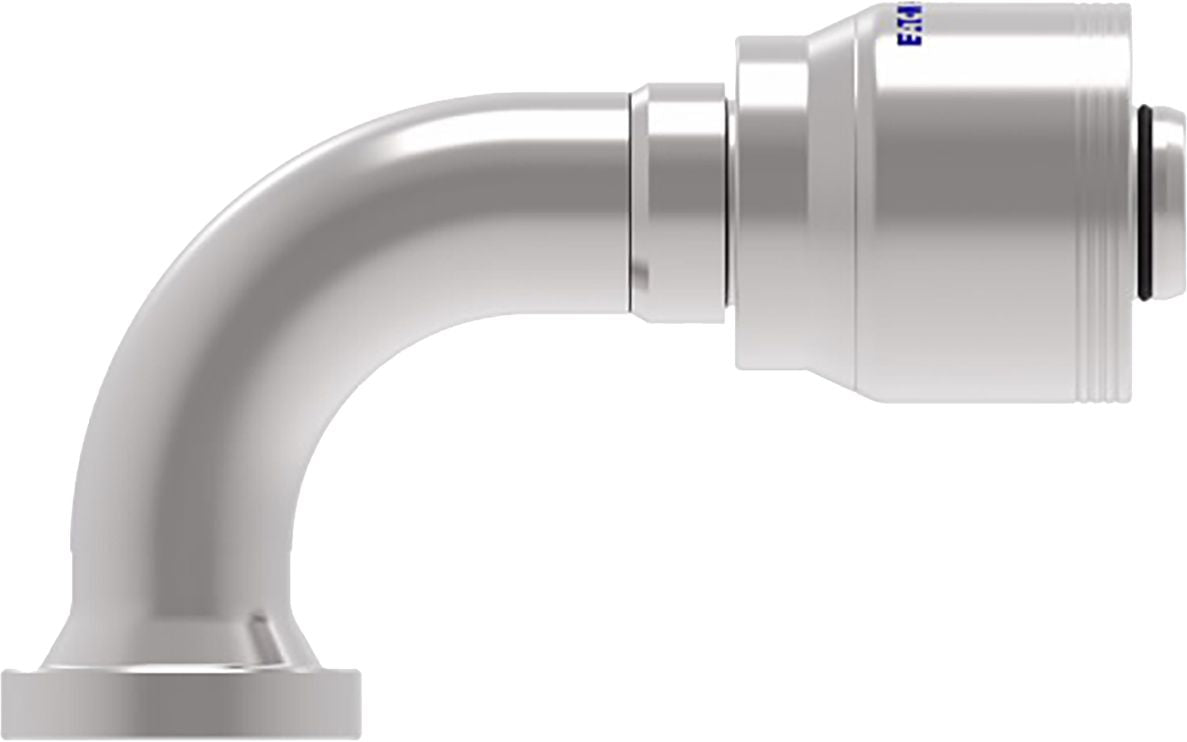

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 90°, SAE 62, 1/2 (-8) x 1.25" (-8)
(Pack of 1)

Item#: 1554229

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-28

Frequently Bought Together


Crimp-On Hose Coupling 1/2" x 3/4-16

Item#: 88364KH

Crimp-On Hose Coupling 3/8" x 9/16-18

Item#: 88360KH

Z Series Crimp-On Hose End 1/2 x 3/4-16"

Item#: 16615

Crimp-On Hose Coupling 1/2" x 3/4-16

Item#: 88364KH

Crimp-On Hose Coupling 3/8" x 9/16-18

Item#: 88360KH

Z Series Crimp-On Hose End 1/2 x 3/4-16"

Item#: 16615

Pipe Bushing Brass 1/2-14 x 3/8-18

Item#: 5287

Miniature Clamp SS 7/32 to 5/8"

Item#: 86738

DOT Union Nylon 1/4 x 1/4"

Item#: 91819

Nylon Cable Tie 15.25" Black

Item#: 94613

Nylon Cable Tie 11.75" Black

Item#: 94611

Nylon Cable Tie 15.5" Black

Item#: 94612

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1554229
Manufacturer Model #: 4S8FHB8
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1/2 (-8) "
Dash Size -8
Fitting End Type Flanged
Fitting Angle 90 °
Fitting Drop Length 1.63 "
Fitting Dimension B (Working End) 1.25 (-8)
Weatherhead No. 4S8FHB8
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 1.7 "
UNSPSC #: 27121700
TAA Compliant: No
Weight: 0.3968 lb
