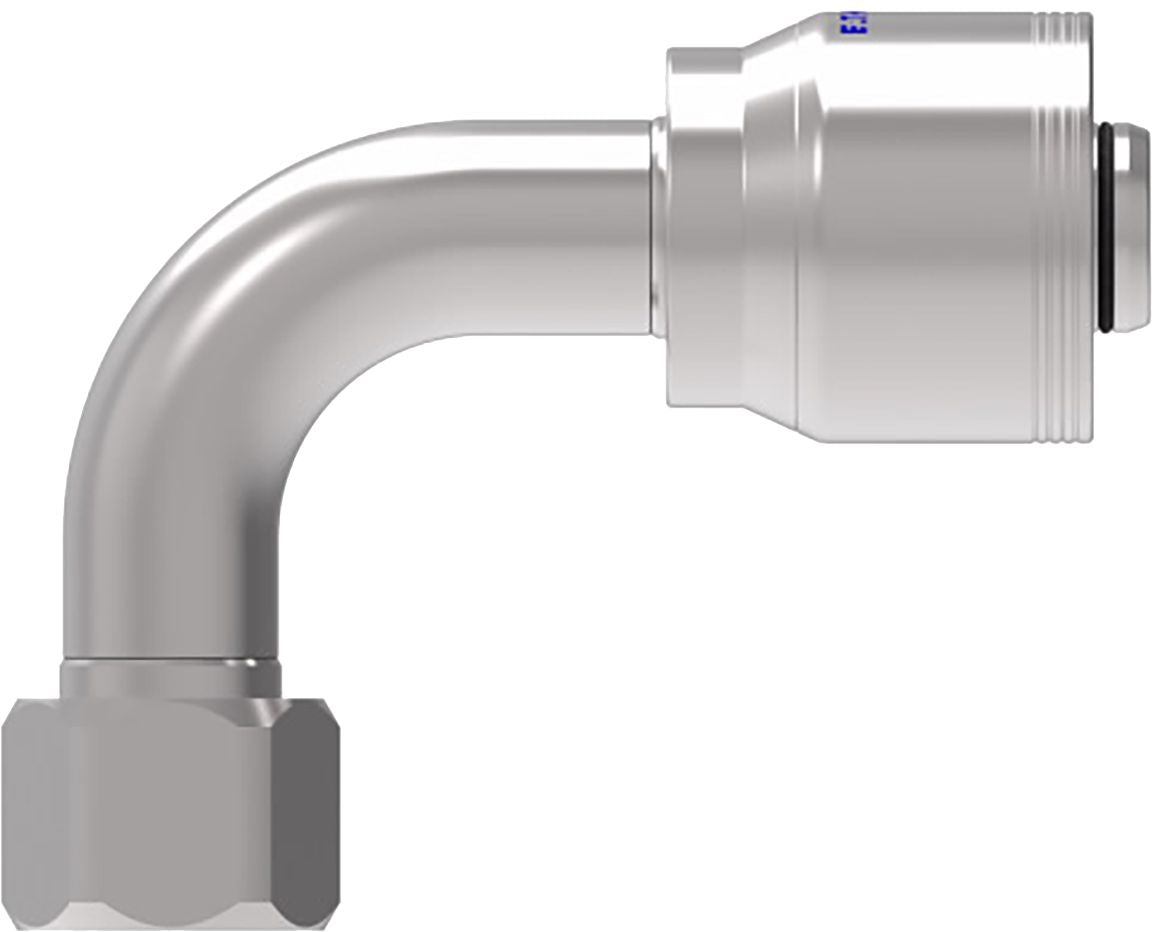

4S Series Crimp-On Elbow 90° 1/2" x 7/8-14
(Pack of
1.0)
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
MegaCrimp Crimp-On Coupling 1/2" x 3/4-16
Item#: 62885
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Item#: 16614
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 7/8-14
Item#: 88365KH
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Item#: 62379
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Item#: 16706
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 3/4-16
Item#: 88361KH
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Item#: 5363
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Item#: 5365
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Item#: 86327
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Item#: 88447
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Item#: 92823
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1554237 |
|---|---|
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Female |
| Fitting End Type | JIC 37 |
| Fitting Angle | 90 ° |
| Fitting Drop Length | 1.93 " |
| Fitting Dimension B (Working End) | 7/8-14 (-10) |
| Weatherhead No. | 4SA10FJB8 |
| SAE Code | J1176 |
| Hex Size | 1 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.7 " |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.463 lb |
