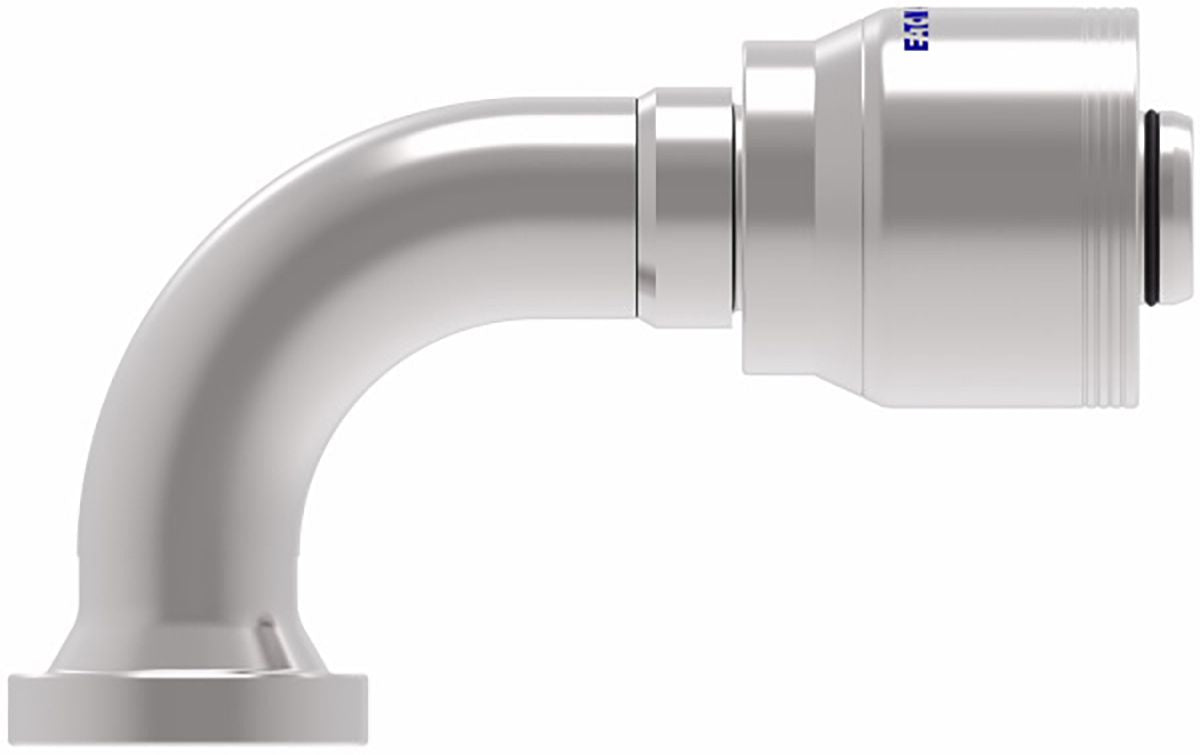

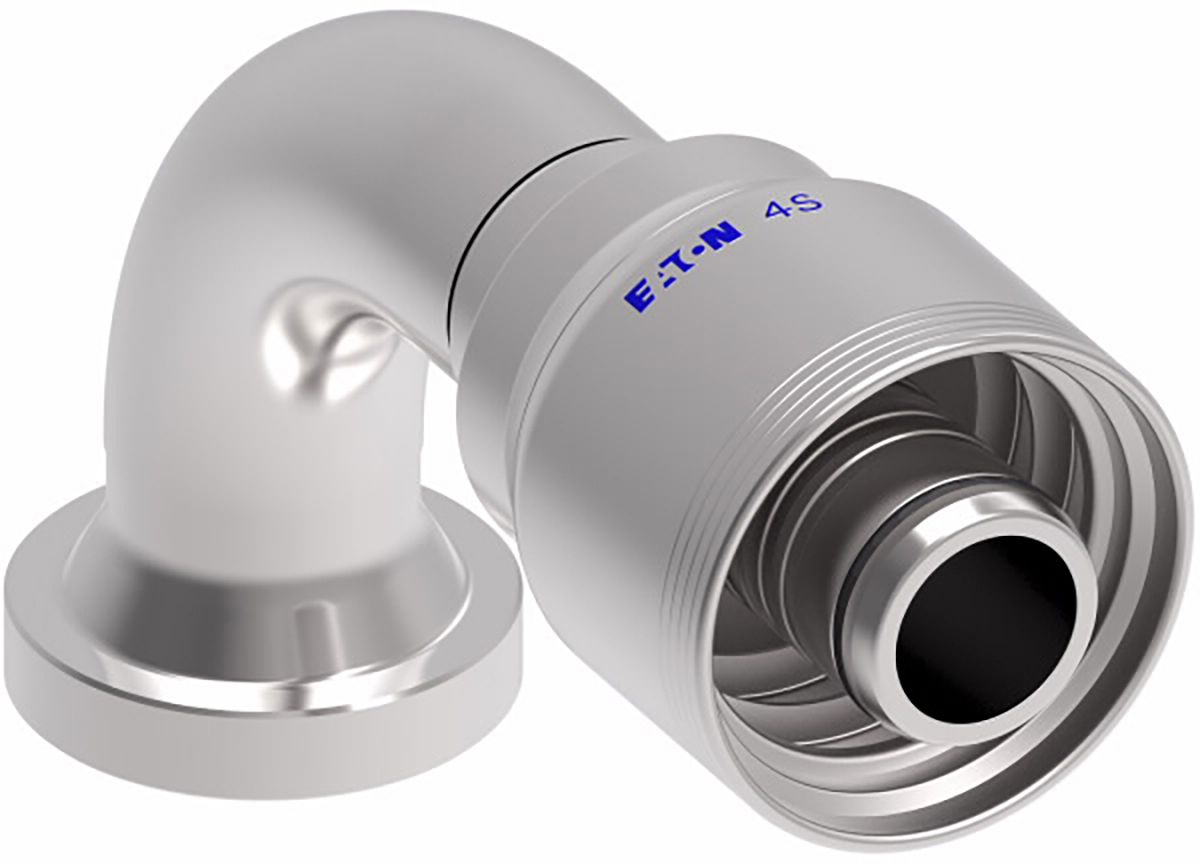

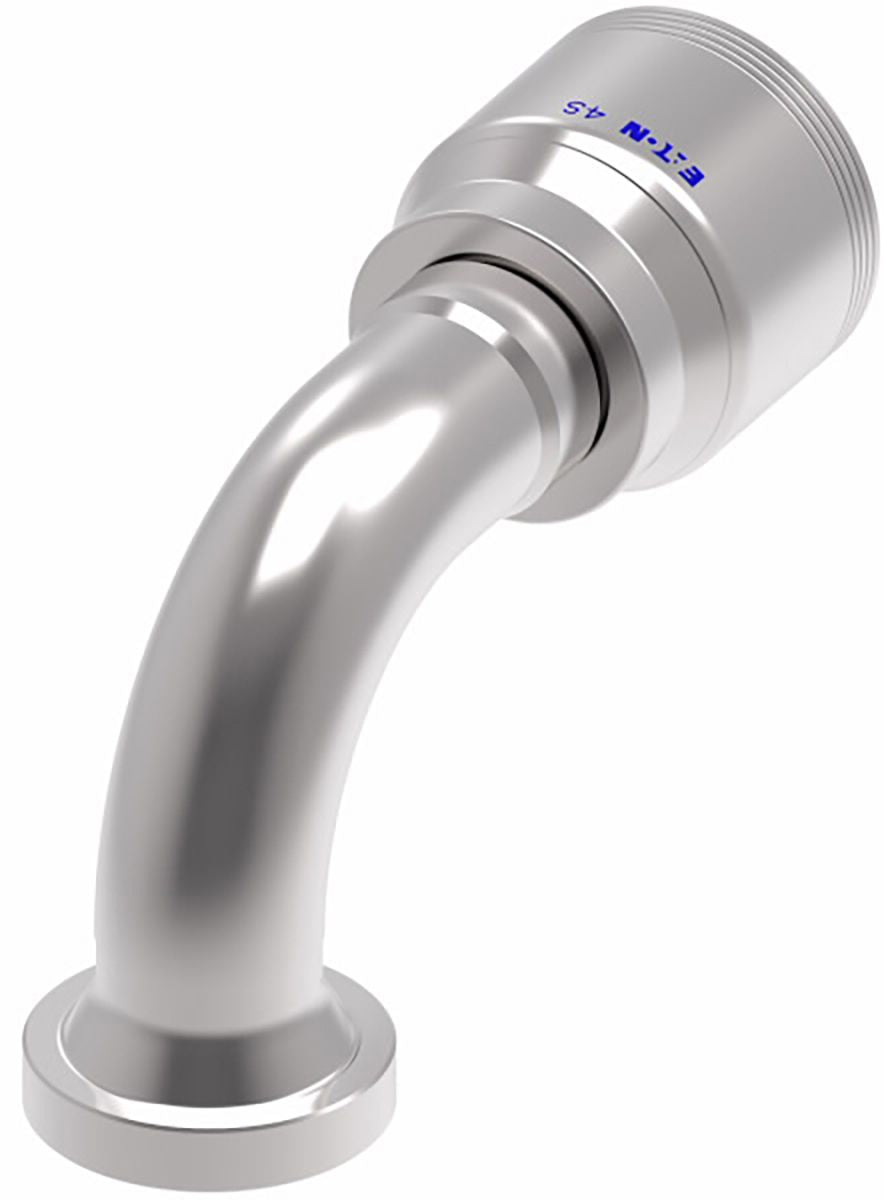

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 90°, SAE 62, 1 (-16) x 2.13" (-20)
(Pack of 1)

Item#: 1542975

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-28

Frequently Bought Together


Crimp-On Hose Coupling 1/4" x 7/16-20

Item#: 88357KH

Z Series Crimp-On Hose End 1/2" x 1/2-14

Item#: 16604

Z Series Crimp-On Hose End 3/8" x 13/16-16

Item#: 16707

Push On Tapered Cap/Plug Polyethylene 1/4"

Item#: 90791

Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 16649

Hydraulic Quick Connect Nipple 1/2" x 1/2-14

Item#: 84602

Z Series Crimp-On Hose End 1/2 x 3/4-16"

Item#: 16615

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832

Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18

Item#: 5314

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1542975
Manufacturer Model #: 4S20FHB16
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1 (-16) "
Dash Size -16
Fitting End Type Flanged
Fitting Angle 90 °
Fitting Dimension B (Working End) 2.13 (-20)
Weatherhead No. 4S20FHB16
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 4.15 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 2.47 lb
