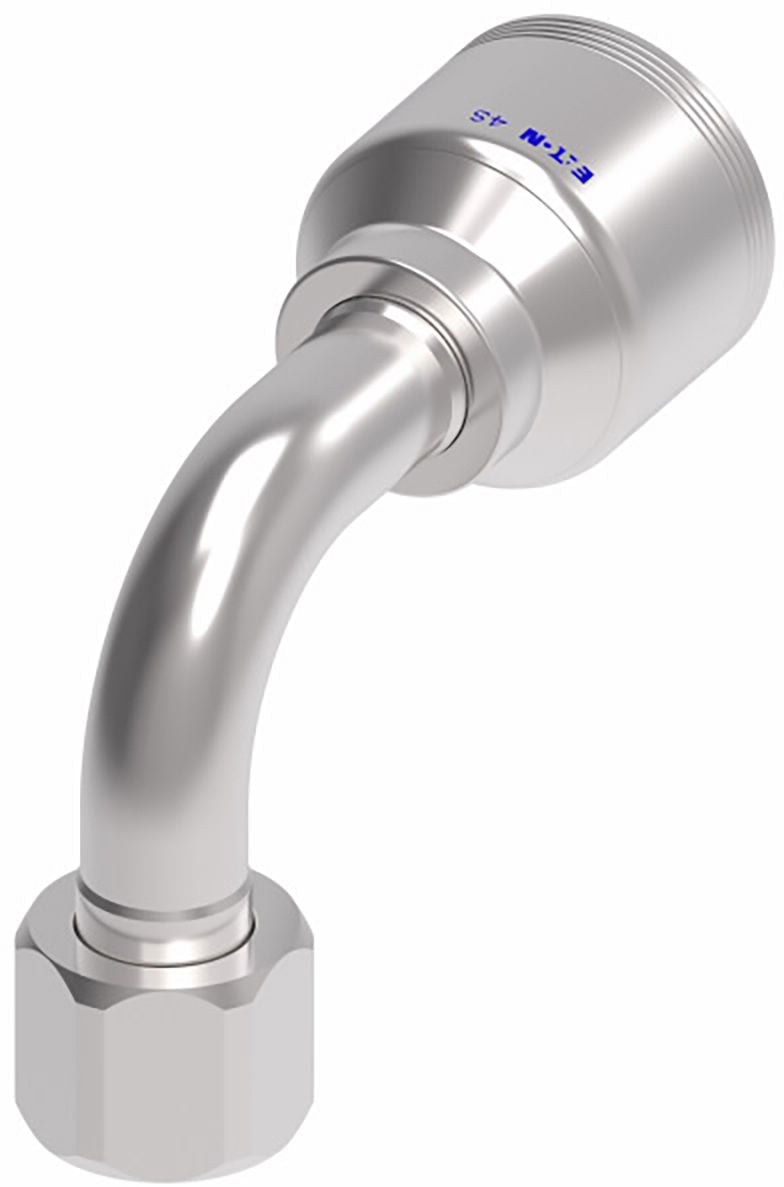

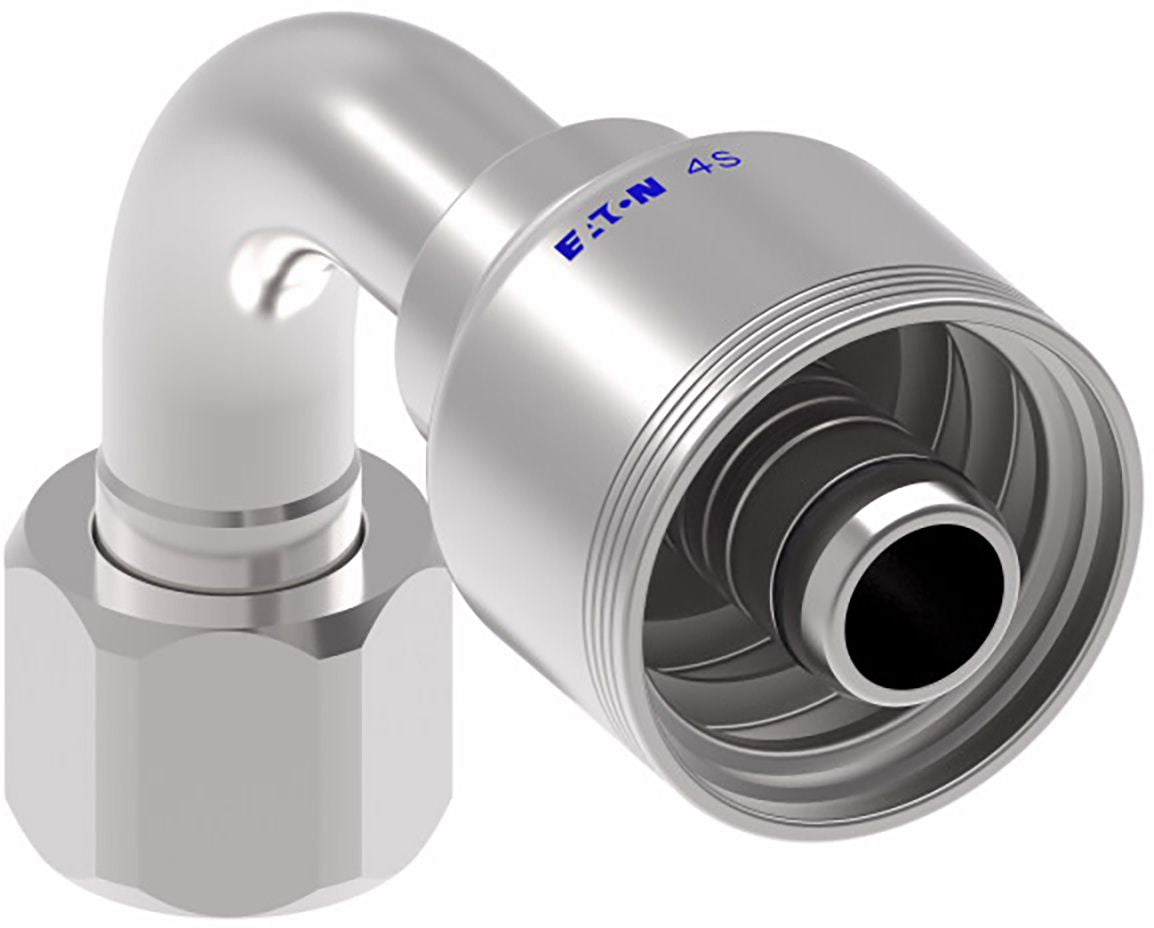

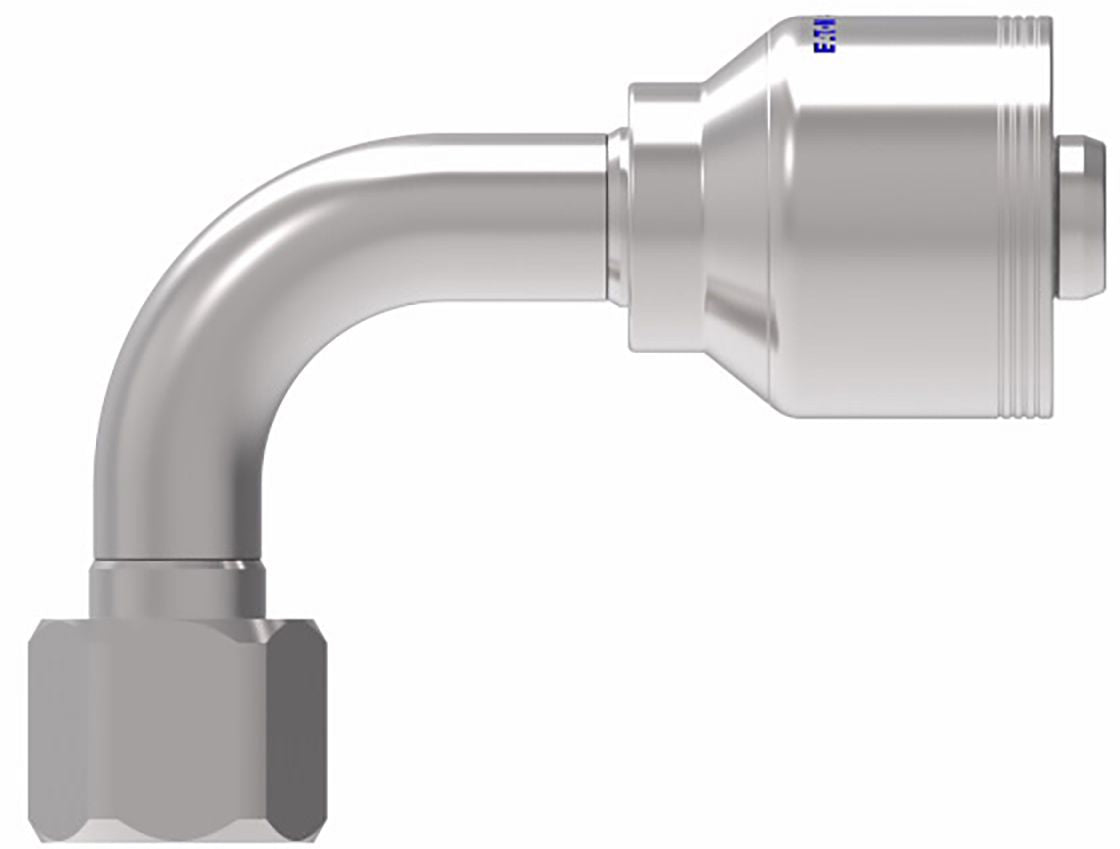

4S Series Crimp-On Elbow, Carbon Steel, Female JIC 37°, Swivel 90°, 3/4" (-12) x 1-5/16-12 (-16)
(Pack of
1)
SKU:1543054 Item#: 1543054
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Item#: 16649
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Item#: 88292KH
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Item#: 62893
Couldn't load pickup availability
Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare
Item#: 86154
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 1/2" x 3/4-16
Item#: 62885
Couldn't load pickup availability
Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare
Item#: 86201
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Item#: 57505
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Item#: 16613
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Item#: 91797
Couldn't load pickup availability
Vision Pro Super
Item#: DY21061040
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Item#: 80933
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: 88435
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543054 |
|---|---|
| Manufacturer Model #: | 4SA16FJB12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Type | JIC 37 |
| Fitting Angle | 90 ° |
| Fitting Drop Length | 2.8 " |
| Fitting Dimension B (Working End) | 1-5/16-12 (-16) |
| Weatherhead No. | 4SA16FJB12 |
| SAE Code | J1176 |
| Hex Size | 1.5 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.91 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.22 lb |
