Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Hose End 1-1/4" x 1-1/4-11
End Fittings

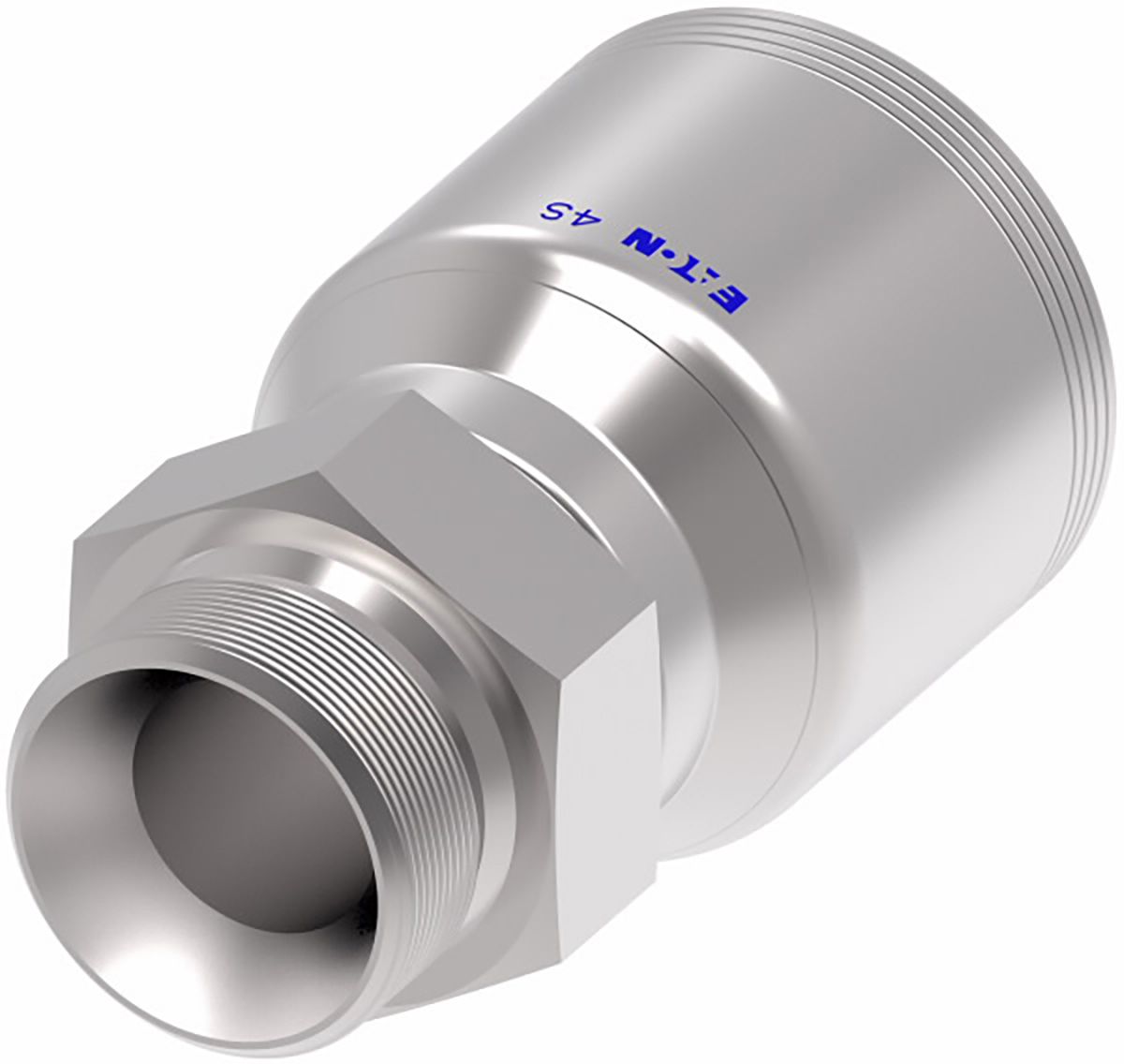

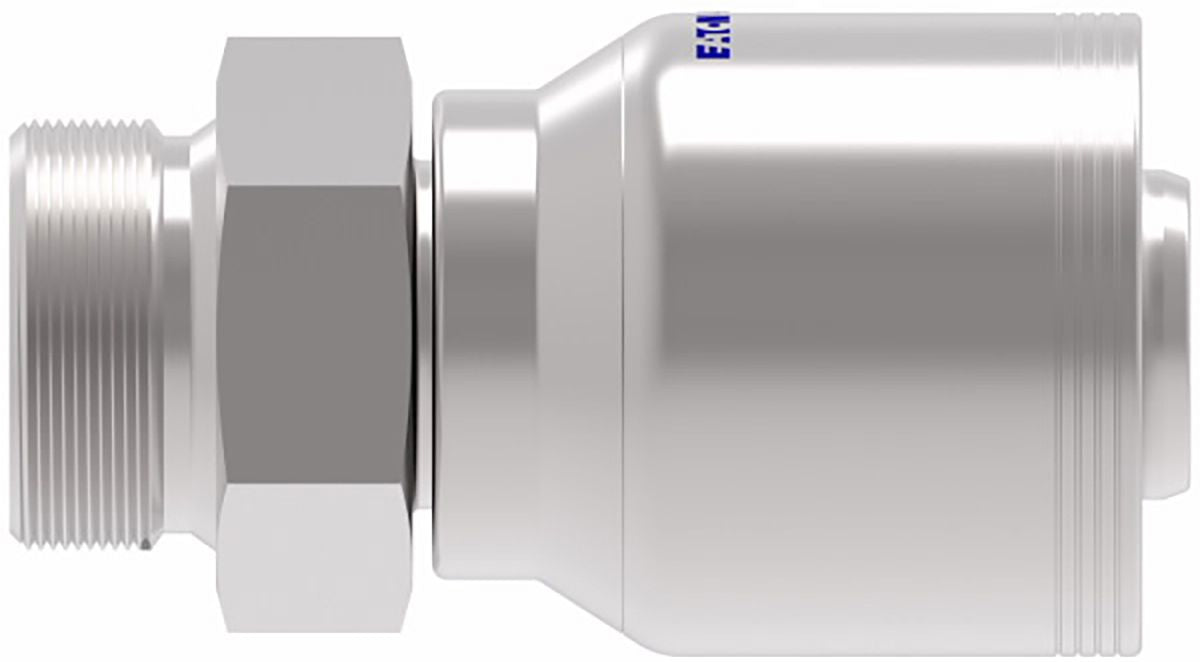

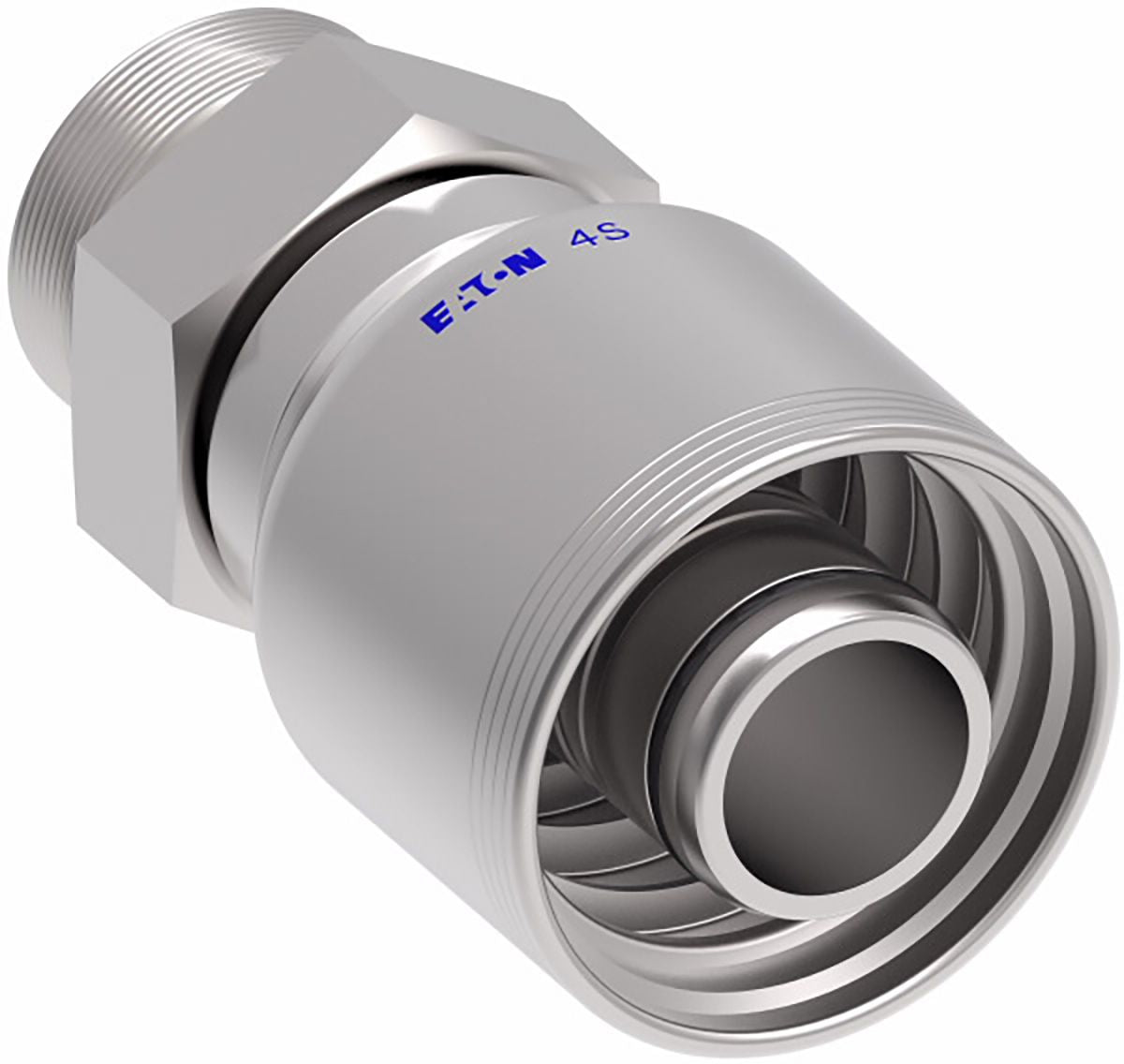

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Male Rigid BSPP, 60° Cone Seat, 1-1/4 (-20) x 1-1/4-11 (-20)
(Pack of 2)

Item#: 1542977

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-26

Frequently Bought Together


Z Series Crimp-On Elbow 90° 3/8" x 11/16-16

Item#: 16742

MegaCrimp Crimp-On Coupling 1/2" x 1/2-14

Item#: 62825

Z Series Crimp-On Hose End 1/2" x 1-14

Item#: 16710

Face Seal O-Ring Buna-N 0.489 x 0.07"

Item#: 52094

Hydraulic Plug, 1-1/16-12"(12) Male JIC SAE 37 Degree Flare

Item#: 86202

Straight Thread O-Ring Buna-N 0.755 x 0.097"

Item#: 93618

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289

Quick Disconnect Coupler Steel 1/4" x 1/4-18

Item#: 11914

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 91785

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Item#: 53985

Interchangeable Hex Bit Set 20Pc Torx

Item#: DY89310522

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1542977
Manufacturer Model #: 4S20BP20
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1-1/4 (-20) "
Dash Size -20
Gender Female
Fitting End Type BSPP
Fitting Angle Straight
Fitting Dimension B (Working End) 1-1/4-11 (-20)
Weatherhead No. 4S20BP20
SAE Code J1176
Hex Size 50 mm
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 2.15 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 4.06 lb
