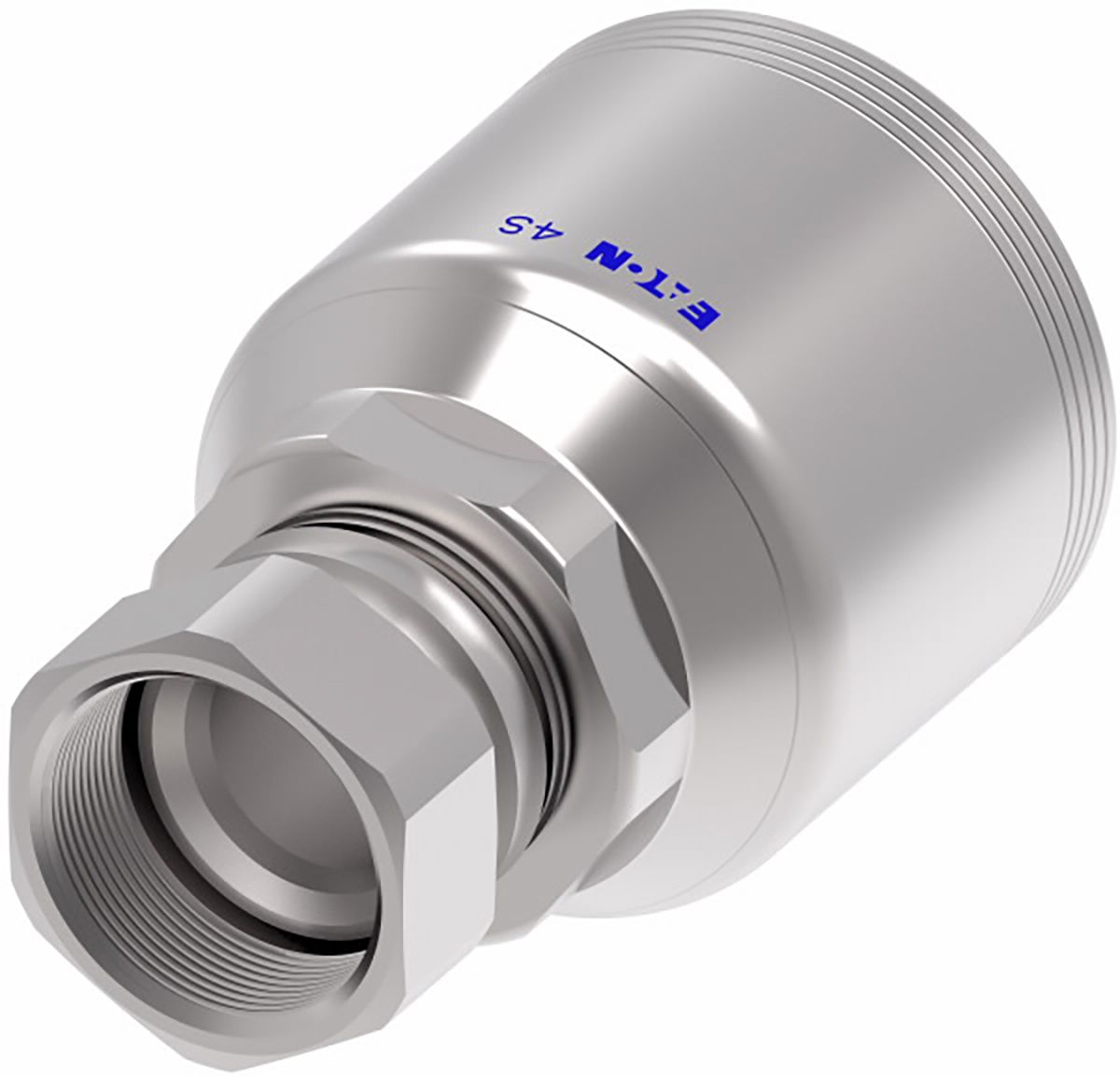

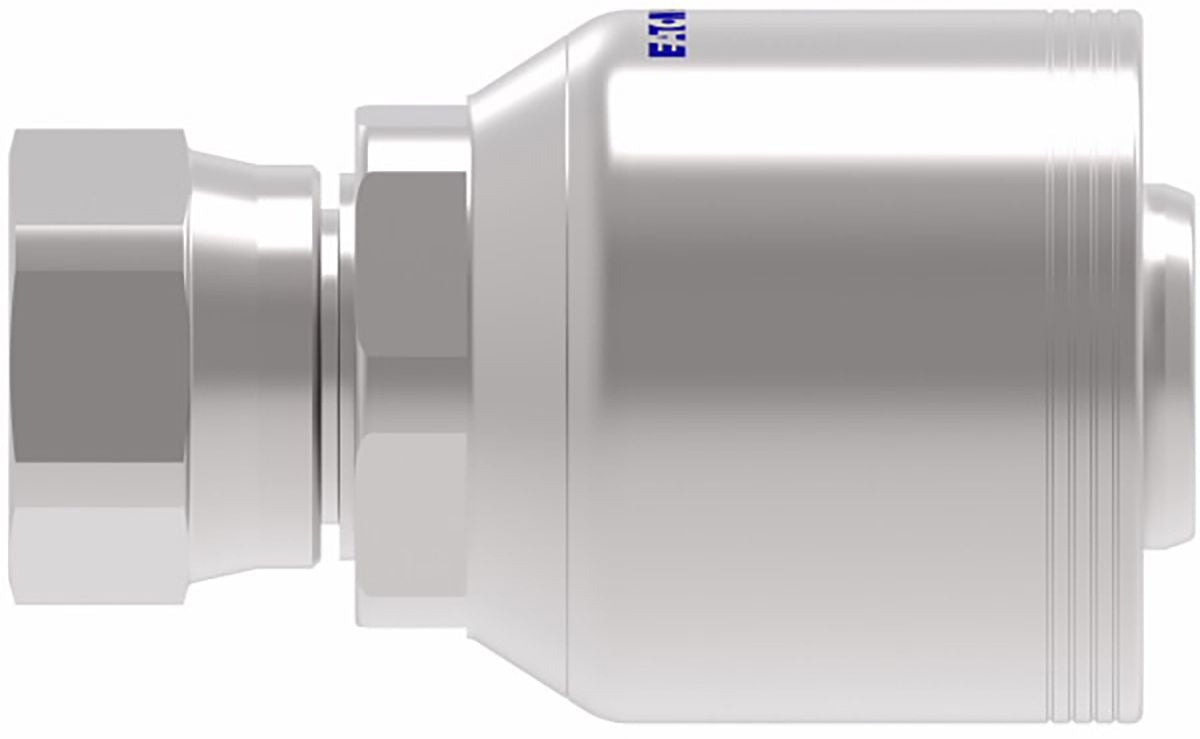

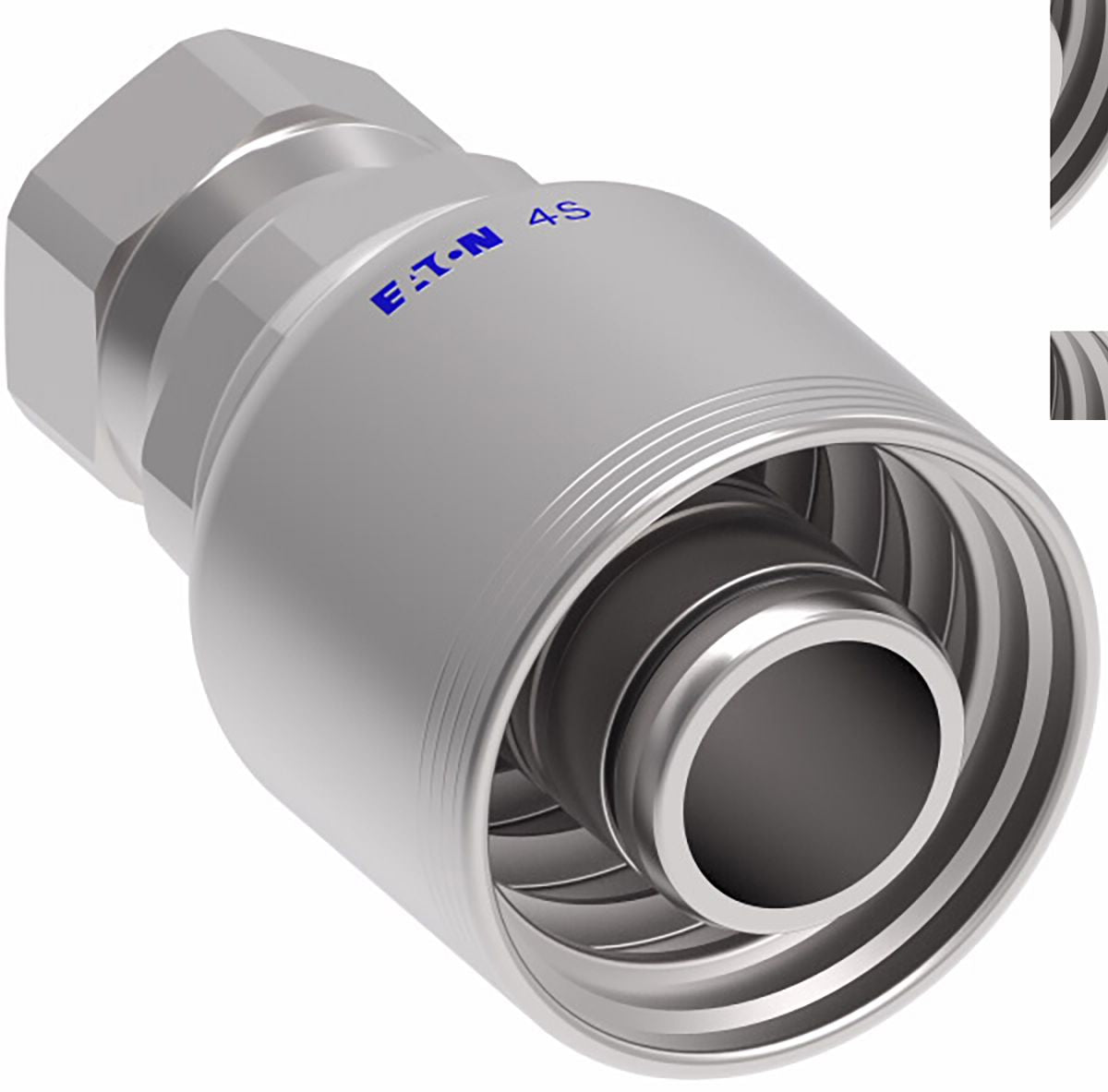

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIC 37°, 1-1/4 (-20) x 1-5/8-12 (-20)
(Pack of
1)
SKU:1543089 Item#: 1543089
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Z Series Crimp-On Hose End 3/8" x 1/2-14
Item#: 16581
Couldn't load pickup availability
Z Series Crimp-On Hose End 5/8" x 7/8-14
Item#: 16620
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 3/8" x 9/16-18
Item#: 88380KH
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Item#: 88382KH
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Item#: 52093
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Item#: 50799 08
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Item#: 86728
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Item#: 88360KH
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Item#: 97564
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Item#: DY89310247
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Item#: 88441
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Item#: A100
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543089 |
|---|---|
| Manufacturer Model #: | 4SA20FJ20 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Gender | Female |
| Fitting End Type | JIC 37 |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-5/8-12 (-20) |
| Weatherhead No. | 4SA20FJ20 |
| SAE Code | J1176 |
| Hex Size | 2 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.82 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.82 lb |
