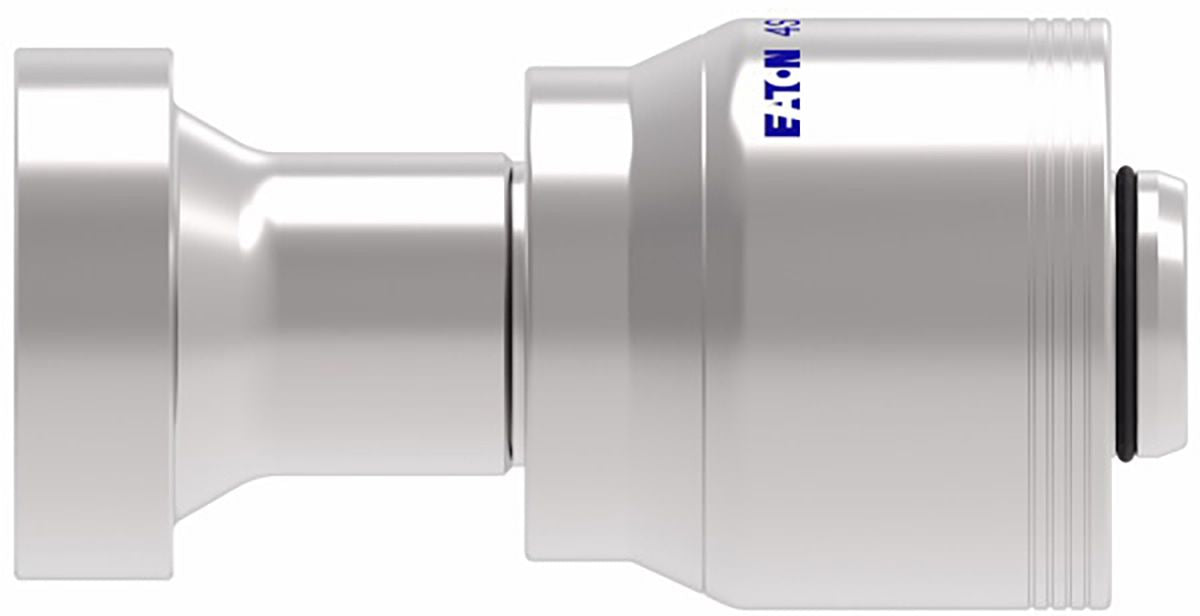

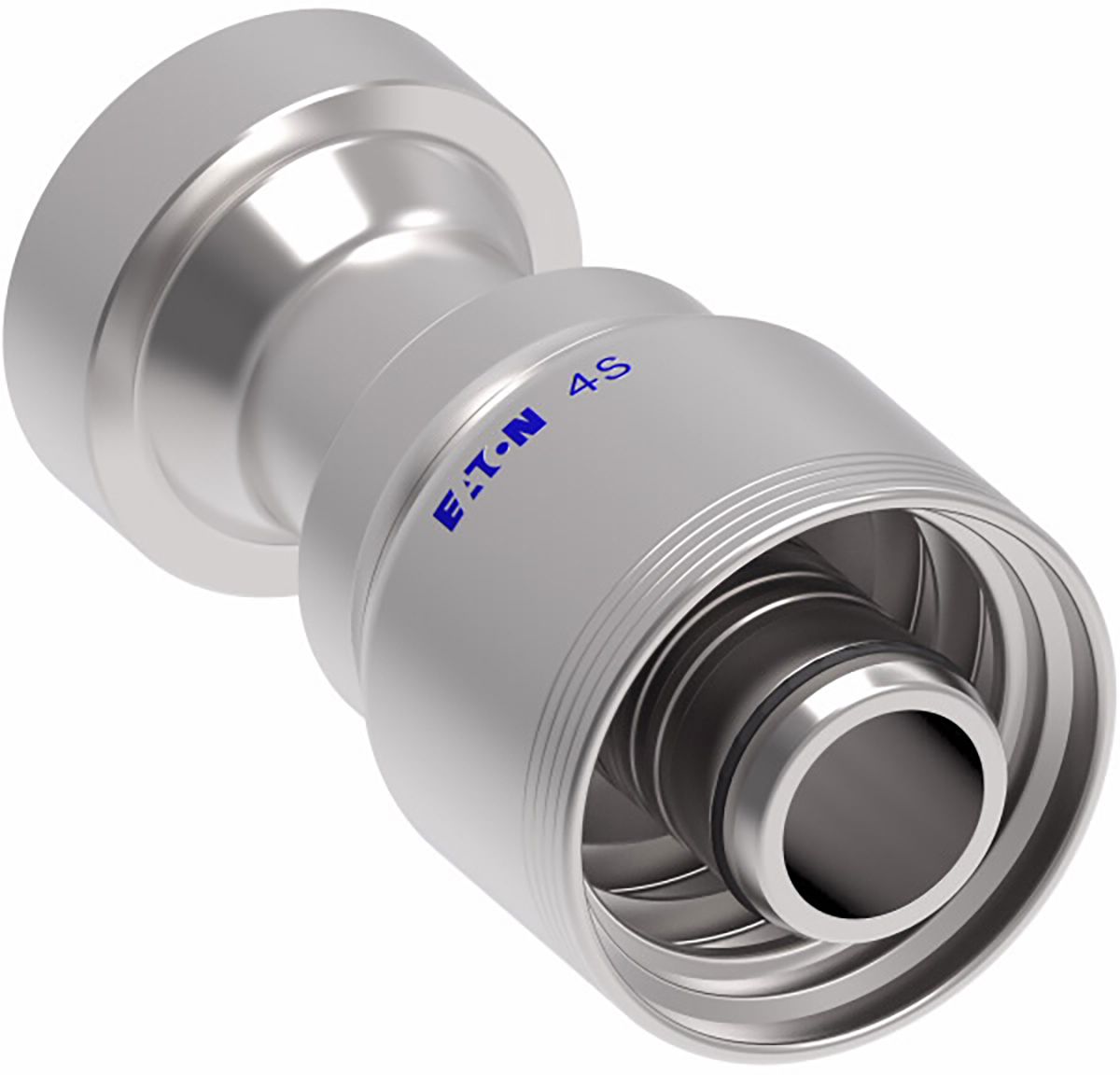

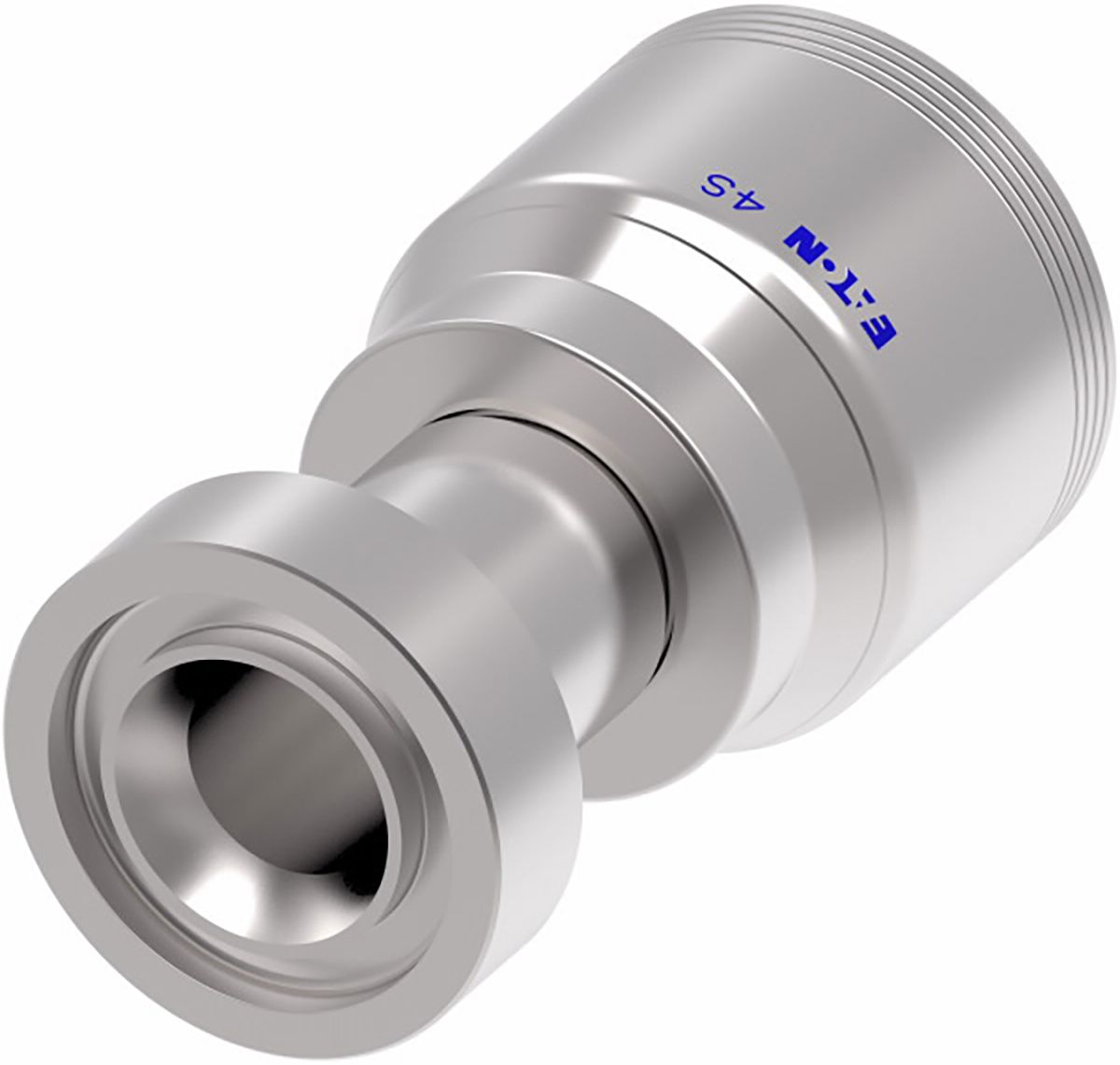

4S Series Crimp-On Hose End 1 x 2.13"
(Pack of
1.0)
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
KH Series Crimp-On Elbow Flare 90° 3/8" x 9/16-18
Item#: 88380KH
Couldn't load pickup availability
Crimp-On Hose Coupling 1/4" x 7/16-20
Item#: 88357KH
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Item#: 88337KH
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Item#: 50799 08
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Item#: 52093
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Item#: 16608
Couldn't load pickup availability
Hose Clamp 301 SS 1-13/16 to 2-3/4"
Item#: 87142
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Item#: 91785
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Item#: 16615
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: 88435
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Item#: FA88446
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Item#: 53981
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543007 |
|---|---|
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Fitting End Type | Flanged |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 2.13 (-20) |
| Weatherhead No. | 4S20CT16 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 4.13 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.49 lb |
