Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Hose End 3/4 x 2"
End Fittings

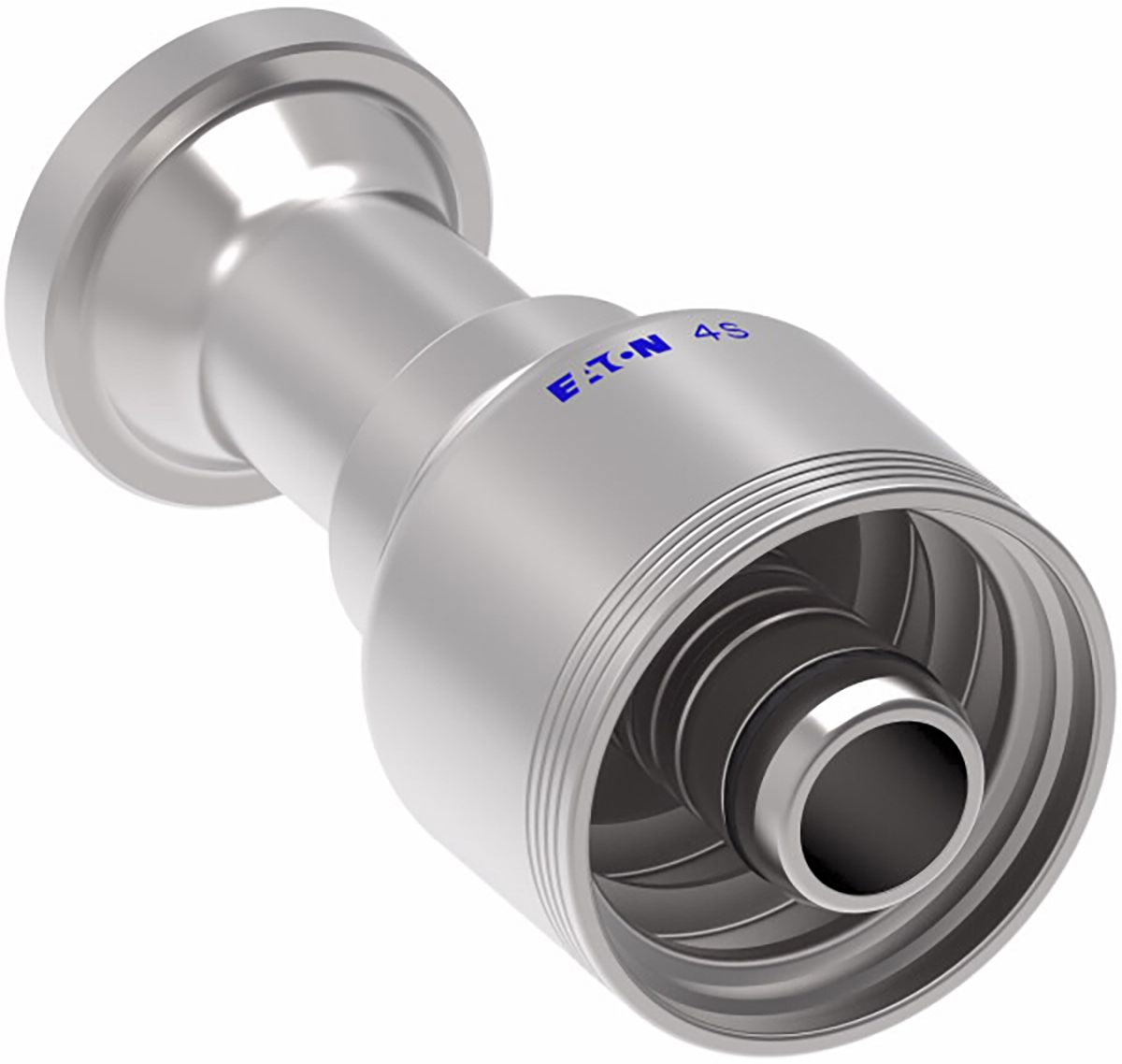

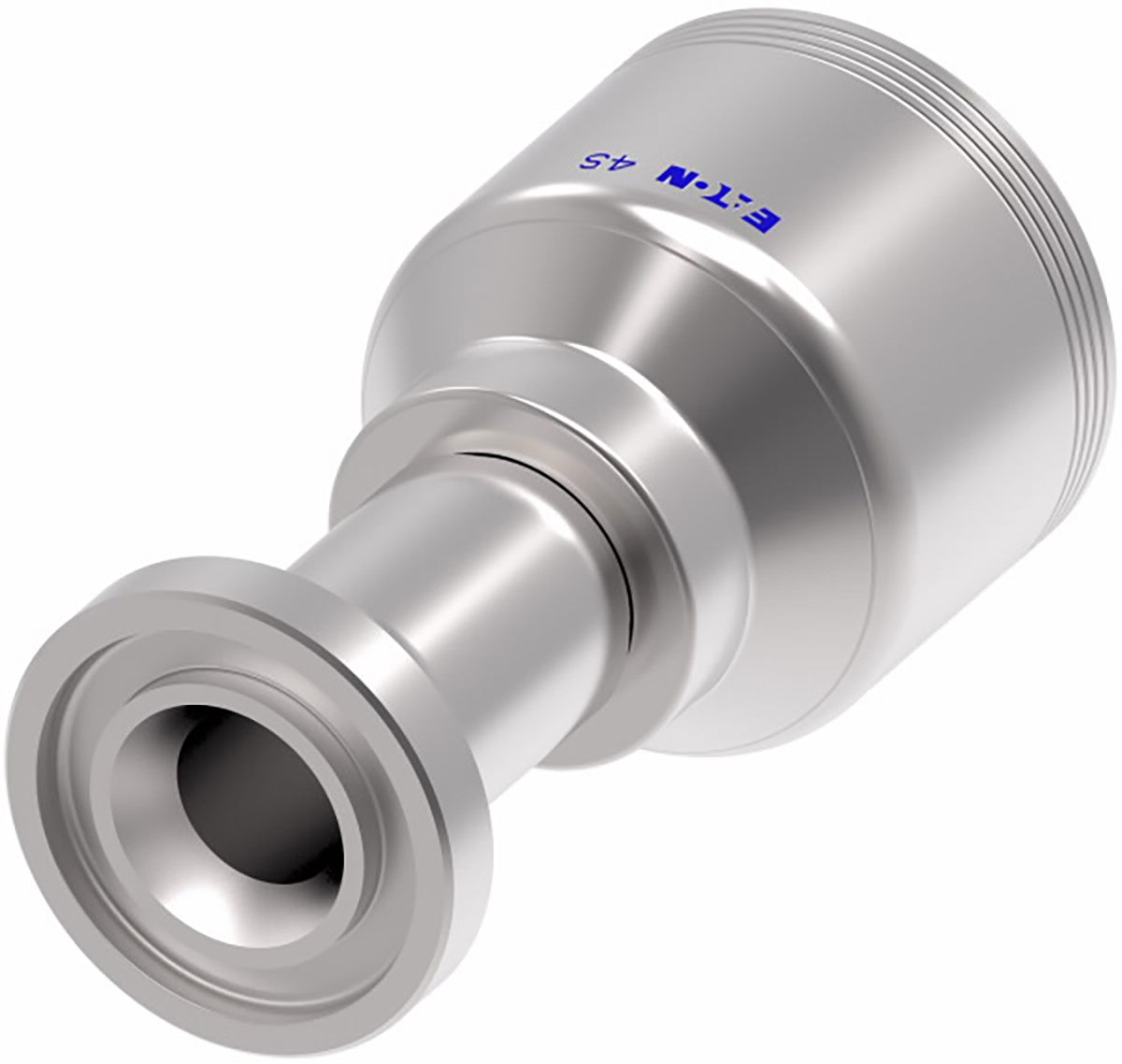

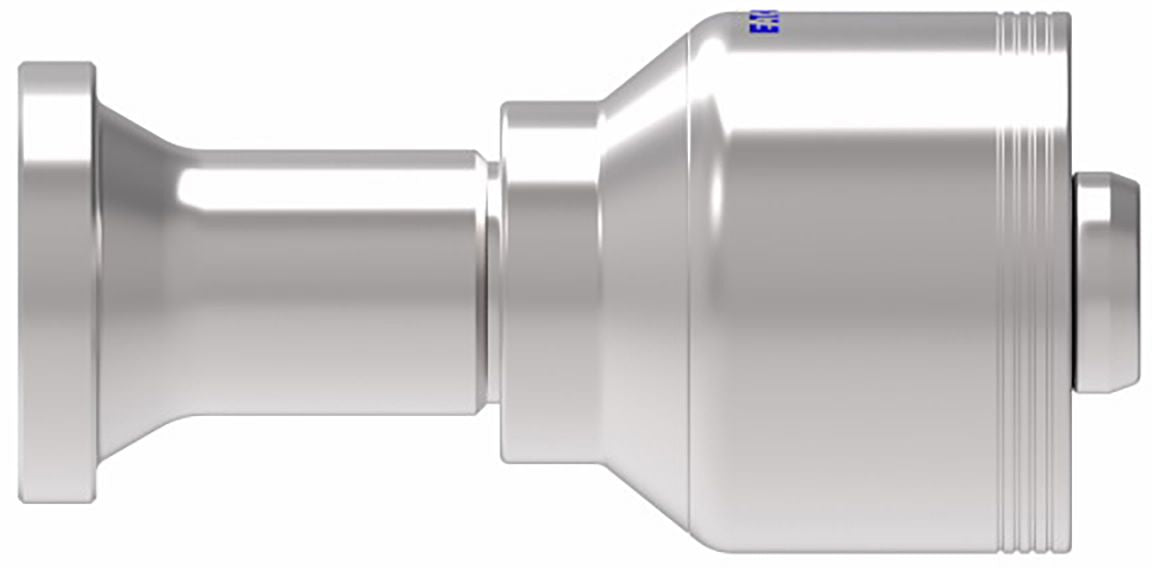

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Flanged SAE Code 61, 3/4 (-12) x 2 (-20)
(Pack of 1)

Item#: 1542989

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-27

Frequently Bought Together


Z Series Crimp-On Hose End 5/8" x 1-14

Item#: 16713

Z Series Crimp-On Elbow 90° 3/8" x 11/16-16

Item#: 16742

MegaCrimp Crimp-On Coupling 1/2" x 1/2-14

Item#: 62825

Hydraulic Quick Connect Coupler 1/2" x 1/2-14

Item#: 84601

Crimp-On Coupling 1/2" x 13/16-16

Item#: 51142KH

Face Seal O-Ring Buna-N 0.489 x 0.07"

Item#: 52094

Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"

Item#: 88719

Pipe Coupling Brass 1/2-14 x 1/2-14

Item#: 5291

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Item#: 53985

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1542989
Manufacturer Model #: 4S20FL12
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/4 (-12) "
Dash Size -12
Fitting End Type Flanged
Fitting Angle Straight
Fitting Dimension B (Working End) 2.00 (-20)
Weatherhead No. 4S20FL12
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 2.42 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.06 lb
