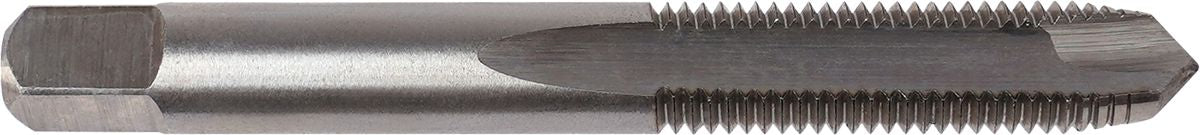

5/16"-24 Plug Hand Tap, Spiral Point, HSS
(Pack of
1)
SKU:PM08230404 Item#: PM08230404
High Speed Steel (HSS) Taps last longer than carbon steel taps and cut a broader variety of metals, including: carbon steel, low-alloy steel, 300-series stainless steel, aluminum, copper, brass, bronze and more. Using tapping fluid is always recommended.
• Molybdenum Rich Tool Steel - Delivers longer life and stronger torsion strength to resist breaking
• Spiral Point - Applied to all sizes of PLUG taps to push cuttings ahead of the tap
• Precision Ground Threads - ASME B94.9, Thread Class Limit: H2 (#6, 8, 10), H3 (#12 and above)
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Jobber Length Drill Bit HSS 9/32"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Maroon
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/8"
Couldn't load pickup availability
4-Flute HSS Hand Tap Kit 1/2-13
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap M10 x 1.5
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap M8 x 1.25
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
HSS Spiral Point Hand Tap 6-32
Couldn't load pickup availability
HSS Combination Drill-Tap 10-32
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 9/16-12
Couldn't load pickup availability
18" Locking Smooth Operator Clamp
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/16"
Couldn't load pickup availability
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
Couldn't load pickup availability
Product Description
High Speed Steel (HSS) Taps last longer than carbon steel taps and cut a broader variety of metals, including: carbon steel, low-alloy steel, 300-series stainless steel, aluminum, copper, brass, bronze and more. Using tapping fluid is always recommended.• Molybdenum Rich Tool Steel - Delivers longer life and stronger torsion strength to resist breaking
• Spiral Point - Applied to all sizes of PLUG taps to push cuttings ahead of the tap
• Precision Ground Threads - ASME B94.9, Thread Class Limit: H2 (#6, 8, 10), H3 (#12 and above)
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | PM08230404 |
|---|---|
| Type | Fractional |
| Style | Plug |
| Material | High Speed Steel |
| Diameter | 5/16 " |
| Decimal Equivalent | 0.3125 " |
| Pitch | 24 |
| Flutes | 3 |
| Thread Length | 1-1/8 " |
| H Limits | 3 |
| Recommended Drill Size | I |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
