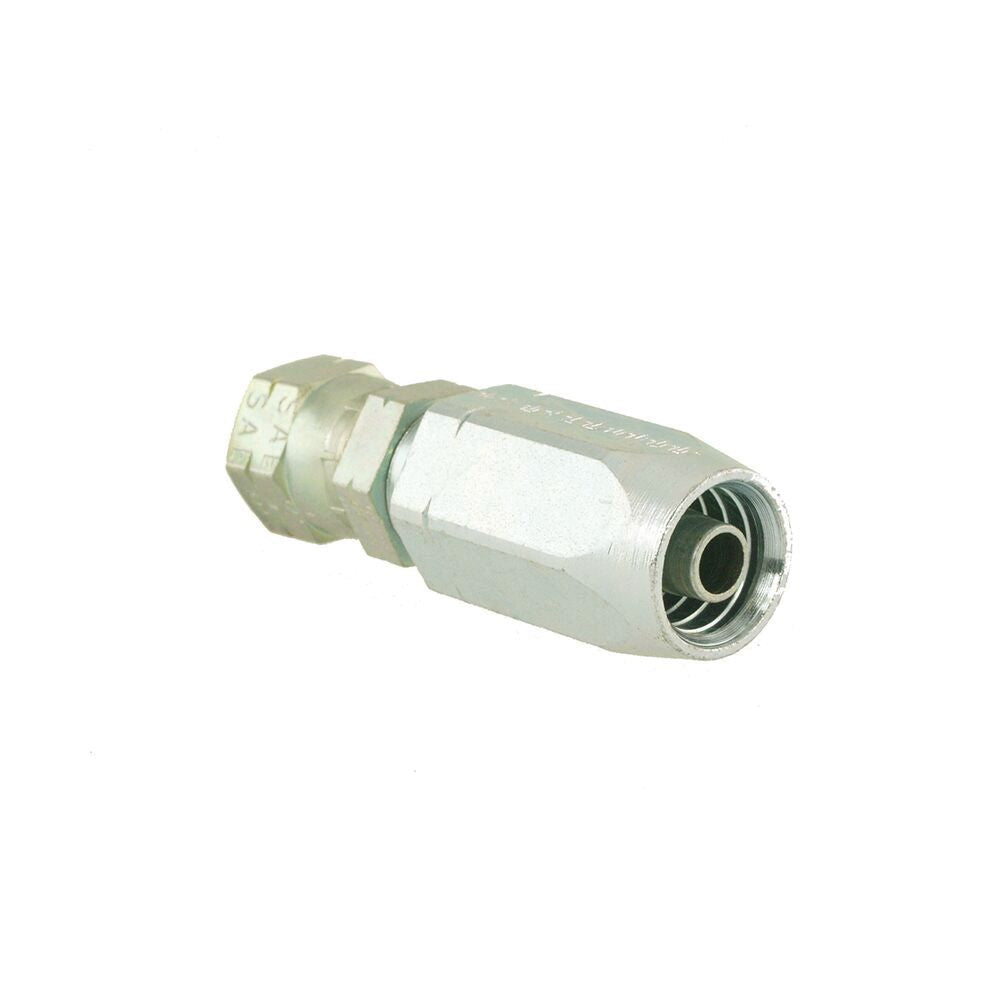

51 Series Hydraulic Field Attachable Hose End, Straight, Carbon Steel, Female Swivel JIC 37° Flare, 1/4 (-4) x 9/16-18 (-6)
(Pack of
2)
SKU:95331 Item#: 95331
For use with Medium Pressure, Non-Conductive Hose 518C (Nos. 95346, 95347, 95348 and Twin-Line Nos. PL95349B and PL95350B), and Medium Pressure Thermoplastic Hose (Nos. 88611, 88612, 88614, 88615 and Twin-Line No. PL90500B).
Frequently Bought Together
Z Series Crimp-On Hose End 5/8" x 1-14
Item#: 16713
Couldn't load pickup availability
Z Series Crimp-On Elbow 90° 3/8" x 11/16-16
Item#: 16742
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 1/2" x 1/2-14
Item#: 62825
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/2" x 1/2-14
Item#: 84601
Couldn't load pickup availability
Crimp-On Coupling 1/2" x 13/16-16
Item#: 51142KH
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.489 x 0.07"
Item#: 52094
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Item#: 88719
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Item#: 5291
Couldn't load pickup availability
Pipe Coupling Brass 1/4-18 x 1/4-18
Item#: 5289
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Item#: 84931
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Item#: A104
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Item#: 53985
Couldn't load pickup availability
Product Description
For use with Medium Pressure, Non-Conductive Hose 518C (Nos. 95346, 95347, 95348 and Twin-Line Nos. PL95349B and PL95350B), and Medium Pressure Thermoplastic Hose (Nos. 88611, 88612, 88614, 88615 and Twin-Line No. PL90500B).Technical Specifications
| Item#: | 95331 |
|---|---|
| Manufacturer Model #: | 20651-6-4 |
| Manufacturer Series Number | 51 Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Female |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 9/16-18 (-6) |
| O.D. Tube Size | 3/8 |
| Size | (-4)X(-6) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.31 lb |
Product Restrictions
