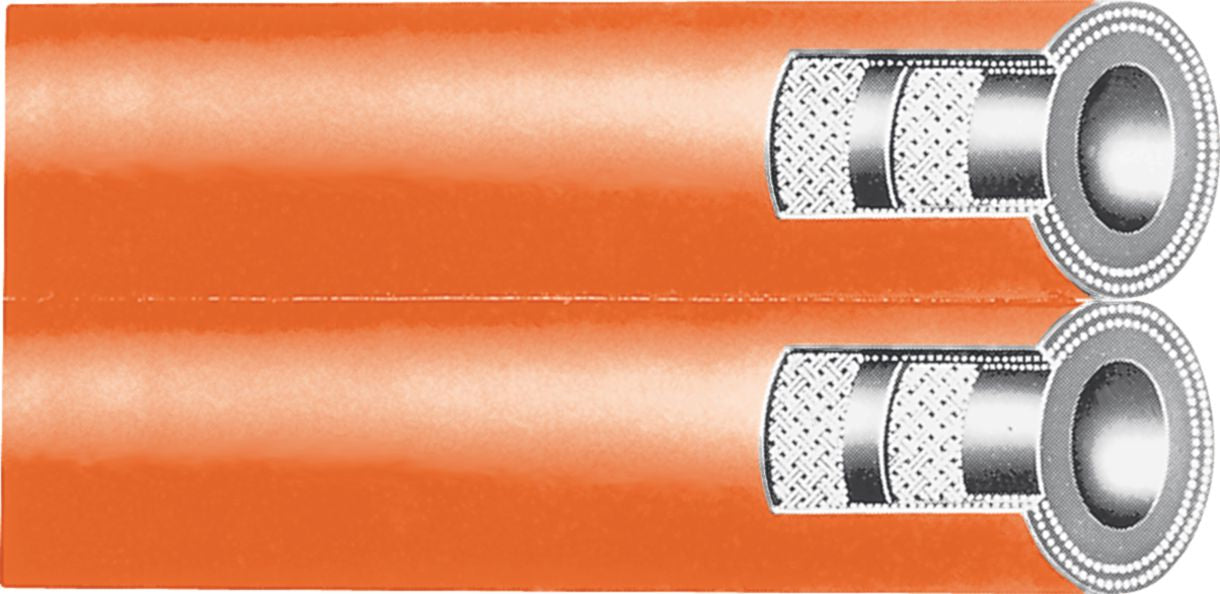

Orange 518C Thermoplastic Hose Non-perforated Proprietary Blend PFX Fiber Polyester SAE 100R7 NC 3000 psi 3/8 (-6)
(Pack of
250)
SKU:PL95349B Item#: PL95349B
A solid choice for optimum kink resistance, flexibility and high voltage tolerance. Best for hydraulic circuits and systems found on utility vehicles and equipment where exposure and contact with high voltage may be encountered.
• Elastomeric core, fiber reinforcement, abrasion-resistant special PFX orange cover• 55 Series hose ends
SAE 100R7
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Limited to 135°F (57°C) for synthetic hydraulic and water-based fluids• Meets SAE J517 for less than 50 micro-amps leakage under 75,000V per foot• Meets or exceeds Ontario Hydro electrical standards• Complies with ANSI A92.2 for vehicle-mounted aerial devices
Product Description
A solid choice for optimum kink resistance, flexibility and high voltage tolerance. Best for hydraulic circuits and systems found on utility vehicles and equipment where exposure and contact with high voltage may be encountered.• Elastomeric core, fiber reinforcement, abrasion-resistant special PFX orange cover• 55 Series hose ends
SAE 100R7
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Limited to 135°F (57°C) for synthetic hydraulic and water-based fluids• Meets SAE J517 for less than 50 micro-amps leakage under 75,000V per foot• Meets or exceeds Ontario Hydro electrical standards• Complies with ANSI A92.2 for vehicle-mounted aerial devices
Technical Specifications
| Item#: | PL95349B |
|---|---|
| Type | Thermoplastic Hose |
| Category / Performance | Medium Pressure - Non-Conductive Twin Line |
| Industry Rating 1 | SAE 100R7 NC |
| Industry Rating 2 | ANSI A92.2 |
| Manufacturer Series Number | 518C |
| Manufacturer Series Name | Parflex |
| Dash Size | -6 |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 9,000 PSI |
| Minimum Bend Radius | 2 " |
| Inner Tube Material | Polyester |
| Hose Reinforcement | Fiber |
| Hose Cover Material | Non-perforated Proprietary Blend PFX |
| Fitting Series | 51 |
| Temperature | -40F to +212F |
| Size | 3/8 (-6) |
| Swage Die Selection | 88805 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
