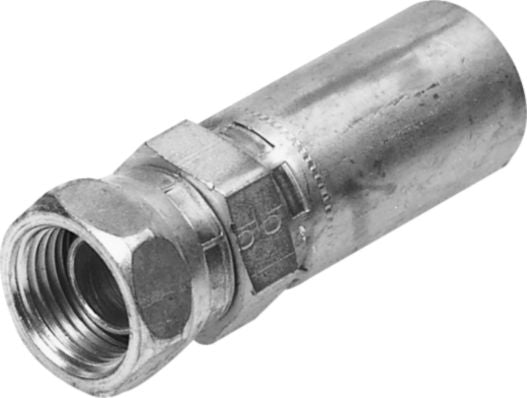

55 Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel Pipe NPTF, 5/16 (-5) x 1/4-18 (-4)
(Pack of
5)
SKU:88846 Item#: 88846
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.
Frequently Bought Together
Crimp-On Hose Coupling 1/2" x 7/8-14
Item#: 88365KH
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 3/4-16
Item#: 88361KH
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 1/2" x 3/4-16
Item#: 62885
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Item#: 86153
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.644 x 0.087"
Item#: 93617
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 13/16-16
Item#: 16709
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Item#: 5363
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Item#: 5365
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/4"
Item#: 86726
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Item#: 92822
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Item#: DA6152
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Item#: DY89320050
Couldn't load pickup availability
Product Description
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.Technical Specifications
| Item#: | 88846 |
|---|---|
| Manufacturer Model #: | 10755-4-5 |
| Manufacturer Series Number | 55 Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 5/16 (-5) " |
| Dash Size | -5 |
| Gender | Female |
| Fitting End Style | Pipe NPTF |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1/4-18 (-4) |
| O.D. Tube Size | 1/4 |
| Pusher Part Number | 88791 |
| Die Part Number | 88804 |
| Size | (-5)X(-4) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.95 lb |
