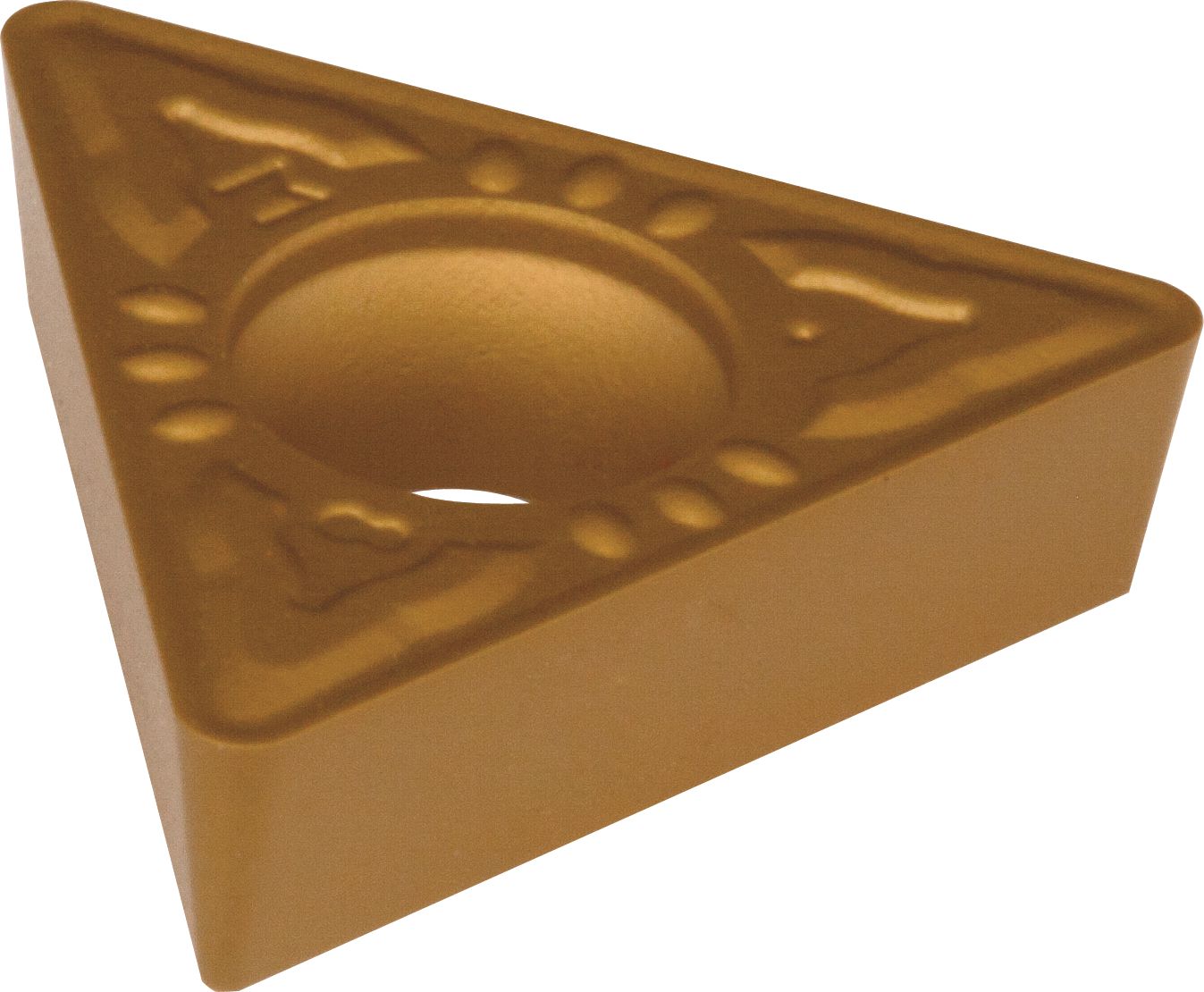

Positive Turning Insert, Neutral, Carbide, 60° Triangle, 0.433" Length, 0.25" Inscribed Circle, 0.0312" Insert Tip Radius
(Pack of
10)
SKU:1353741 Item#: 1353741
Best for Alloy Steel - Universal
Frequently Bought Together
Jobber Length Drill Bit HSS 3/16"
Item#: 84729M06
Couldn't load pickup availability
Cut-Off Wheel for Right Angle Grinder 4-1/2"
Item#: 60773M12
Couldn't load pickup availability
Mounted Flap Wheel 1"
Item#: 92017
Couldn't load pickup availability
60° Triangle Positive Turning Insert 0.629"
Item#: 1353764
Couldn't load pickup availability
60° Triangle Positive Turning Insert 0.629"
Item#: 1353763
Couldn't load pickup availability
80° Diamond Negative Turning Insert 0.472"
Item#: 1353707
Couldn't load pickup availability
Toolholder Block Steel 0.750"
Item#: 1353627
Couldn't load pickup availability
Cut-Off Carbide Insert Neutral 0.120"
Item#: 1353632
Couldn't load pickup availability
Toolholder Triangle Insert Right Hand Style N
Item#: 1353265
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Item#: 80933
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: 88435
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Item#: 53983
Couldn't load pickup availability
8Pc Metric Mini Double Head Wrench Set
Item#: DY89250450
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Item#: 17416
Couldn't load pickup availability
Jobber Length Drill Bit HSS 13/64"
Item#: 84730
Couldn't load pickup availability
Product Description
Best for Alloy Steel - UniversalTechnical Specifications
| Item#: | 1353741 |
|---|---|
| Type | Insert |
| Insert | TCMT |
| Chip Breaker Code | PEM |
| Compatible Materials | Stainless Steel,Carbon & Alloy Steel |
| Shape | 60° Triangle |
| Direction | Neutral |
| Clearance Angle | 7° Positive |
| Grade | DPC25UT |
| Material | Carbide |
| Coating | CVD |
| Effective Cutting Edge Length | 0.216 " |
| Length | 0.433 " |
| Depth of Cut | 0.118 " |
| Feed Rate | 0.2 |
| Surface Feet Per Minute | 950 |
| Thickness | 0.0937 " |
| I.C. (Inscribed Circle) | 0.25 " |
| Insert Tip Radius | 0.0312 " |
| UNSPSC #: | 27111701 |
| TAA Compliant: | Yes |
