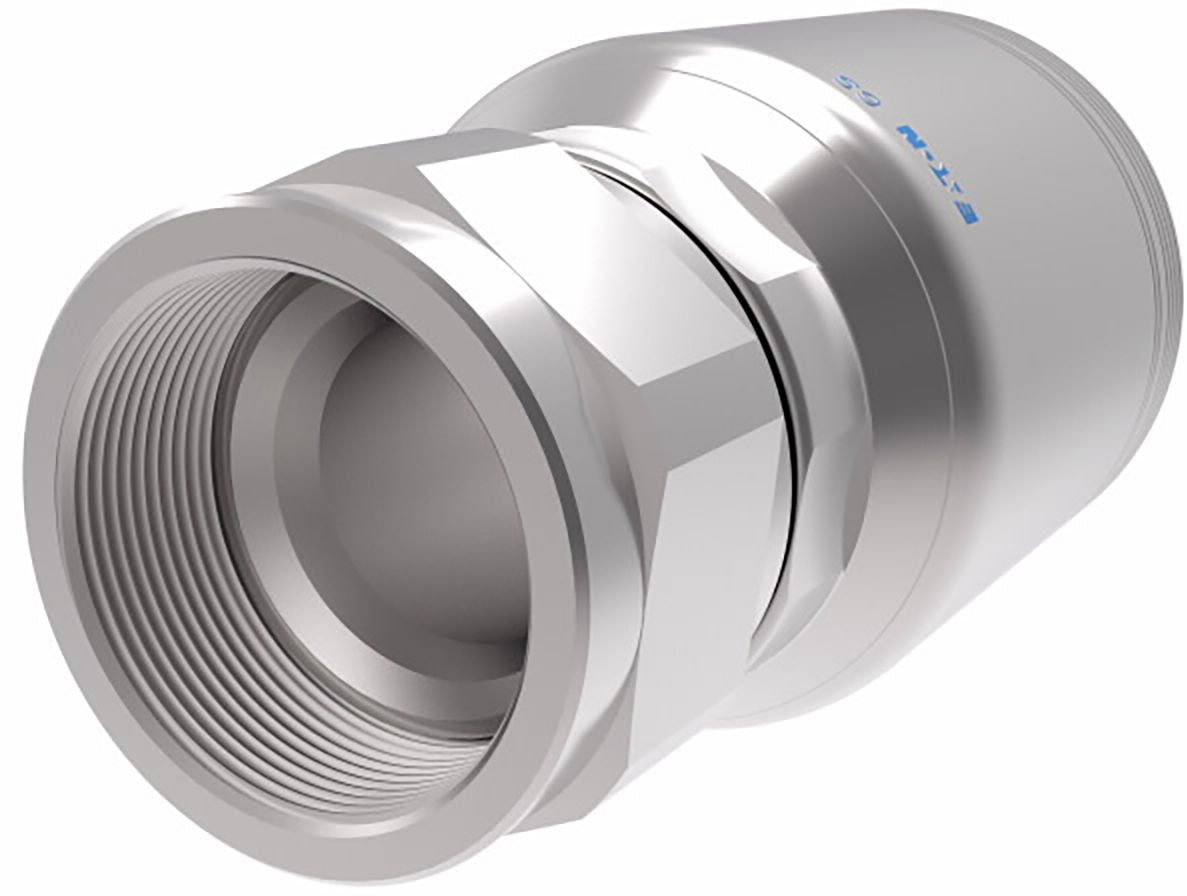

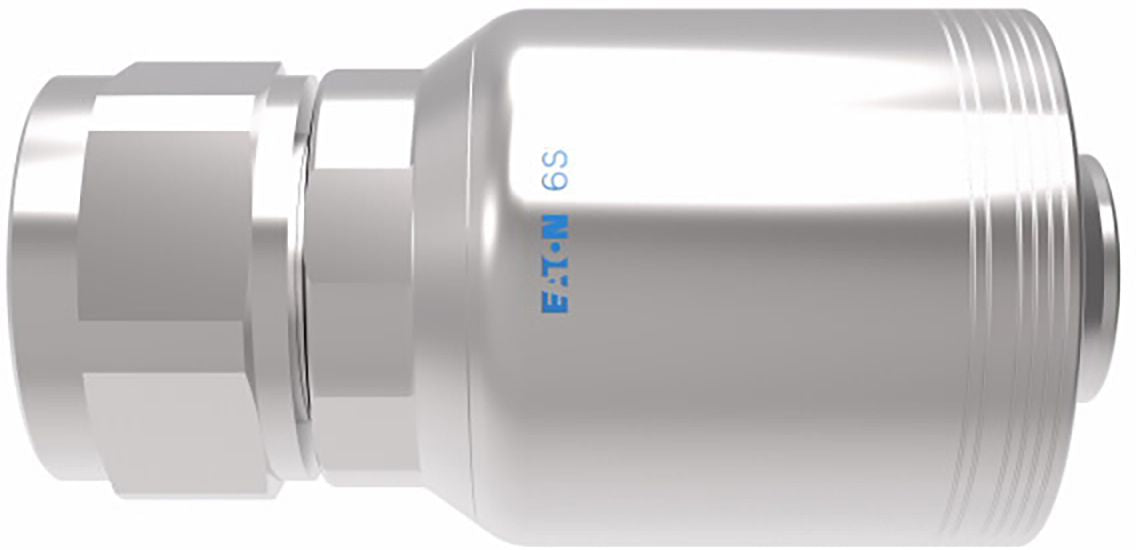

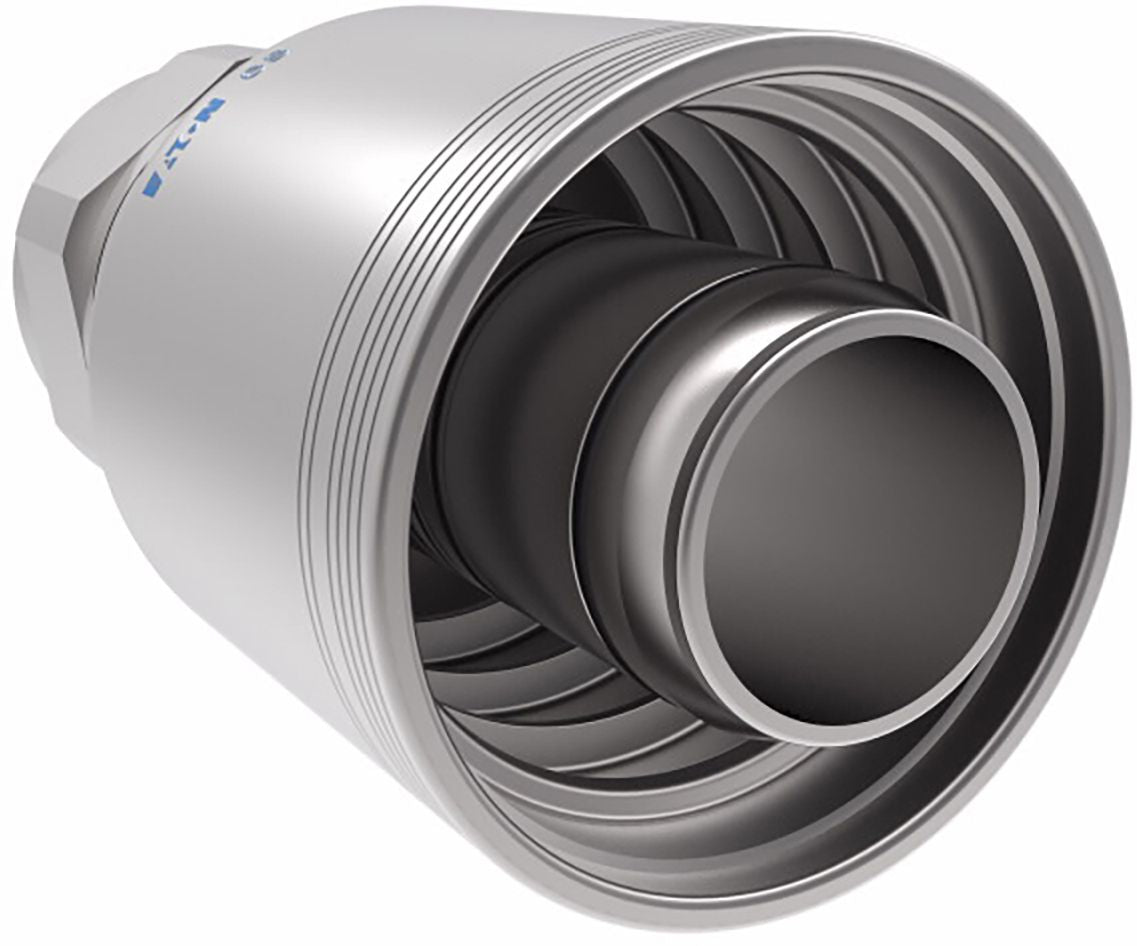

6S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIC 37°, 1-1/2 (-24) x 1-7/8-12 (-24)
(Pack of
1)
SKU:1543049 Item#: 1543049
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Item#: 62893
Couldn't load pickup availability
Crimp-On Coupling 1/2" x 13/16-16
Item#: 51142KH
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-3/16-12
Item#: 16716
Couldn't load pickup availability
Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare
Item#: 86201
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Item#: 86199
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Item#: 62379
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Item#: 91797
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Item#: 5290
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Item#: 86723
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: 88435
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Item#: 53983
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Item#: 53980
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543049 |
|---|---|
| Manufacturer Model #: | 6SA24FJ24 |
| Manufacturer Series Number | 6S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/2 (-24) " |
| Dash Size | -24 |
| Gender | Female |
| Fitting End Type | SAE |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-7/8-12 (-24) |
| Weatherhead No. | 6SA24FJ24 |
| SAE Code | J1176 |
| Hex Size | 2.25 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.24 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 3.4 lb |
