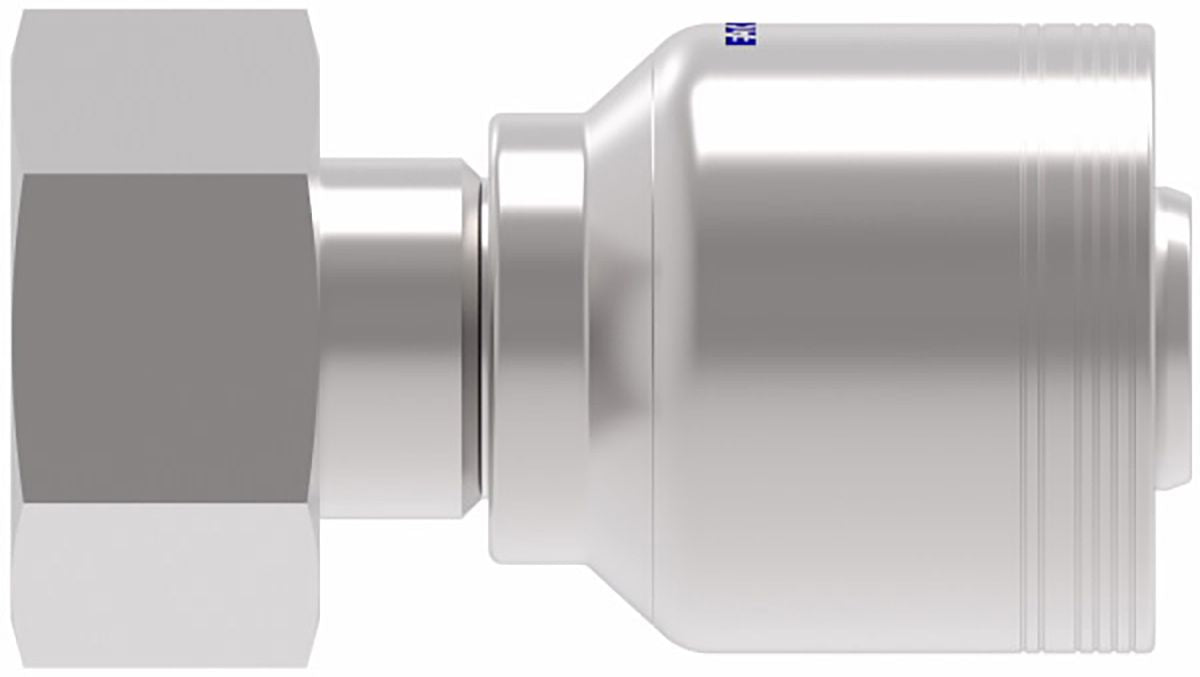

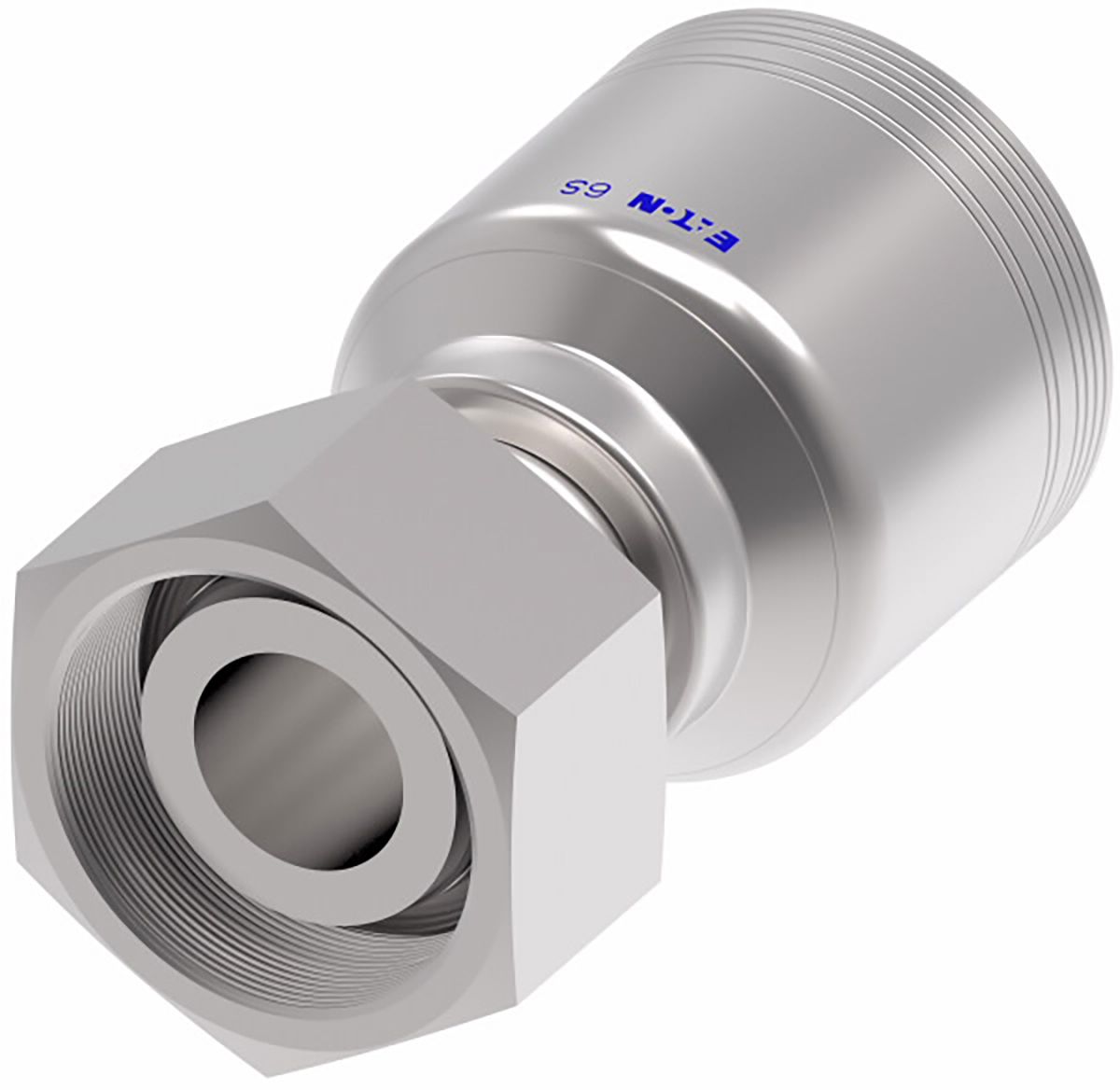

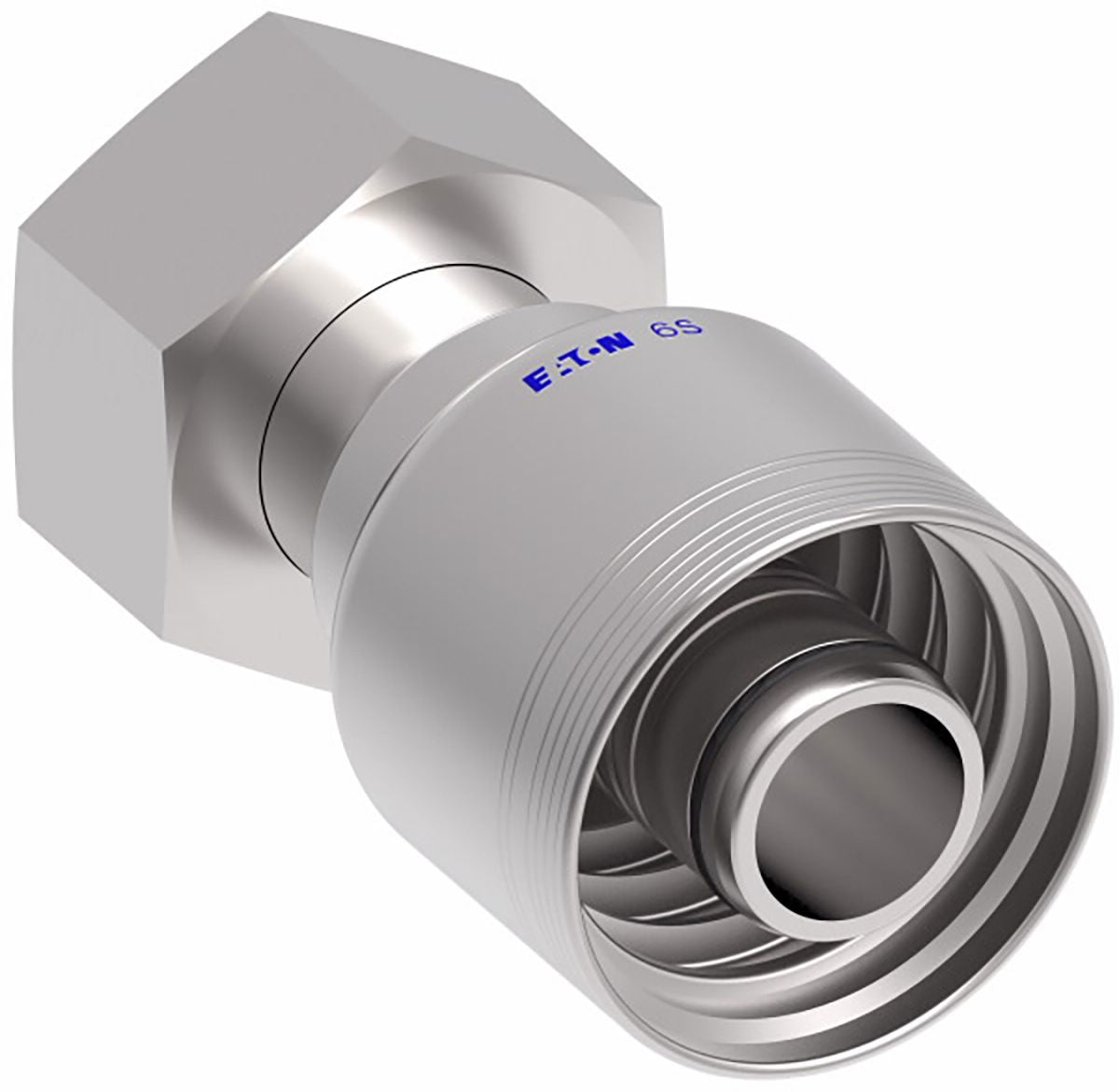

6S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel DIN 24° Seat, Light Pattern, 1-1/4" x M52-2
(Pack of
1)
SKU:1543014 Item#: 1543014
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Item#: 16615
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16610
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Item#: 16706
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Item#: 16615
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16610
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Item#: 16706
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Item#: 91819
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: 11915
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Item#: 86327
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Item#: 94612
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Item#: 1368141
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543014 |
|---|---|
| Manufacturer Model #: | 6S32DS20 |
| Manufacturer Series Number | 6S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Gender | Female |
| Fitting End Type | Metric |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M52 x 2.0 |
| Weatherhead No. | 6S32DS20 |
| SAE Code | J1176 |
| Hex Size | 60 mm |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.22 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.57 lb |
