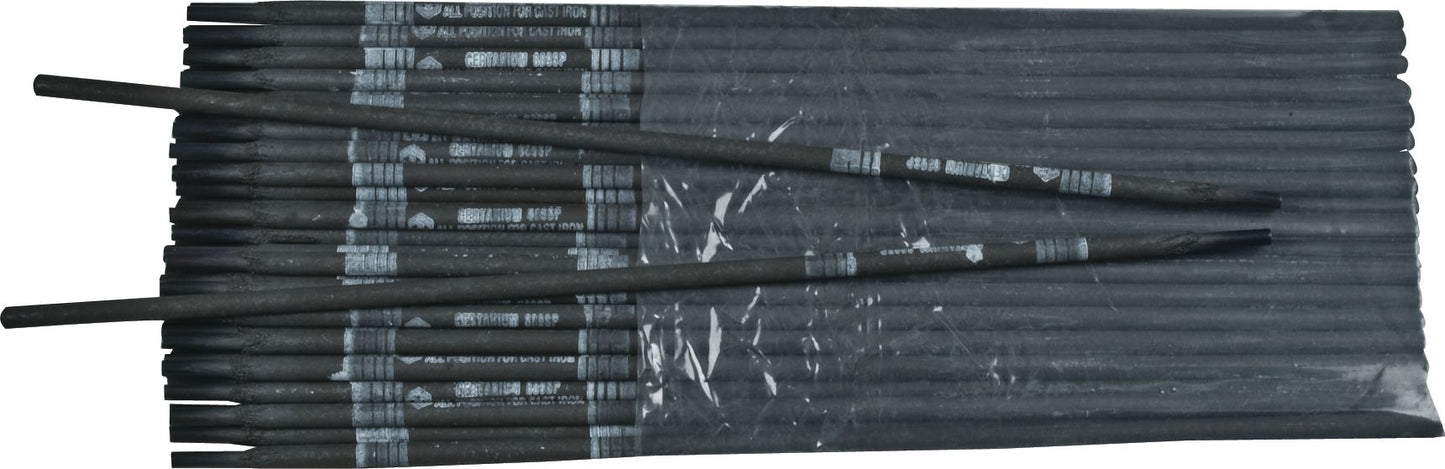

889 Cast Iron Stick Rod Electrode, Flux Coated, 180 to 222 HB Hardness, 60 to 100 Amps, DCRP/DCSP/AC Polarity, 3/16"
(Pack of 10)

SKU:P12009 Item#: P12009

Certanium®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Check Availability

Quantity

Frequently Bought Together

130T Machinable Cast Iron Tig Alloy 3/32X36

Item#: EG2005130T

211 Cast Iron TIG Wire 1/16"

631 Cast-Weld Fc Alloy Wire .035X11LB

Item#: EG63140035

SAE/Metric 3/8 Socket Blow Molded Case (*Empty Case Only)

Item#: DY75080223

SAE Interchangeable Nut Driver Set 11Pc

Item#: DY89320045

2.1 Round Head Ratchet 3/8 Drive 168 Tooth

Item#: DY89285105

Butt Connector 22 to 18 AWG Red

Waterproof Work Aqua Light 66 LED

Item#: DY80000105

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

E7018 Mild/Carbon Steel Stick Electrode 1/8"

Oxy Acetylene Fuel and Oxygen Quick Connector

333 Dissimilar Steel Stick Rod Electrode 1/8"

331 Mild and Carbon Steel MIG Welding Wire 0.03"

510 Aluminum TIG Wire 1/8"

E7018 Mild/Carbon Steel Stick Electrode 3/32"

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Technical Specifications

Item#:	P12009
Welding Process	Stick
Type	Flux Coated
Diameter	3/16 "
Tensile Strength	84,000 PSI
Base Metal	Cast Iron
Hardness	180-222 BHN
Polarity	DCRP/DCSP/AC
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	10.53 lb
