Tripod, Aluminum, Stainless Steel, Rubber, 5000 lbs. Breaking Strength, 8 ft
(Pack of
1)
SKU:1648712 Item#: 1648712

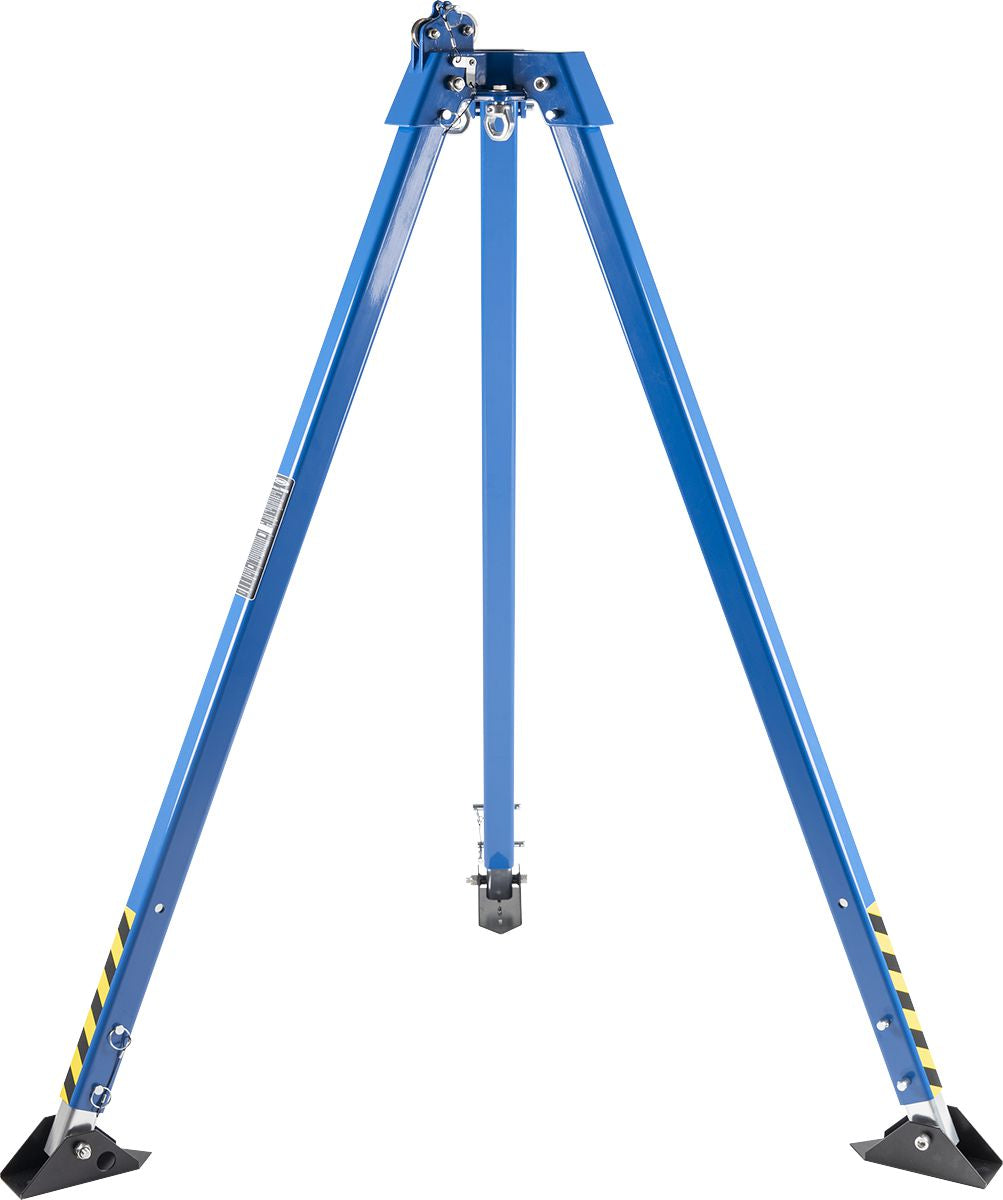

The Werner 8ft Aluminum Tripod allows for lifting and lowering of personnel and materials into confined spaces from above. Its lightweight design allows for quick installation and tear down. The Tripod extends from 58 inches to 97 inches in height for installation over openings with a maximum diameter of 42 inches when fully extended. The head of the Tripod includes two 5/8-inch forged steel eye bolts. The eye bolts are for direct connection of fall arrest, suspension, and rescue subsystems. The feet on the Tripod have rubber skid pads and a safety chain to help prevent the legs from spreading apart. The Tripod meets the requirements of ANSI Z359.18-2017 Type A.
• High strength, lightweight aluminum design
• Extends from 58 inches to 97 inches in height
• Quick installation over openings with a maximum diameter of 42 inches
• Two 5/8-inch forged steel eye bolt connection points
• Feet have rubber pads to reduce the potential to skid
• Includes a safety chain at base
• Gear Ratio is 6.5:1
• Meets ANSI Z359.18-2017 Type A and OSHA regulations
Frequently Bought Together
A112003 3ft Cable Choker (5/16in Vinyl Coated Cable, O-Rings)
Couldn't load pickup availability
Squids 3755 Self, Adhering Tool Tethering Tape
Couldn't load pickup availability
A100531 General Purpose Bronze Steel Twin-Leg Pin Adaptor
Couldn't load pickup availability
R431006TB 9ft Bantam Twinleg Tie-Back Web Self-Retracting Lifeline w/Steel Tie-Back Snap Hook
Couldn't load pickup availability
R431006-SR 6ft Bantam Twinleg Self-Retracting Lifeline w/Steel Rebar
Couldn't load pickup availability
LITEFIT H312005 Standard (Back D-Ring) Harness (XXL)
Couldn't load pickup availability
Diamond Texture Premium Nitrile Gloves, Orange, 8 Mil, Large, 100/Box
Couldn't load pickup availability
Pavon Clear Anti-Fog Lens, Frosted Clear Frame Safety Glasses - BH511AF
Couldn't load pickup availability
Diamond-Textured Nitrile Gloves, Orange, 6 Mil, X-Large, 1,000/Case
Couldn't load pickup availability
WypAll X80 ShopPro Towel 12.5 x 13.4"
Couldn't load pickup availability
Auto-Darkening Panoramic View Welding Helmet
Couldn't load pickup availability
Diamond Texture Premium Nitrile Gloves, Orange, 8 Mil, X-Large, 90/Box
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Product Description
The Werner 8ft Aluminum Tripod allows for lifting and lowering of personnel and materials into confined spaces from above. Its lightweight design allows for quick installation and tear down. The Tripod extends from 58 inches to 97 inches in height for installation over openings with a maximum diameter of 42 inches when fully extended. The head of the Tripod includes two 5/8-inch forged steel eye bolts. The eye bolts are for direct connection of fall arrest, suspension, and rescue subsystems. The feet on the Tripod have rubber skid pads and a safety chain to help prevent the legs from spreading apart. The Tripod meets the requirements of ANSI Z359.18-2017 Type A.• High strength, lightweight aluminum design
• Extends from 58 inches to 97 inches in height
• Quick installation over openings with a maximum diameter of 42 inches
• Two 5/8-inch forged steel eye bolt connection points
• Feet have rubber pads to reduce the potential to skid
• Includes a safety chain at base
• Gear Ratio is 6.5:1
• Meets ANSI Z359.18-2017 Type A and OSHA regulations
Technical Specifications
| Item#: | 1648712 |
|---|---|
| Manufacturer Model #: | T100108 |
| Type | Rescue Equipment |
| Style | Tripod |
| Material | Aluminum/Stainless Steel/Rubber |
| Length | 96 " |
| Approvals | ANSI Z359.18-2017 Type A, OSHA |
| Opening | 42 " |
| Hole Diameter | 5/8 " |
| Load Limit | 5000 lb |
| Height | 58-97 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46182301 |
| TAA Compliant: | Yes |
