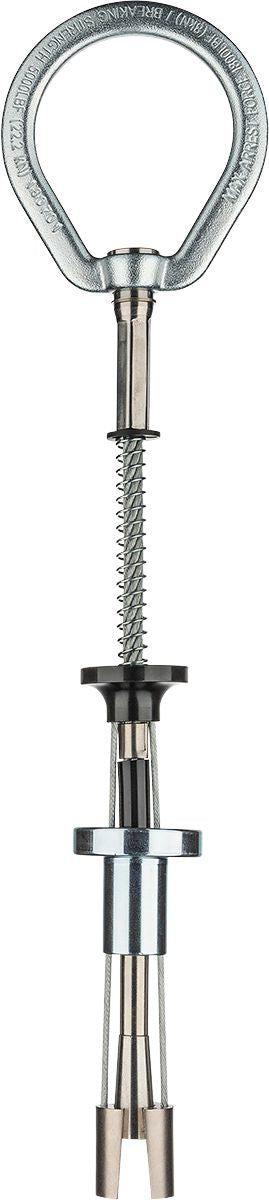

Reusable Concrete Anchor with 2 in. Teardrop D-Ring, 5000 lbs. Breaking Strength, Gray, 3/4 in
(Pack of
1)
SKU:1648240 Item#: 1648240
The Werner Reusable Anchor with 2 inch swiveling forged teardrop D-ring is a lightweight, easy to use bolt providing convenient anchorage in concrete. The anchor requires a pre-drilled hole of 3/4 inch and 3-1/2 inch minimum depth in 3000 psi concrete. It can be used in any direction as a fall protection anchor and is reusable with its easy to insert and remove design. This features a blue trigger and hole plug for easier removal.
• Lightweight design is easy to insert and remove
• Drill hole of 3/4 inch with 3-1/2 inch minimum depth
• Minimum 3000 psi concrete
• Multi-directional use
• Minimum Breaking Strength (MBS): 5,000 pounds
• Meets ANSI and OSHA Standards
Frequently Bought Together
Squids 3770 Tape Measure Holder, Belt Clip
Couldn't load pickup availability
A570004 Stainless Steel Replacement Concrete Bolts for 5K Stainless Steel Mega-Swivel
Couldn't load pickup availability
A570005 Assembly Tool for The Concrete Bolt
Couldn't load pickup availability
R430011-SR 11ft Max Patrol Self-Retracting Lifeline w/Steel Form Hook
Couldn't load pickup availability
R430011-R 11ft Max Patrol Self-Retracting Lifeline w/Aluminum Rebar
Couldn't load pickup availability
C311102 6ft Decoil Adjustable Single Leg Lanyard (Dcell Shock Pack, Snap Hook, 1in Web)
Couldn't load pickup availability
Diamond Texture Premium Nitrile Gloves, Black, 8 Mil, Large, 100/Box
Couldn't load pickup availability
935CH Mechanics Gloves with Adjustable Hook and Loop Wrist Closure
Couldn't load pickup availability
Premium Nitrile Gloves, Orange, 6 Mil, Medium, 100/Box
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Universal Three-Ply Heavyweight Sorbent Pads
Couldn't load pickup availability
Automotive Refinishing Tape 1" x 60 Yards
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Product Description
The Werner Reusable Anchor with 2 inch swiveling forged teardrop D-ring is a lightweight, easy to use bolt providing convenient anchorage in concrete. The anchor requires a pre-drilled hole of 3/4 inch and 3-1/2 inch minimum depth in 3000 psi concrete. It can be used in any direction as a fall protection anchor and is reusable with its easy to insert and remove design. This features a blue trigger and hole plug for easier removal.• Lightweight design is easy to insert and remove
• Drill hole of 3/4 inch with 3-1/2 inch minimum depth
• Minimum 3000 psi concrete
• Multi-directional use
• Minimum Breaking Strength (MBS): 5,000 pounds
• Meets ANSI and OSHA Standards
Technical Specifications
| Item#: | 1648240 |
|---|---|
| Manufacturer Model #: | A515000 |
| Length | 12.8 " |
| Material | Concrete |
| Style | Pin |
| Type | Anchor |
| Color | Gray |
| Closure Type | D-Ring |
| Approvals | ANSI Z359.18-2017, OSHA 1910.140/1926.502 |
| UNSPSC #: | 31162101 |
| TAA Compliant: | Yes |
