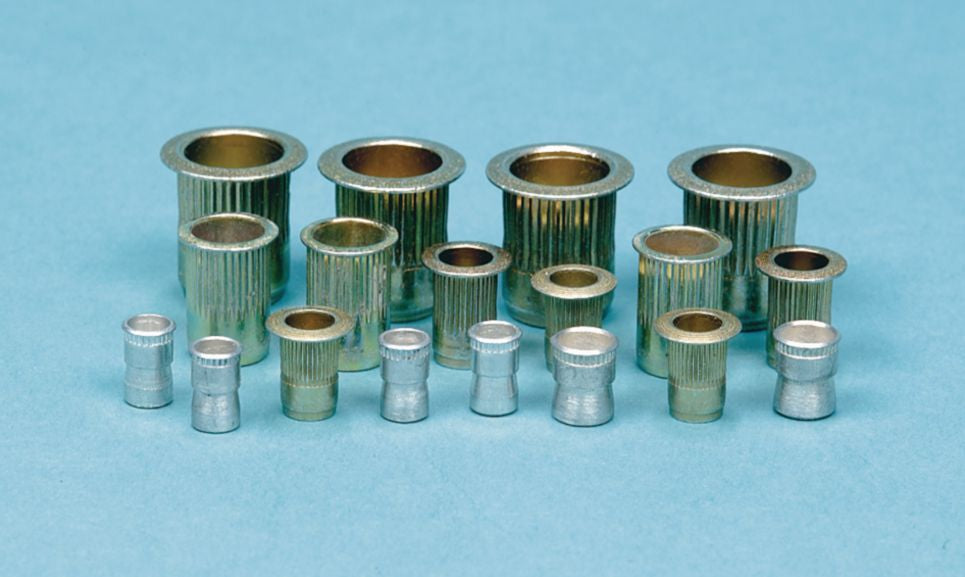

Anchor Nut Insert, Thin Wall, Steel, Zinc Clear Finish, Smooth, Small Flange, Coarse Thread, #6-32, 0.02 to 0.08" Grip, 0.25" Hole

                    (Pack of
                    100)

 Provides additional threads and strength in most metals
 Superior resistance to loosening and vibration
 May be used in blind or thru holes in thin or thick materials
 Thin metal grip range: 0.020" thru 0.150"
 Thick metal grip range: 0.030" thru 0.312"
Designed to provide strong reusable threads for machine screws and smaller cap screws. Works great in situations where it is impossible to get a nut on the screw. Ideal for panel work, door jams and grab handles.
Frequently Bought Together


                      Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability


                      SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability


                      Hex Nut Grade 5 Steel 5/16-18
Couldn't load pickup availability


                      Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability


                      Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability


                      Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability


                      Threaded Insert Thin Wall 5/16-18
Couldn't load pickup availability


                      Blind Rivet Nut Insert Thin Wall 1/4-20
Couldn't load pickup availability


                      9/32 Drill 5mmx.8 Met Thin Thread Cert
Couldn't load pickup availability


                      Diamond Grip II Threaded Insert #6-32
Couldn't load pickup availability


                      Diamond Grip II Threaded Insert #6-32
Couldn't load pickup availability


                      Blind Rivet Nut Insert Thin Wall #10-24
Couldn't load pickup availability
Product Description
 Provides additional threads and strength in most metals Superior resistance to loosening and vibration
 May be used in blind or thru holes in thin or thick materials
 Thin metal grip range: 0.020" thru 0.150"
 Thick metal grip range: 0.030" thru 0.312"
Designed to provide strong reusable threads for machine screws and smaller cap screws. Works great in situations where it is impossible to get a nut on the screw. Ideal for panel work, door jams and grab handles.
Technical Specifications
| Item#: | P57855 |
|---|---|
| Diameter | #6 |
| Thread Pitch | 32 |
| Grip Range | 0.020 - 0.080 " |
| Flange Type | Small Flange |
| Body Type | Smooth |
| Length | 0.385 " |
| Hole Size | 0.250 " |
| Pilot Drill Size | 1/4 " |
| Pilot Drill Number | 84733 |
| Finish | Bright Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31162802 |
| TAA Compliant: | No |
| Weight: | 0.41 lb |
