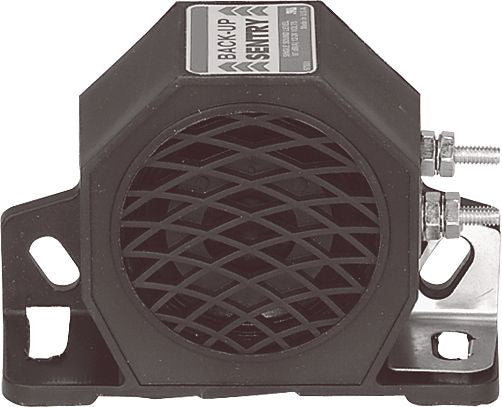

Backup Alarm, 97dB Output, 12-24 Volts DC, Universal Mount, 4 x 2.6 x 1.6"
(Pack of
1)
SKU:97551 Item#: 97551
• Solid state electronics
• Sealed in epoxy against dust, moisture and vibration
• Voltage spike polarity protected
• Positive or negative ground systems
• Current draw is less than 0.5A
• Nylon housing
• Conforms to SAE J994 criteria
• Meets OSHA, Bureau of Mines, GSA “K-Spec” and all state regulations
• Sound ratings are ±4 dB at 4 feet – 60 pulses per minute
• Extreme temperature operating range: –40°F to +185°F (–40°C to +85°C)
For use on light-duty vehicles. Self-grounding. Can be used on UL-approved electrical systems without affecting the approval.
Couldn't load pickup availability
Catalog page#: 23-50
Frequently Bought Together
Backup Alarm 102dB
Couldn't load pickup availability
Backup Alarm 107dB Med/Low Noise
Couldn't load pickup availability
Field-Selectable Backup Alarm
Couldn't load pickup availability
2-Hole Mounting Reflector with Aluminum Housing
Couldn't load pickup availability
Flat Glass Replacement Mirror Head 5"
Couldn't load pickup availability
Convex Center-Mount Spot Mirror Assembly 6"
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 1oz
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 3/4oz
Couldn't load pickup availability
Splash Shield and Fascia Retainer Nylon 1"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Solid state electronics• Sealed in epoxy against dust, moisture and vibration
• Voltage spike polarity protected
• Positive or negative ground systems
• Current draw is less than 0.5A
• Nylon housing
• Conforms to SAE J994 criteria
• Meets OSHA, Bureau of Mines, GSA “K-Spec” and all state regulations
• Sound ratings are ±4 dB at 4 feet – 60 pulses per minute
• Extreme temperature operating range: –40°F to +185°F (–40°C to +85°C)
For use on light-duty vehicles. Self-grounding. Can be used on UL-approved electrical systems without affecting the approval.
Technical Specifications
| Item#: | 97551 |
|---|---|
| Decibel Output | 97 |
| Voltage Requirements | 12 - 24V DC |
| Mounting | Universal Mount, 3" to 3.25" Centers |
| Width | 4 " |
| Height | 2.6 " |
| Depth | 1.6 " |
| Dimensions | 4"W x 2.6"H x 1.6"D |
| UNSPSC #: | 25172100 |
| TAA Compliant: | No |
| Weight: | 0.78 lb |
