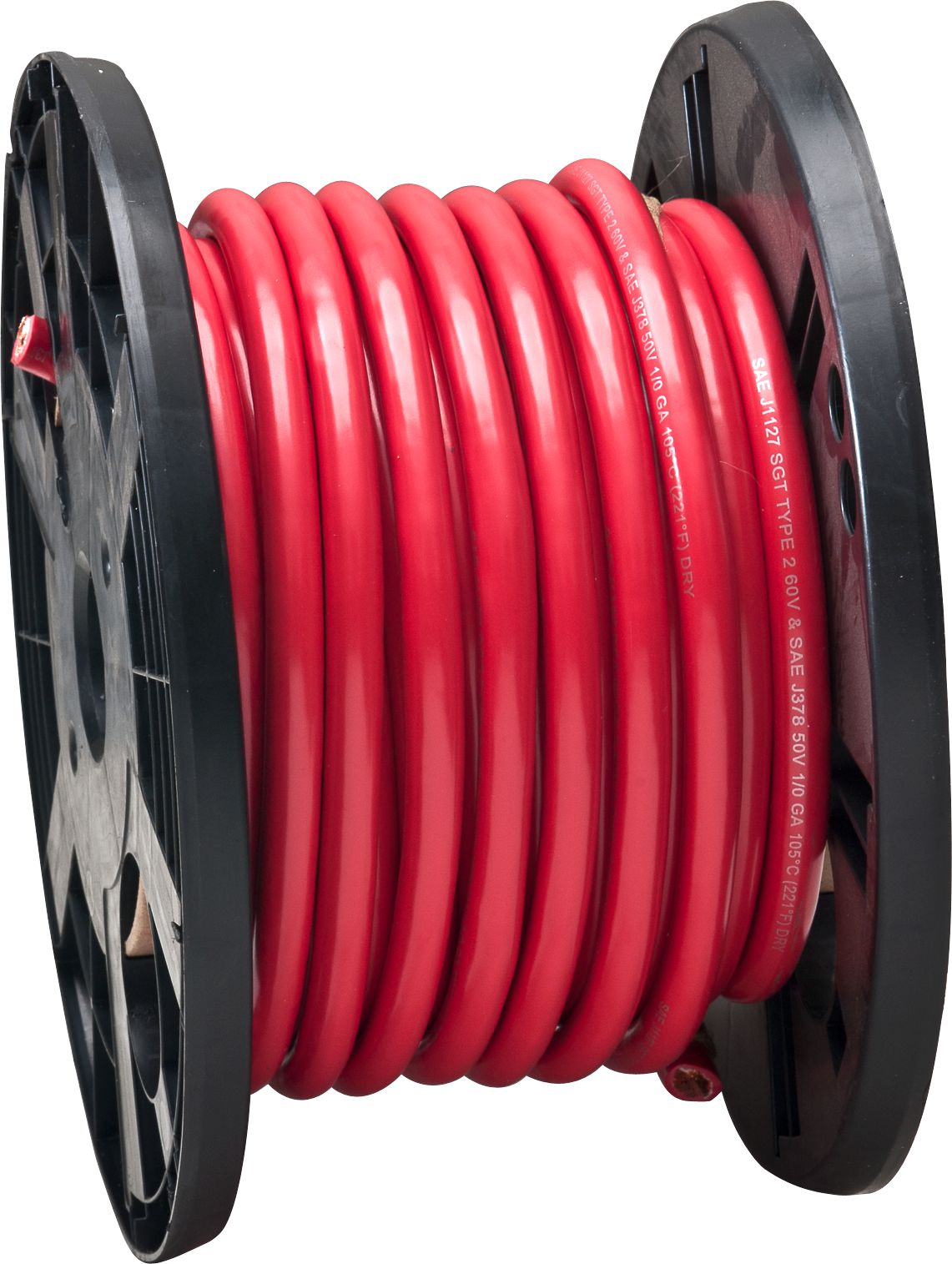

Battery Cable, 1/0 AWG, 50' Length, Red, 50 Volts, White-Crimp Color Code, PVC Insulated, Copper Conductor, Tru-Conduct
(Pack of
1)
• Stranded copper conductors are soft annealed for improved flexibility
• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Frequently Bought Together
Flexible Battery Cable 2/0 AWG Red 25'
Item#: P52664
Couldn't load pickup availability
Flexible Battery Cable 2 AWG Red 50'
Item#: P52493
Couldn't load pickup availability
Flexible Battery Cable 2/0 AWG Black 25'
Item#: P52667
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Item#: 92823
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Item#: 94609
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Item#: 92822
Couldn't load pickup availability
Pin Contact 20-16 AWG Size 16
Item#: 29487
Couldn't load pickup availability
Socket Contact 14 AWG Size 16
Item#: 29464
Couldn't load pickup availability
Cable Seal Gray 16-14 AWG 20A 12V 280 Series/WP
Item#: 99256
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Item#: 88445
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Item#: 92823
Couldn't load pickup availability
Product Description
• Stranded copper conductors are soft annealed for improved flexibility• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Technical Specifications
| Item#: | 98410 |
|---|---|
| Cable Gauge | 1/0 |
| Color | Red |
| Volts | 50 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 140 °F |
| Length | 50 ft |
| Crimp Color Code | White |
| Specifications | SAE J1127 |
| Style | Tru-Conduct |
| Type | Battery Cable |
| O.D. | 9/16 " |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 21.5 lb |
