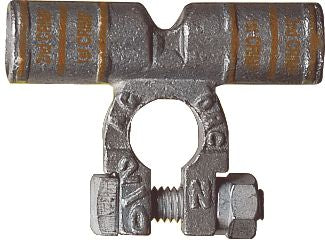

Post-Top Battery Terminal, 2/0 AWG, Flag, Orange, Negative Polarity, Copper, Tin Plated, Long Chamfered Barrel
(Pack of
5)
SKU:99926 Item#: 99926
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.
• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Couldn't load pickup availability
Catalog page#: 18-6
Frequently Bought Together
Conversion Terminal Stud-to-Post Negative
Couldn't load pickup availability
Battery Terminal 4 AWG Straight Barrel Negative
Couldn't load pickup availability
Extreme Duty Battery Cable Butt Connector 2 AWG
Couldn't load pickup availability
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
DT Series Pin Wedgelock 13A 3 Contacts
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 6 AWG Blue 5/16"
Couldn't load pickup availability
Trailer End Plug Connector 7-Way
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Orange
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Blue
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Yellow
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Product Description
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Technical Specifications
| Item#: | 99926 |
|---|---|
| Style | Flag |
| Cable Gauge | 2/0 AWG |
| Color | Orange |
| Polarity | Negative |
| Plating | Tinned |
| Type | Post-Top Battery Terminals |
| UNSPSC #: | 39121454 |
| TAA Compliant: | No |
| Weight: | 1.6 lb |
