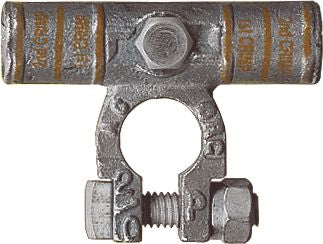

Post-Top Battery Terminal, 2/0 AWG, Flag, Orange, Positive Polarity, Copper, Tin Plated, Long Chamfered Barrel
(Pack of
5)
SKU:99925 Item#: 99925
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.
• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Couldn't load pickup availability
Catalog page#: 18-6
Frequently Bought Together
Heavy-Duty Battery Cable Lug 2 AWG Brown 5/16"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 1/0 AWG Pink 3/8"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 4 AWG Gray 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Pin Contact 14 AWG Size 16
Couldn't load pickup availability
Socket Contact 14 AWG Size 16
Couldn't load pickup availability
Pin Contact 20-16 AWG Size 16
Couldn't load pickup availability
Cross Linked Primary Wire 14 AWG 100' Black
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Red
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Red
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Technical Specifications
| Item#: | 99925 |
|---|---|
| Style | Flag |
| Cable Gauge | 2/0 AWG |
| Color | Orange |
| Polarity | Positive |
| Plating | Tinned |
| Type | Post-Top Battery Terminals |
| UNSPSC #: | 39121454 |
| TAA Compliant: | No |
| Weight: | 1.7 lb |
