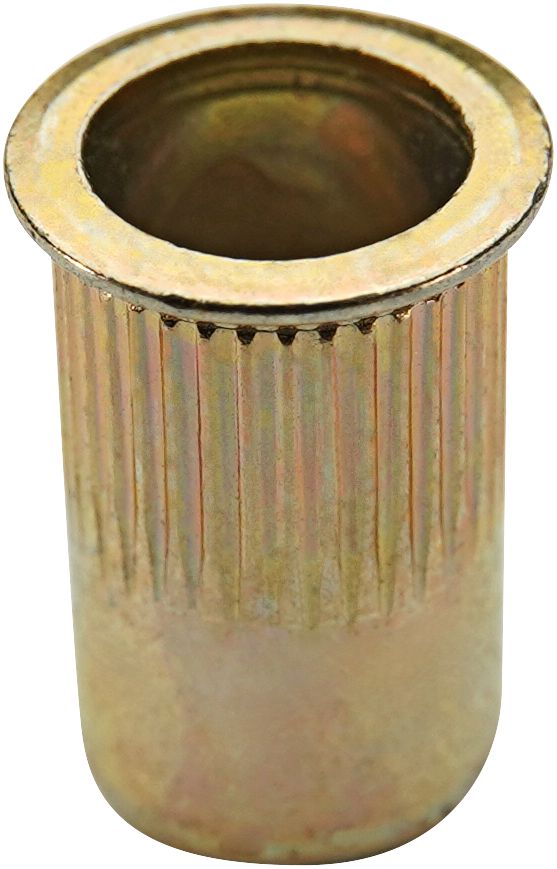

Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Large Flange, #10-32, 0.027 to 0.15" Grip, 0.391" Hole
(Pack of
25)
SKU:1406257 Item#: 1406257
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

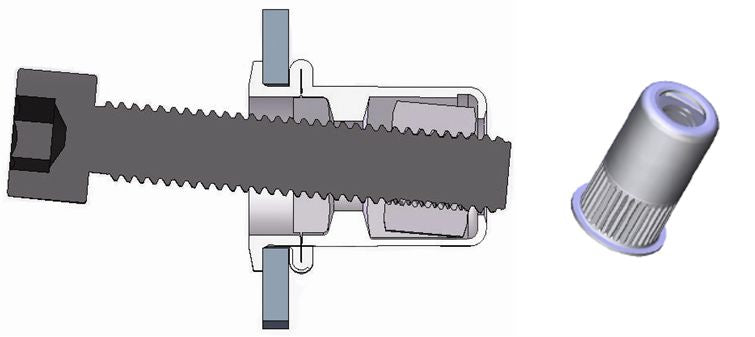

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float #8-32
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float Short #10-24
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M10-1.5
Couldn't load pickup availability
Cross Linked Primary Wire 12 AWG 100' Black
Couldn't load pickup availability
Plastic Covered Primary Wire 16 AWG 100' White
Couldn't load pickup availability
Straight Barrel Battery Terminal 2/0 AWG Negative
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Diamond Grip II Installation Kit #6-32
Couldn't load pickup availability
Diamond Grip II Installation Kit 3/8-16
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-28
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1406257 |
|---|---|
| Diameter | #10 |
| Grip Range | .027 - .150 " |
| Length | 0.720 " |
| Thread Pitch | 32 |
| Hole Size | 0.391 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | #10-32 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
