Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Small Flange, #10-32, 0.027 to 0.15" Grip, 0.391" Hole
(Pack of
25)
SKU:1406259 Item#: 1406259
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

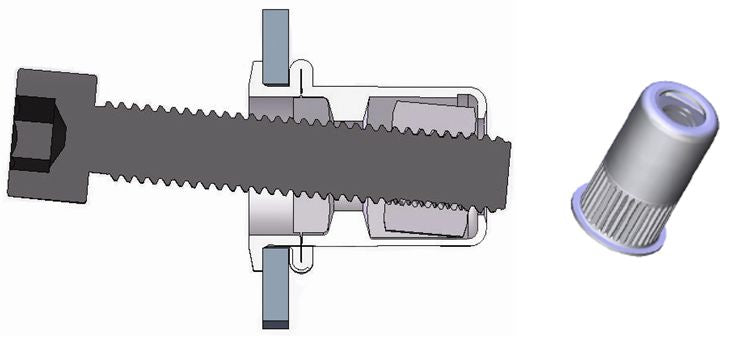

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head M6-1
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head 3/8-16
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M8-1.25
Couldn't load pickup availability
Cross Linked Primary Wire 14 AWG 100' Black
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Red
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Red
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Diamond Grip II Threaded Insert 3/8-16
Couldn't load pickup availability
Diamond Grip II Installation Kit #10-24
Couldn't load pickup availability
Standard Threaded Insert 1/4-20
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1406259 |
|---|---|
| Diameter | #10 |
| Grip Range | .027 - .150 " |
| Length | 0.720 " |
| Thread Pitch | 32 |
| Hole Size | 0.391 |
| Body Type | Knurled |
| Head Style | Small Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | #10-32 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
