Home Fasteners Blind Rivet Nut Insert Riv-Float #8-32
Fasteners

Blind Rivet Nut Insert Riv-Float #8-32
(Pack of 25.0)

Sherex Fastening Solutions

• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

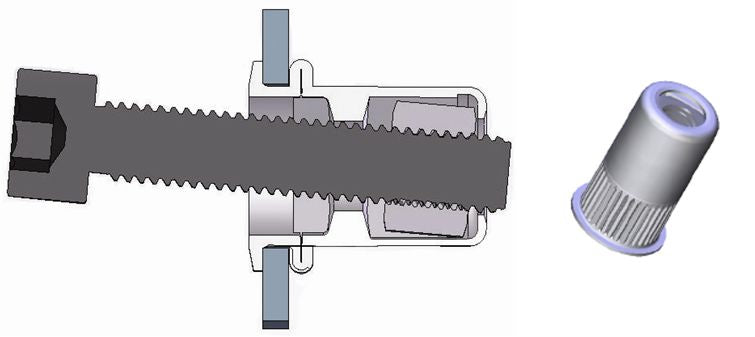

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body

Read More

Catalog page#: 6-20

Frequently Bought Together


Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Blind Rivet Nut Insert Riv-Float Short #8-32

Item#: 1405552

Blind Rivet Nut Insert Thin Wall M5-.8

Item#: 1405855

Blind Rivet Nut Prebulbed Slotted Body Series

Item#: 1593265

Cross Linked Primary Wire 12 AWG 100' Red

Item#: 5545R

Cross Linked Primary Wire 14 AWG 100' White

Item#: 5544W

Cross Linked Primary Wire 18 AWG 100' Black

Item#: 94807

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446

Vision Pro Super

Item#: DY21061040

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

Threaded Insert Installation Tool

Item#: 84220

Diamond Grip II Installation Kit 3/8-16

Item#: 85955

Diamond Grip II Installation Kit #8-32

Item#: 84213

Product Description

• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body

Technical Specifications

Item#: 1405676
Diameter #8
Grip Range 0.027 - 0.130 "
Length 0.720 "
Thread Pitch 32
Hole Size 0.391
Body Type Knurled
Head Style Small Flange
Style Riv-Float
Material Steel
Finish Bright Zinc
Size #8-32
Type Blind Rivet Nut
UNSPSC #: 31162802
TAA Compliant: Yes
