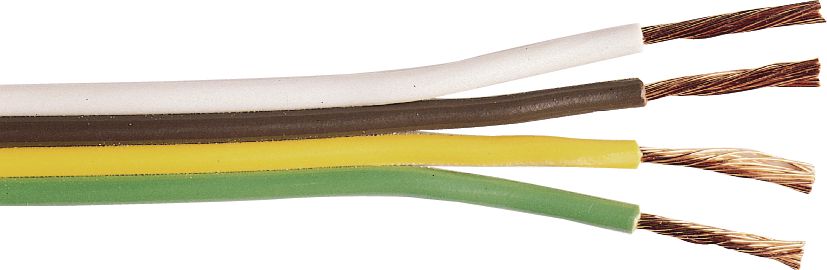

Bonded Parallel Primary Wire, 16 AWG, White, Brown, Yellow, Green, 100' Length, 4 Conductors
(Pack of
1)
• 100 feet per roll
• Three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 176°F (80°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Designed especially for RVs, and boat and utility trailers
NOTE: Primary wire is not recommended in high voltage applications.
Frequently Bought Together
Cable Seal Green 20-18 AWG 20A 12V
Item#: 96904
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 2C 100'
Item#: 5564R
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 2C 100'
Item#: 5563E
Couldn't load pickup availability
Cross Linked Primary Wire 14 AWG 100' Red
Item#: 5544R
Couldn't load pickup availability
Bonded Parallel Primary Wire 14 AWG 2-Conductor
Item#: 1493643
Couldn't load pickup availability
Bonded Parallel Primary Wire 14 AWG 4-Conductor
Item#: 95320
Couldn't load pickup availability
Bonded Parallel Primary Wire 16 AWG 3-Conductor
Item#: 95317
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 2C 100'
Item#: 5564R
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 2C 100'
Item#: 5563E
Couldn't load pickup availability
Cross Linked Primary Wire 14 AWG 100' Red
Item#: 5544R
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Item#: 94610
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Item#: 94613
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Item#: 94611
Couldn't load pickup availability
Product Description
• 100 feet per roll• Three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 176°F (80°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Designed especially for RVs, and boat and utility trailers
NOTE: Primary wire is not recommended in high voltage applications.
Technical Specifications
| Item#: | 95319 |
|---|---|
| Style | Bonded Parallel Primary Wire |
| Wire Gauge | 16 AWG |
| Color | White, Brown, Yellow, Green |
| Number of Conductors | 4 |
| Length | 100 ft |
| Package Type | 1 Roll |
| Temperature Rating | 176 °F |
| Approvals | Conductors Meet SAE J1128, RoHS compliant |
| Type | Wire |
| UNSPSC #: | 26121524 |
| TAA Compliant: | Yes |
| Weight: | 4.91 lb |
