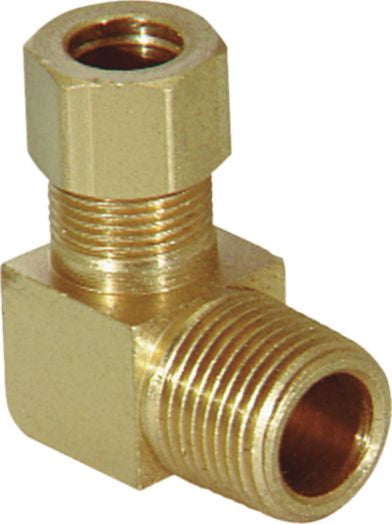

Brass Fitting Compression Selfalign Elbow 90 1/2-14x 1/2
(Pack of
5)
SKU:26720 Item#: 26720
• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Instrumentation, water, air and lubrication systems
Product Description
• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)• Applications: Instrumentation, water, air and lubrication systems
Technical Specifications
| Item#: | 26720 |
|---|---|
| Fitting Type | Compression Selfalign |
| Angle | 90 ° |
| Configuration | Elbow |
| Material | Brass |
| Connection Type A x B | Male NPT x Tube |
| Fitting Dimension A | 1/2-14 |
| Fitting Dimension B | 1/2 " |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
