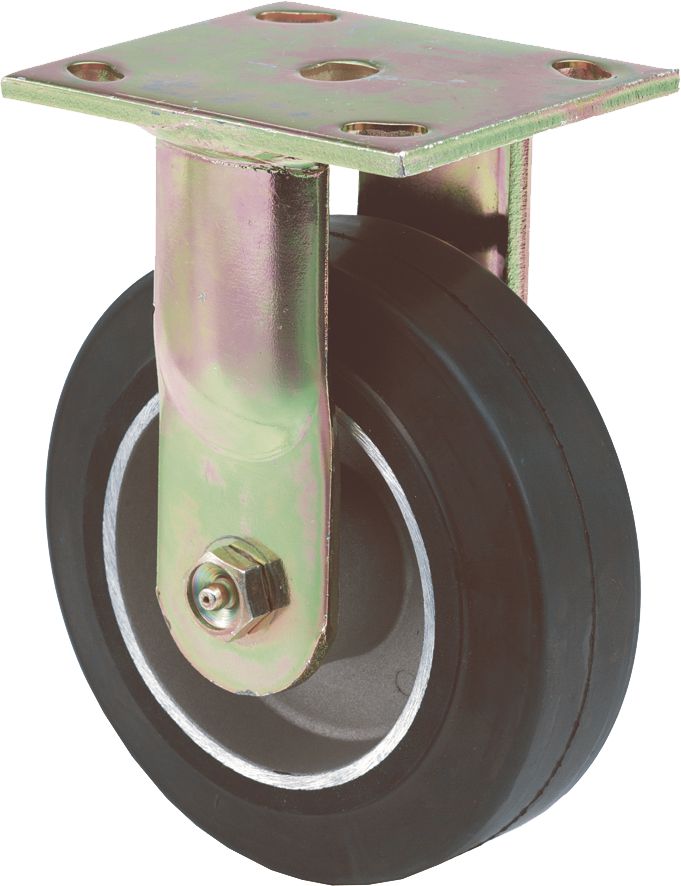

Caster, Rigid, Heavy-Duty, 8" Diameter, 2" Width, 9-1/2" Overall Height, 500 Lb Safe Load, Mold-On Rubber Wheel
(Pack of
1)
Mold-On RubberThis wheel is constructed of a cast aluminum hub to which a soft rubber tread is permanently bonded. It provides quiet operation, absorbs shock and protects floors. Sold with a roller bearing. Tread hardness: 70 to 85 Shore A.
• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Mold-on rubber wheels are molded to an aluminum hub
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Frequently Bought Together
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 19" Long
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/4", 9,500 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
Mold-On RubberThis wheel is constructed of a cast aluminum hub to which a soft rubber tread is permanently bonded. It provides quiet operation, absorbs shock and protects floors. Sold with a roller bearing. Tread hardness: 70 to 85 Shore A.• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Mold-on rubber wheels are molded to an aluminum hub
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Technical Specifications
| Item#: | 10839 |
|---|---|
| Type | Rigid |
| Style | Heavy Duty |
| Wheel Type | Mold-on Rubber |
| Wheel Diameter | 8 " |
| Wheel Width | 2 " |
| Load Rating | 500 lb |
| Top Plate Overall Size | 4 x 4-1/2 " |
| Top Plate Bolt Diameter | 3/8 " |
| Top Plate Hole Spacing | 2-5/8 x 3-5/8 to 3 x 3 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Yellow Zinc Chromate |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 7.12 lb |
