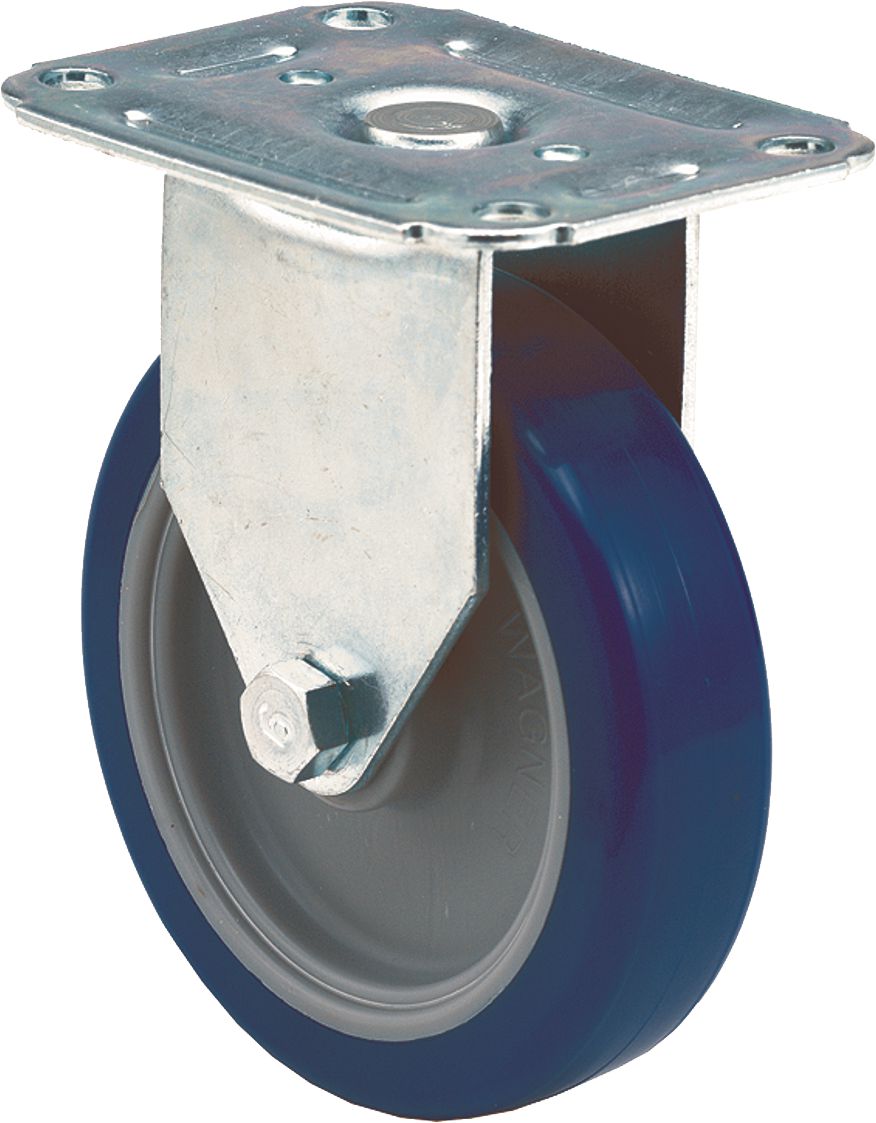

Caster, Rigid, Light-Medium Duty, 3" Diameter, 1-1/4" Width, 3-3/4" Overall Length, 210 Lb Safe Load, Polyurethane Wheel Wheel
(Pack of
1)
SKU:10783 Item#: 10783
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.
• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
• Applications include light- to medium-duty industrial, office and retail carts, dollies, cabinets, racks and other mobile equipment
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
• Applications include light- to medium-duty industrial, office and retail carts, dollies, cabinets, racks and other mobile equipment
Technical Specifications
| Item#: | 10783 |
|---|---|
| Type | Rigid |
| Style | Light-Medium Duty |
| Wheel Type | Polyurethane |
| Wheel Diameter | 3 " |
| Wheel Width | 1-1/4 " |
| Overall Height | 3-3/4 " |
| Load Rating | 210 lb |
| Top Plate Overall Size | 2-3/4 x 3-3/4 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 3 " |
| Top Plate Hole Diameter | 11/32 " |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | No |
| Weight: | 1.35 lb |
