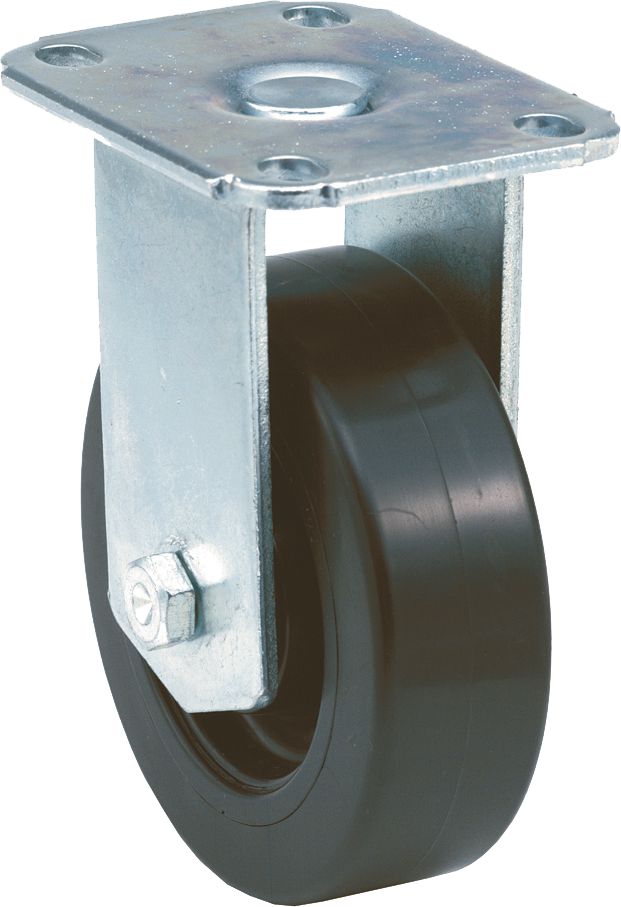

Caster, Rigid, Light-Medium Duty, 5" Diameter, 1-1/4" Width, 6-1/4" Overall Length, 450 Lb Safe Load, Polypropylene Wheel
(Pack of
1)
SKU:10815 Item#: 10815
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.
• Corrosion-resistant zinc plating
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 2-5/8" to 3"
Hole Size: 11/32" x 1/2" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, laundry equipment, general purpose industrial and commercial applications
Product Description
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.• Corrosion-resistant zinc plating
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 2-5/8" to 3"
Hole Size: 11/32" x 1/2" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, laundry equipment, general purpose industrial and commercial applications
Technical Specifications
| Item#: | 10815 |
|---|---|
| Type | Rigid |
| Style | Light-Medium Duty |
| Wheel Type | Polypropylene |
| Wheel Diameter | 5 " |
| Wheel Width | 1-1/4 " |
| Overall Height | 6-1/4 " |
| Load Rating | 450 lb |
| Top Plate Overall Size | 2-3/4 x 3-3/4 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 2-5/8 to 3 " |
| Top Plate Hole Diameter | 11/32 x 1/2 slots " |
| Finish | Zinc Plated |
| Specifications | NSF Certified |
| UNSPSC #: | 31162701 |
| TAA Compliant: | No |
| Weight: | 2.25 lb |
