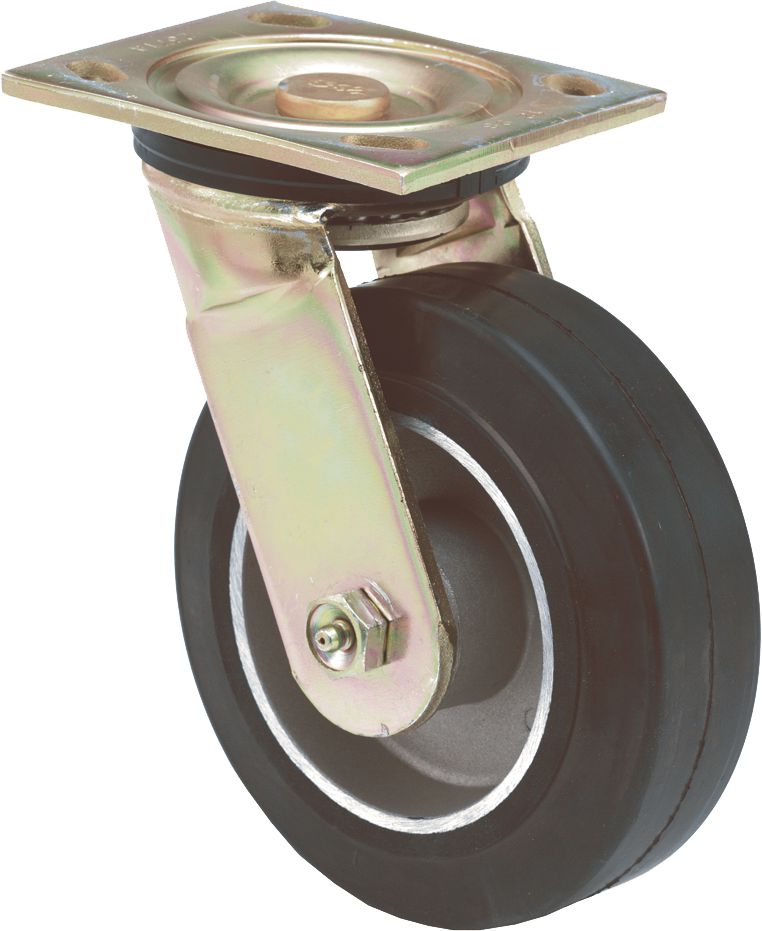

Caster, Swivel, Heavy-Duty, 5" Diameter, 2" Width, 7-1/2" Overall Height, 350 Lb Safe Load, Mold-On Rubber Wheel
(Pack of
1)
Mold-On RubberThis wheel is constructed of a cast aluminum hub to which a soft rubber tread is permanently bonded. It provides quiet operation, absorbs shock and protects floors. Sold with a roller bearing. Tread hardness: 70 to 85 Shore A.
• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Mold-on rubber wheels are molded to an aluminum hub
• Swivel caster has durable, heat-treated, factory lubricated, double ball raceways for high performance
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Frequently Bought Together
Product Description
Mold-On RubberThis wheel is constructed of a cast aluminum hub to which a soft rubber tread is permanently bonded. It provides quiet operation, absorbs shock and protects floors. Sold with a roller bearing. Tread hardness: 70 to 85 Shore A.• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Mold-on rubber wheels are molded to an aluminum hub
• Swivel caster has durable, heat-treated, factory lubricated, double ball raceways for high performance
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Technical Specifications
| Item#: | 10834 |
|---|---|
| Type | Swivel |
| Style | Heavy Duty |
| Wheel Type | Mold-on Rubber |
| Wheel Diameter | 5 " |
| Wheel Width | 2 " |
| Load Rating | 350 lb |
| Top Plate Overall Size | 4 x 4-1/2 " |
| Top Plate Bolt Diameter | 3/8 " |
| Top Plate Hole Spacing | 2-5/8 x 3-5/8 to 3 x 3 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Yellow Zinc Chromate |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 6.0 lb |
